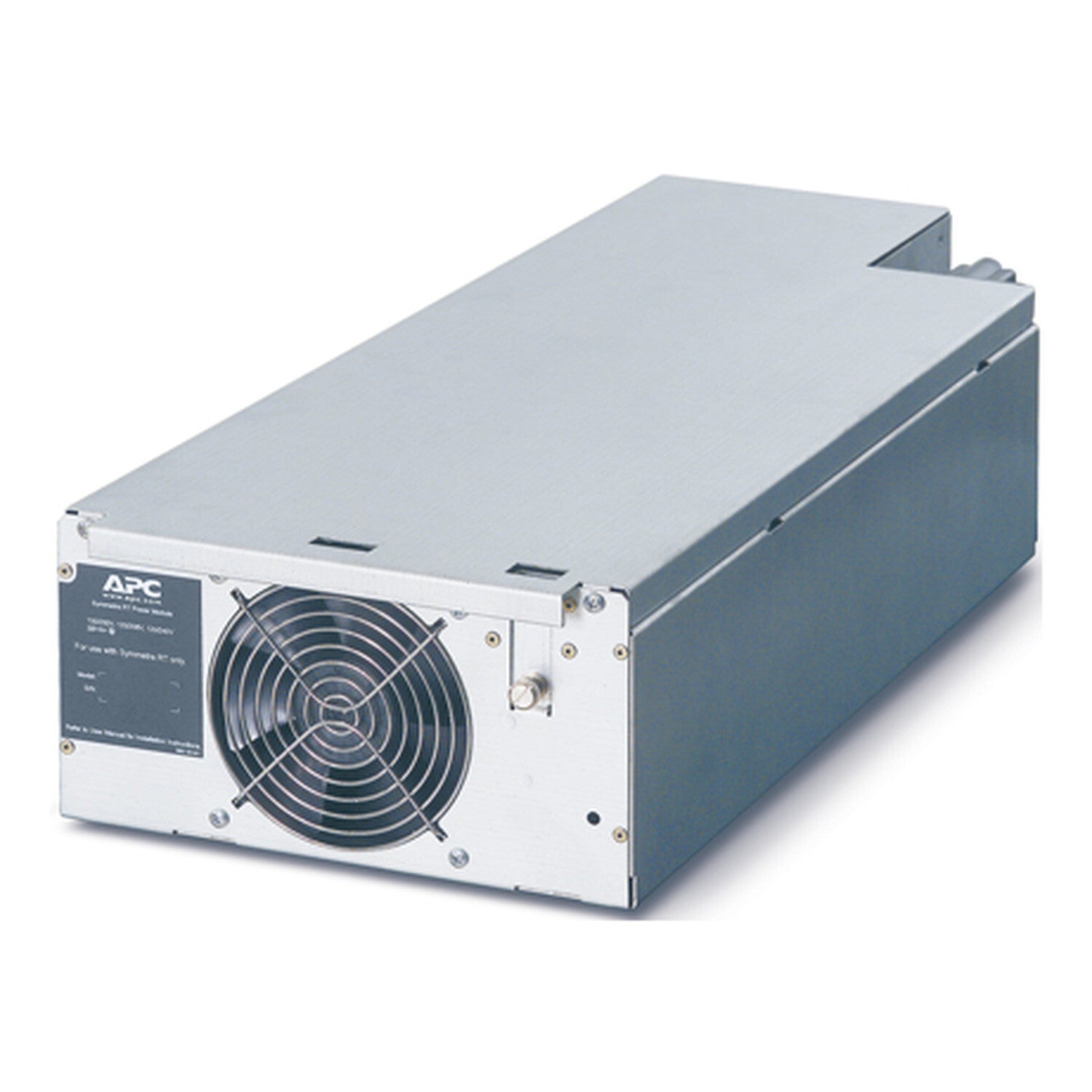

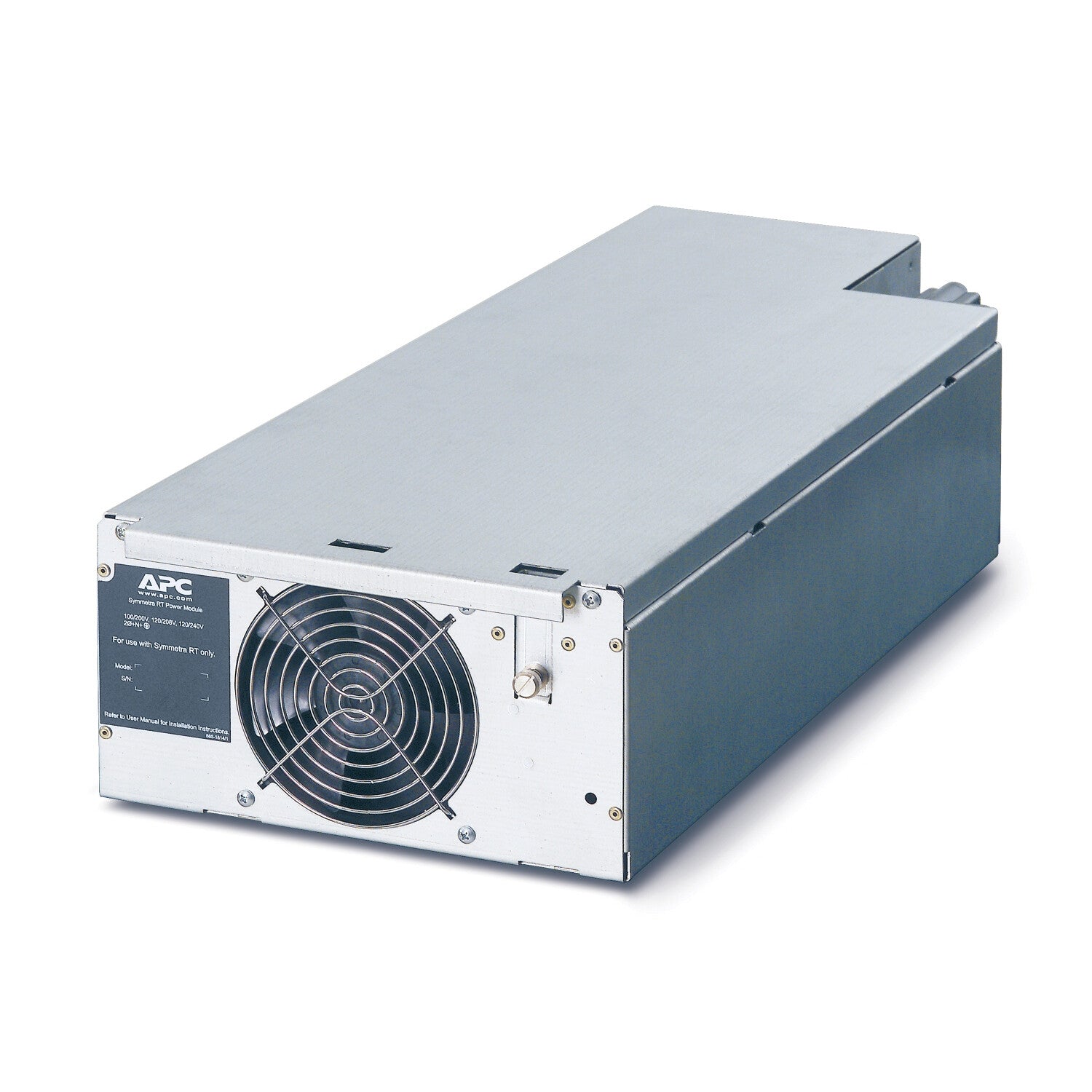

APC Symmetra LX 4kVA Power Module, 220/230/240V
£2,345.99
Couldn't load pickup availability
- Offers high-density, double-conversion on-line power protection
- Supports output voltages of 220V, 230V, and 240V
- It has a power rating of 4000 VA (2800 W)
- Operates at a frequency range of 45-65 Hz
"High density, double-conversion on-line power protection with scalable runtime."
| Features | |
|---|---|
| Rack capacity | 4U |
| Compatibility | APC Symmetra LX |
| Power | |
|---|---|
| Input voltage | 230 / 400 3 phases |
| Output voltage | 230 V |
| DC input voltage | 230 V; 400 V 3 phases |
| Input current (max) | 18 A |
| Output connection type | hard wire 3-wire (H N + E) for 1 zone(s) |
| Output power capacity | 4 kVA |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | C-Tick; CE; GOST; VDE |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
|---|---|
| Width | 250 mm |
| Depth | 565 mm |
| Height | 150 mm |
| Weight | 15 kg |
| Technical details | |
|---|---|
| Preferred mounting position | no preference |
| Mounting | front |
| Packaging recycled materials | Recycled cardboard |
| Packaging without single use plastic | No |
| Take-back system | No |
| SCIP number | a208548b-09a8-4680-97a6-ad17b46807b1 |
| Sustainable packaging | No |
| Logistics data | |
|---|---|
| Customs product code (TARIC) | 8504909000 |
| Total carbon footprint (kg of CO2e) | 3133.3589010529254 |
| Harmonized System (HS) code | 85079080 |
