APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 230V, 6x C13+2x C19 IEC, SmartSlot, Extended runtime, W/ rail kit, W/O Lithium-ion external battery
Couldn't load pickup availability
- 2200VA/1980W double-conversion on-line pure sine wave rackmount 2U UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

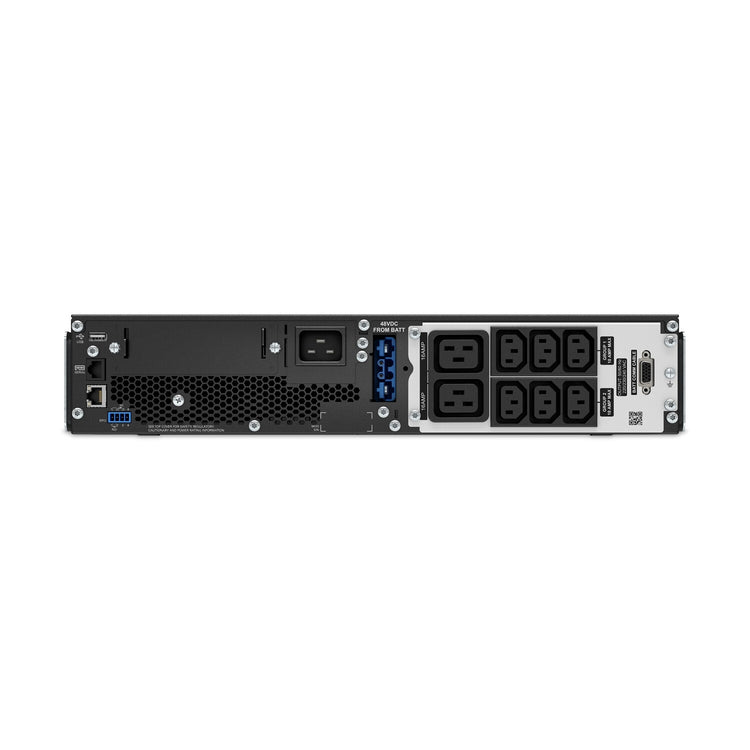

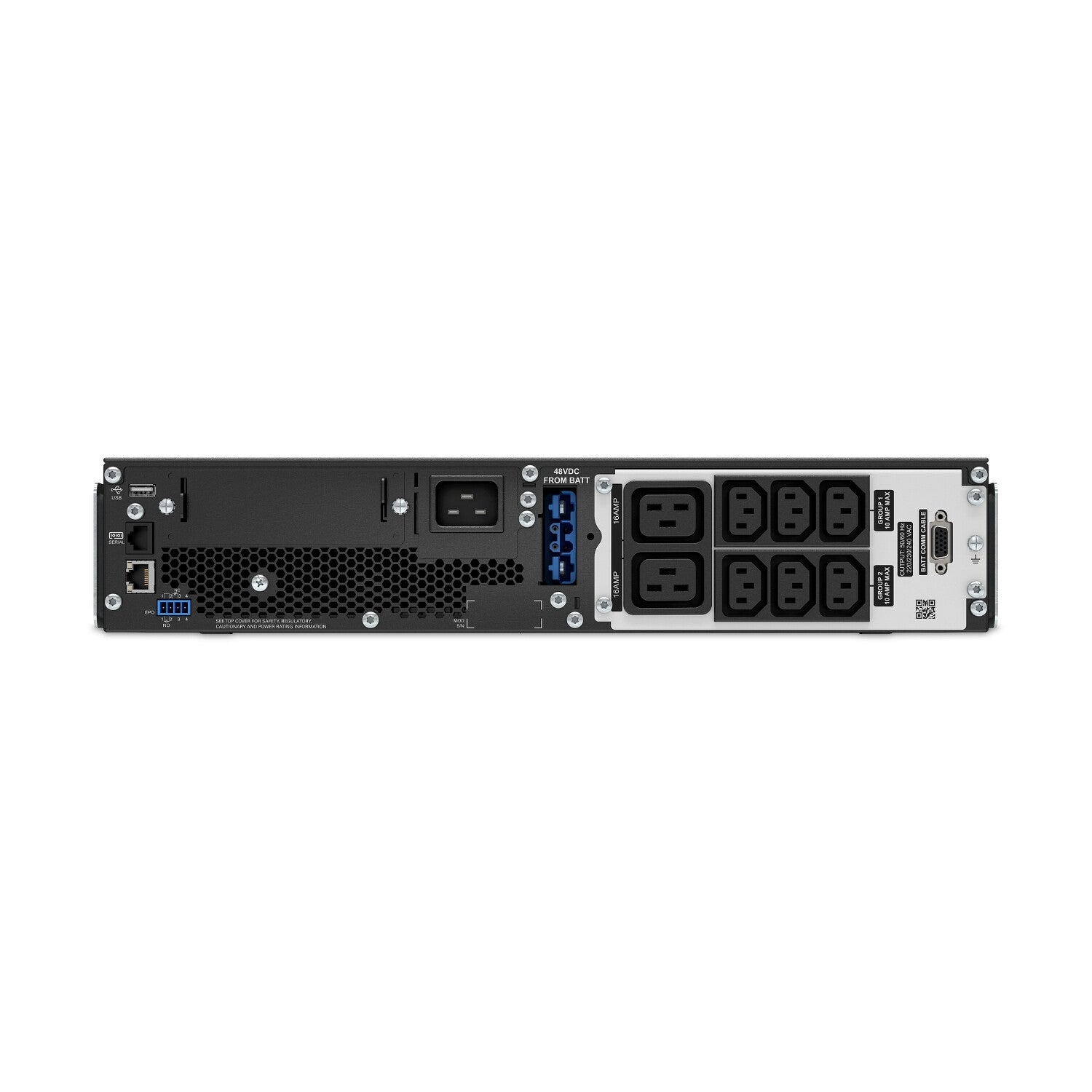

This APC Smart-UPS SRT2200UXI-LI is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty, and has to be used with an external Lithium-ion battery sold separately.
| Features | |
|---|---|
| Noise level | 50 dB |
| Input current Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Heat dissipation | 317 BTU/h |
| Surge energy rating | 432 J |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 230 V |
| Input operation voltage (min) | 50 V |
| Waveform | Sine |
| Output power | 1980 W |
| Output power capacity | 2.2 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| SmartSlot | Yes |
| Emergency Power Off (EPO) connector | Yes |
| Serial interface type | RJ-45 |
| Serial interface | Yes |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| Cable length | 1.8 m |
| Rack capacity | 2U |
| Product colour | Black |
| Form factor | Rackmount |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15240 m |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Certificates | |
|---|---|
| Compliance certificates | CE, EAC, REACH, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 22 kg |
| Height | 432 mm |
| Depth | 508 mm |
| Width | 85 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 29.6 kg |
| Package height | 246 mm |
| Package depth | 594 mm |
| Package width | 749 mm |
| Logistics data | |
|---|---|
| Warranty period | 5 year(s) |
| Total carbon footprint (kg of CO2e) | 3558.01 |
