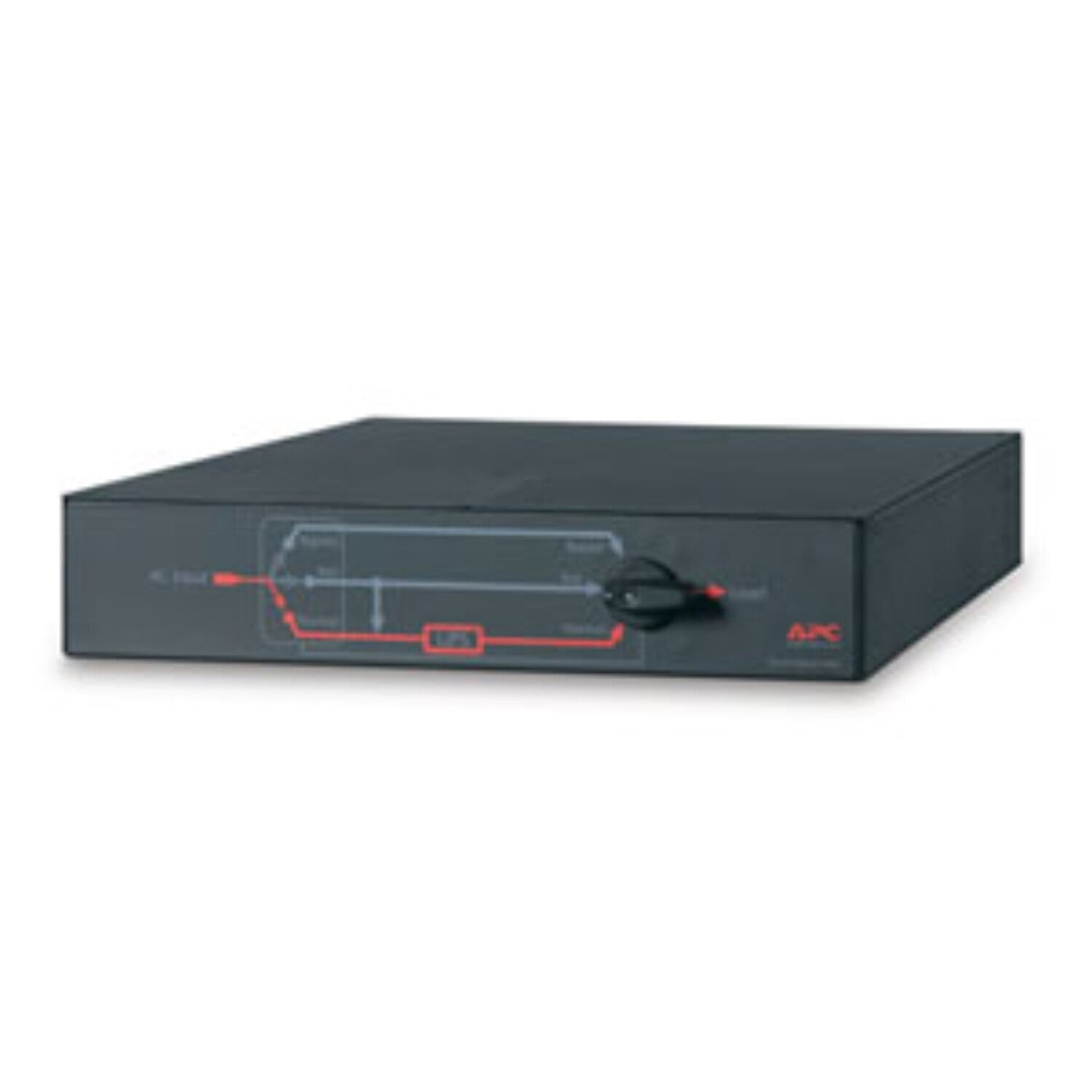

APC Service Bypass Panel- 100-240V; 30A; BBM; Hardwire Input/Output
£717.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £239.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Supports up to 30A, suitable for critical equipment
- Compatible with various input and output voltages
- Features a bypass switch for safe maintenance
- Ensures secure and stable hardwired connections
The APC Service Bypass Panel supports output voltage of 100V, 120V,and 230V. It features a 2U rack-mount design and is rack mountable. It includes rack mounting brackets and a user manual.
Specifications
Features
| Rack capacity | 2U |
|---|---|
| Country of origin | China |
Ports & interfaces
| Output connections | hard wire 3-wire (H N + E) for 1 zone(s) |
|---|
Show all 18 specificationsShow fewer specifications
Power
| Maximum current | 24 A |
|---|---|
| AC output voltage | 100 / 120 / 230 V |
| AC input voltage | 100 / 120 / 230 V |
Certificates
| Compliance certificates | RoHS, REACH, WEEE |
|---|---|
| Certification | CSA,EN 60950,GOST,IEC 60950,UL 1778,VDE |
Operational conditions
| Operating temperature (T-T) | -20 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Width | 432 mm |
|---|---|
| Depth | 635 mm |
| Height | 89 mm |
| Weight | 12 kg |
Technical details
| Preferred mounting position | no preference |
|---|---|
| Packaging without single use plastic | No |
| Take-back system | No |
| Sustainable packaging | No |
