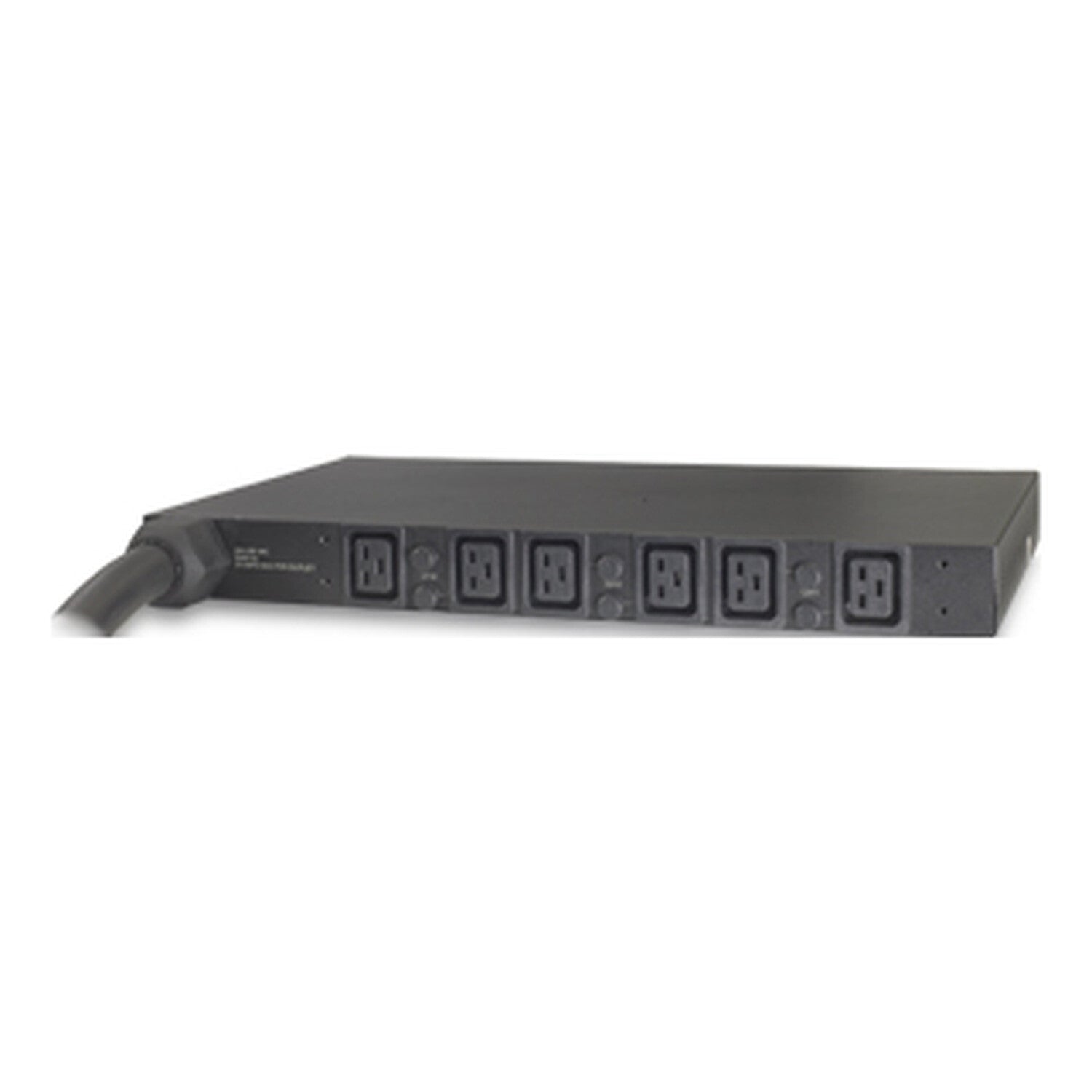

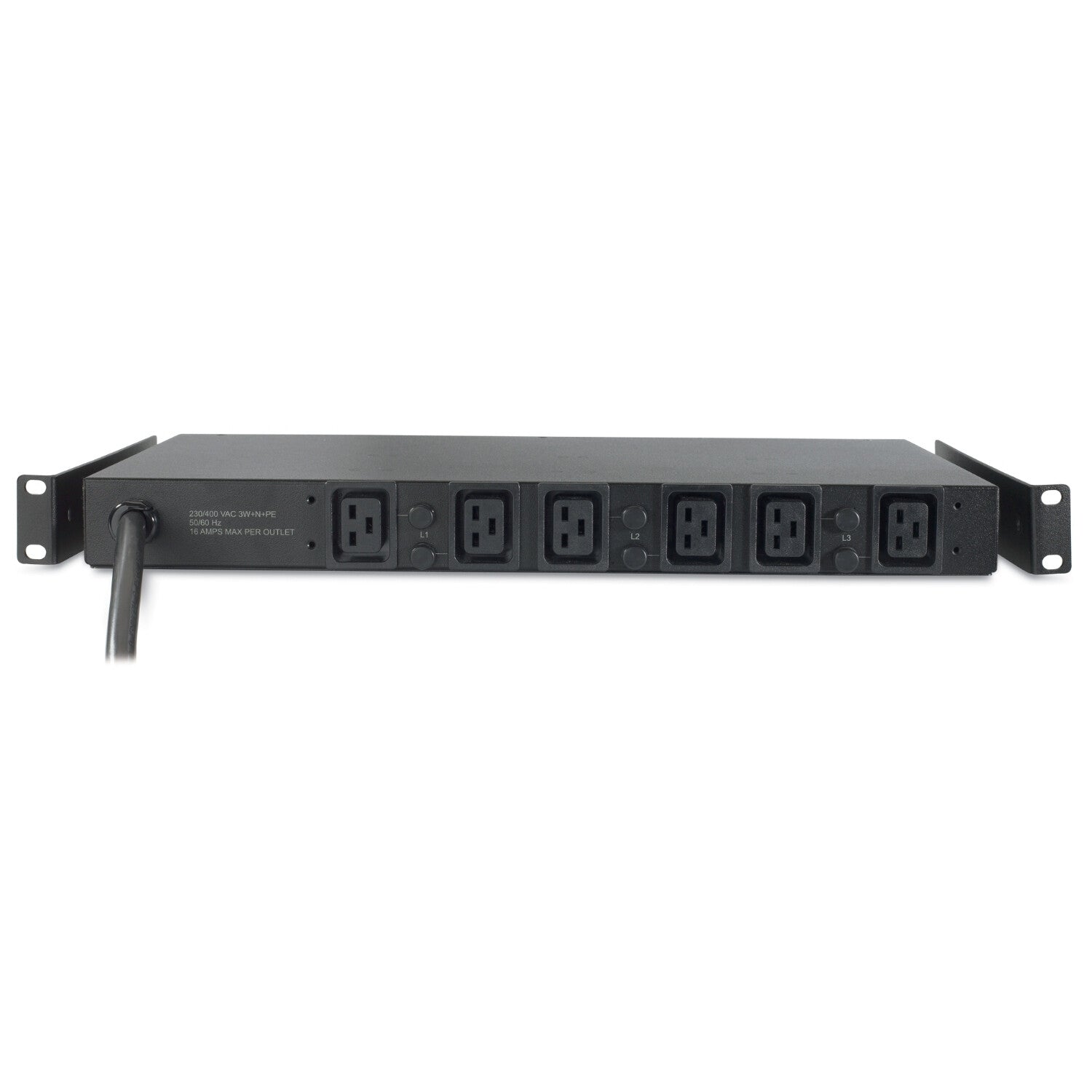

APC Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19
£747.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £249.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Provides remote management of the UPS over the network.

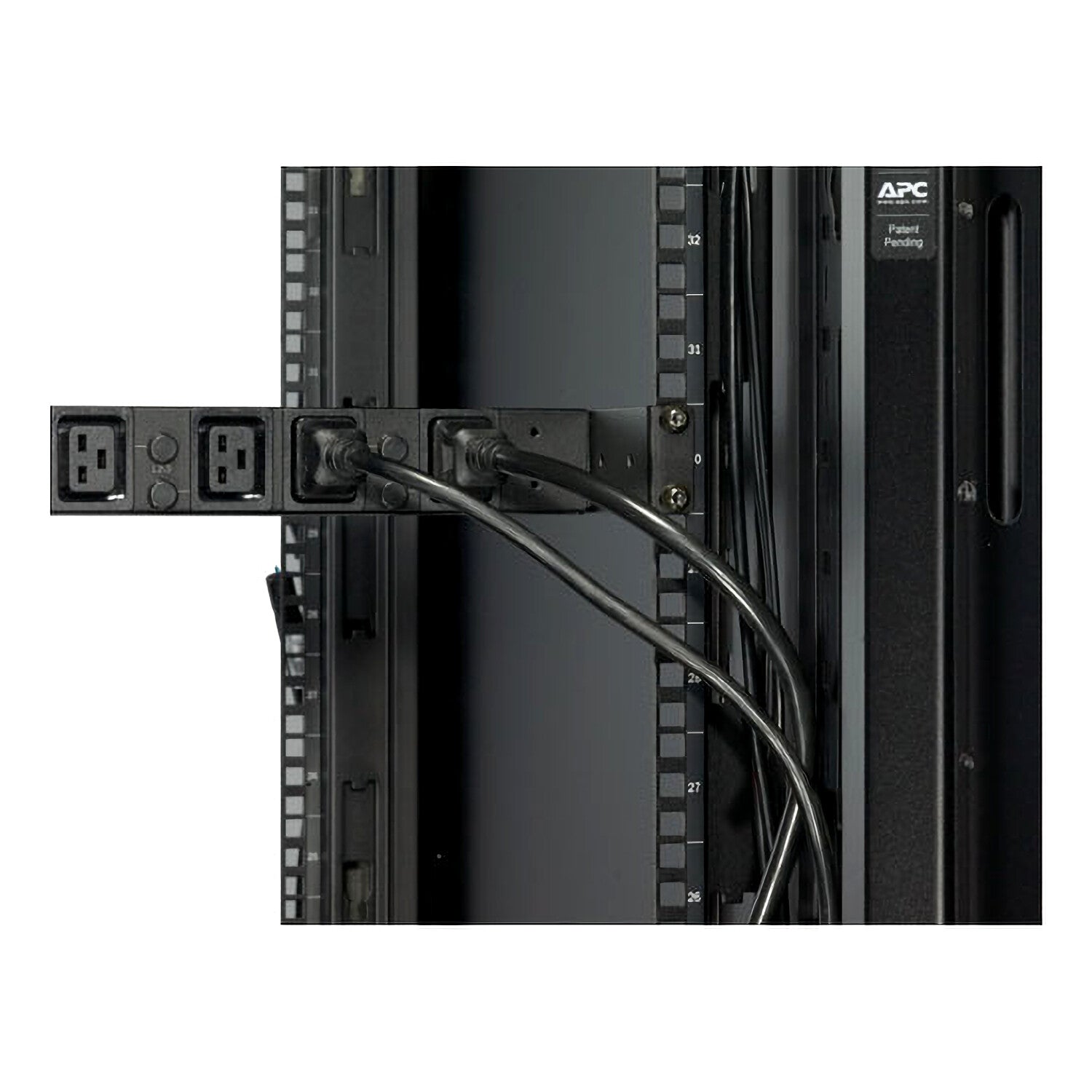

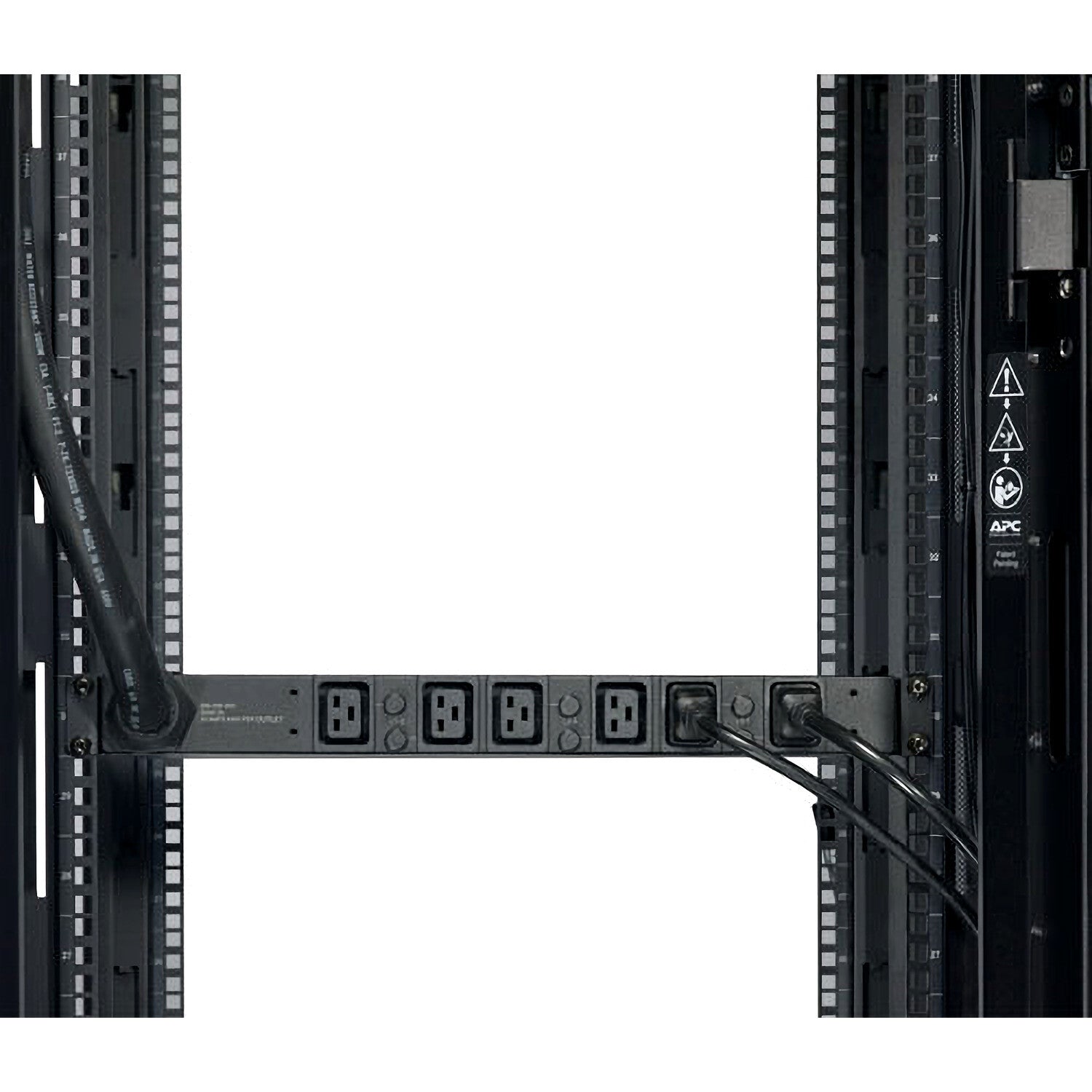

- 1 U design for efficient use of rack space
- Supports up to 50A, 208V power distribution
- Includes toolless mounting kit for quick setup

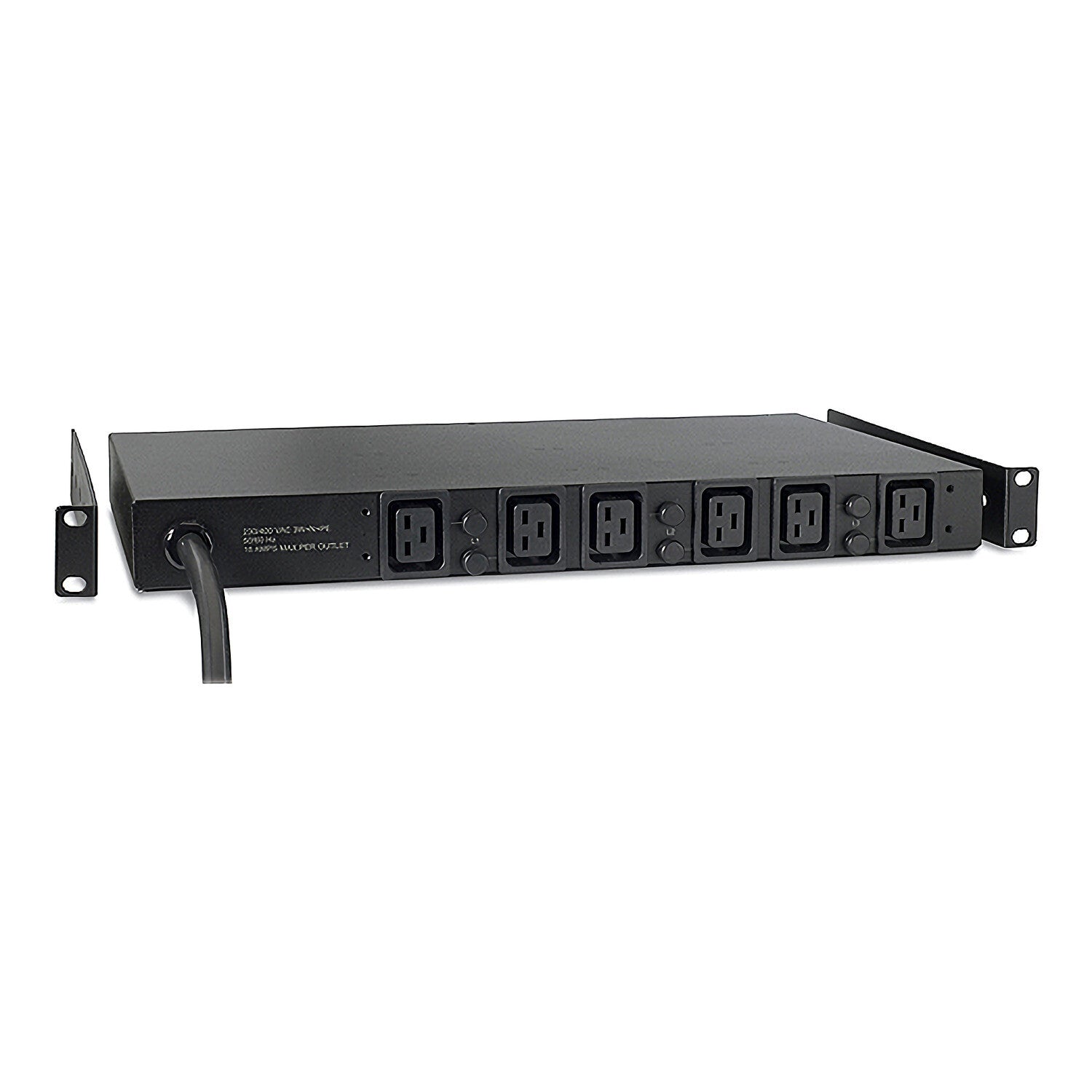

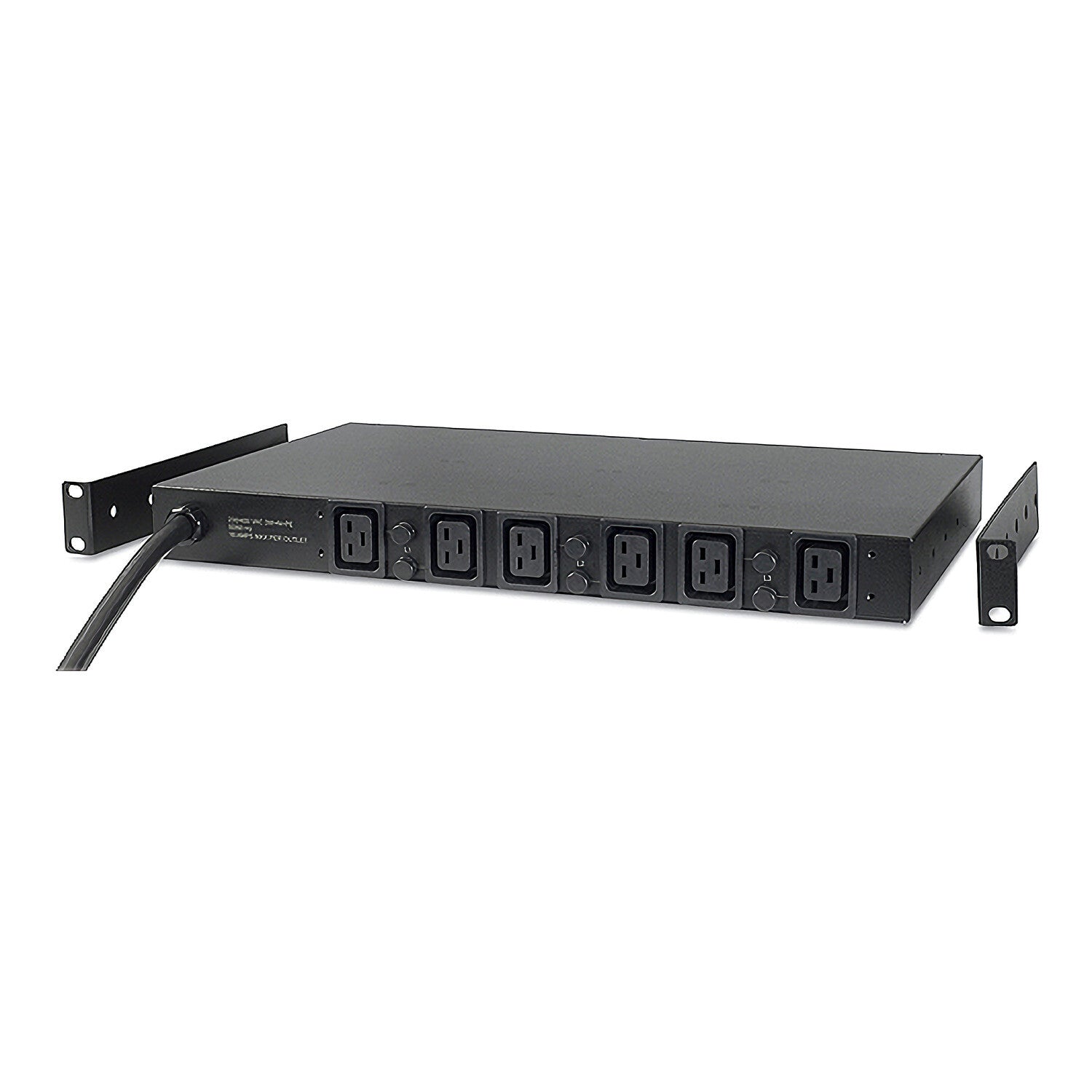

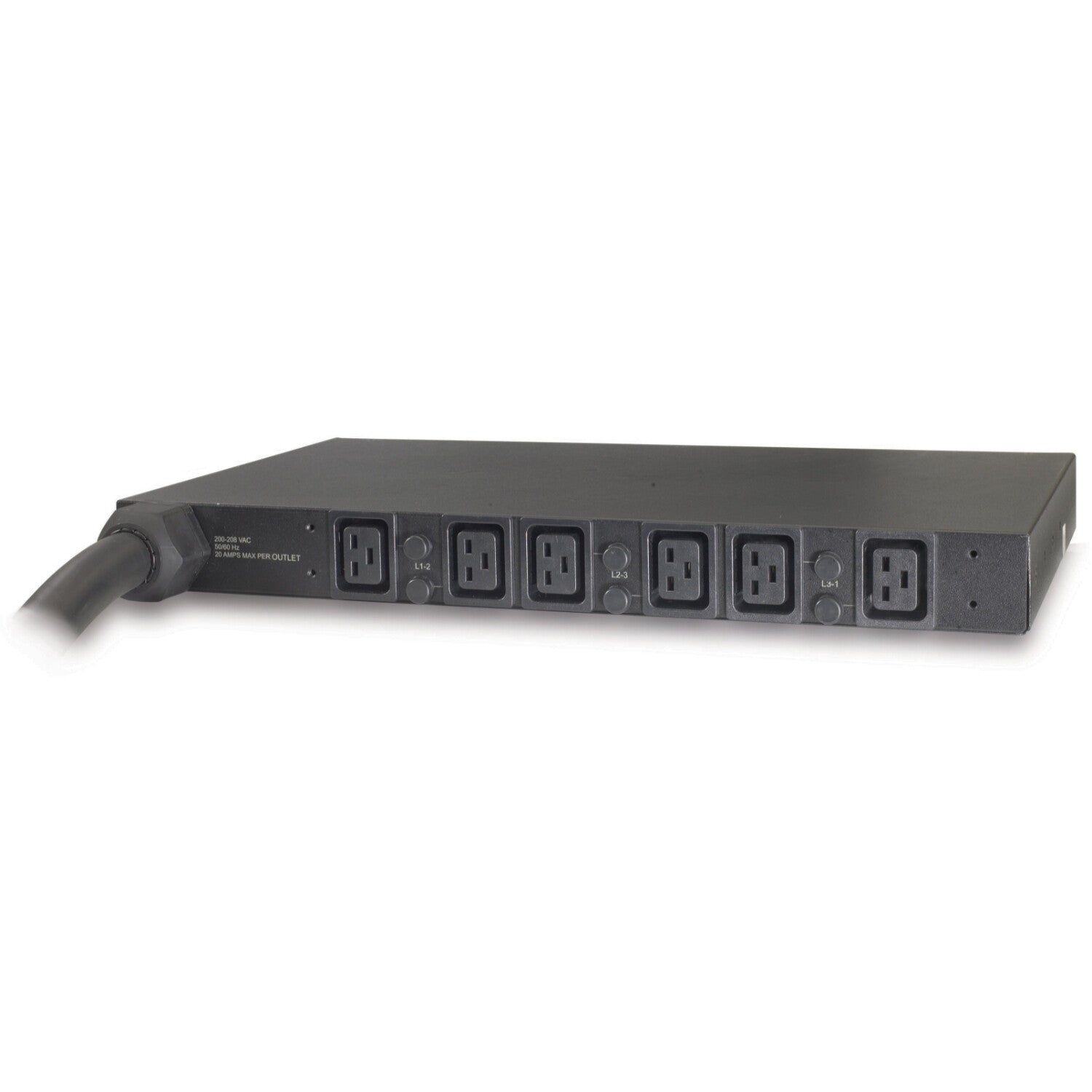

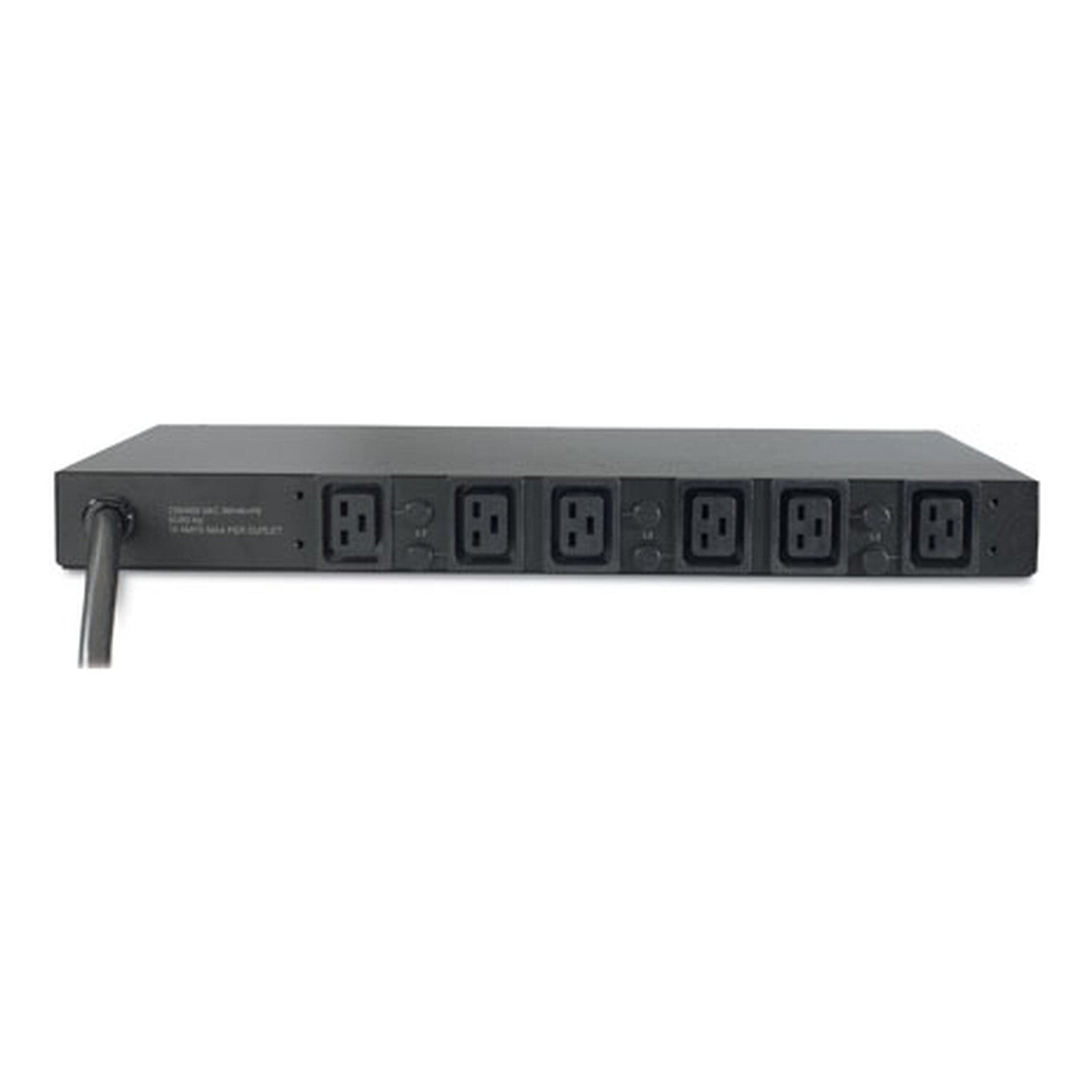

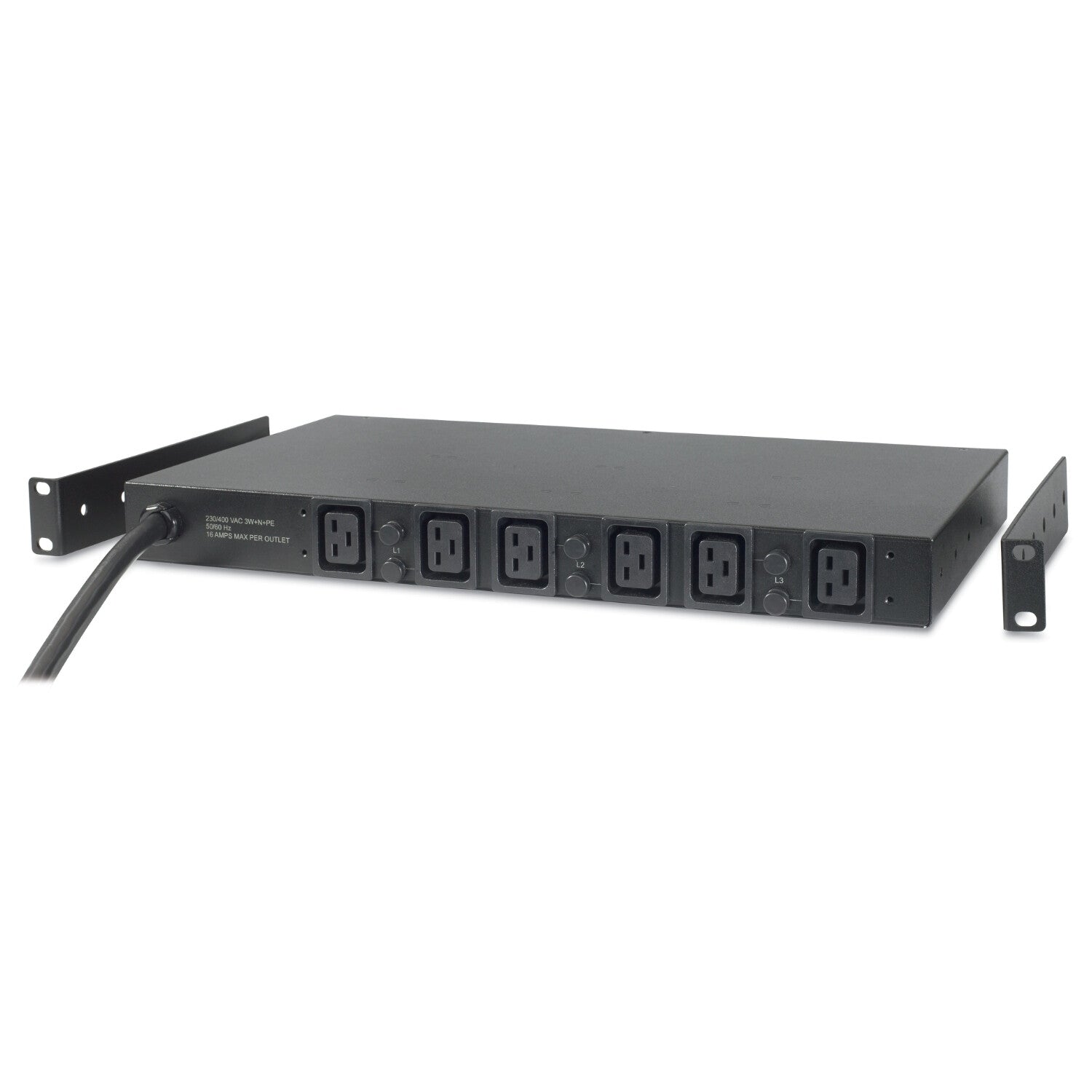

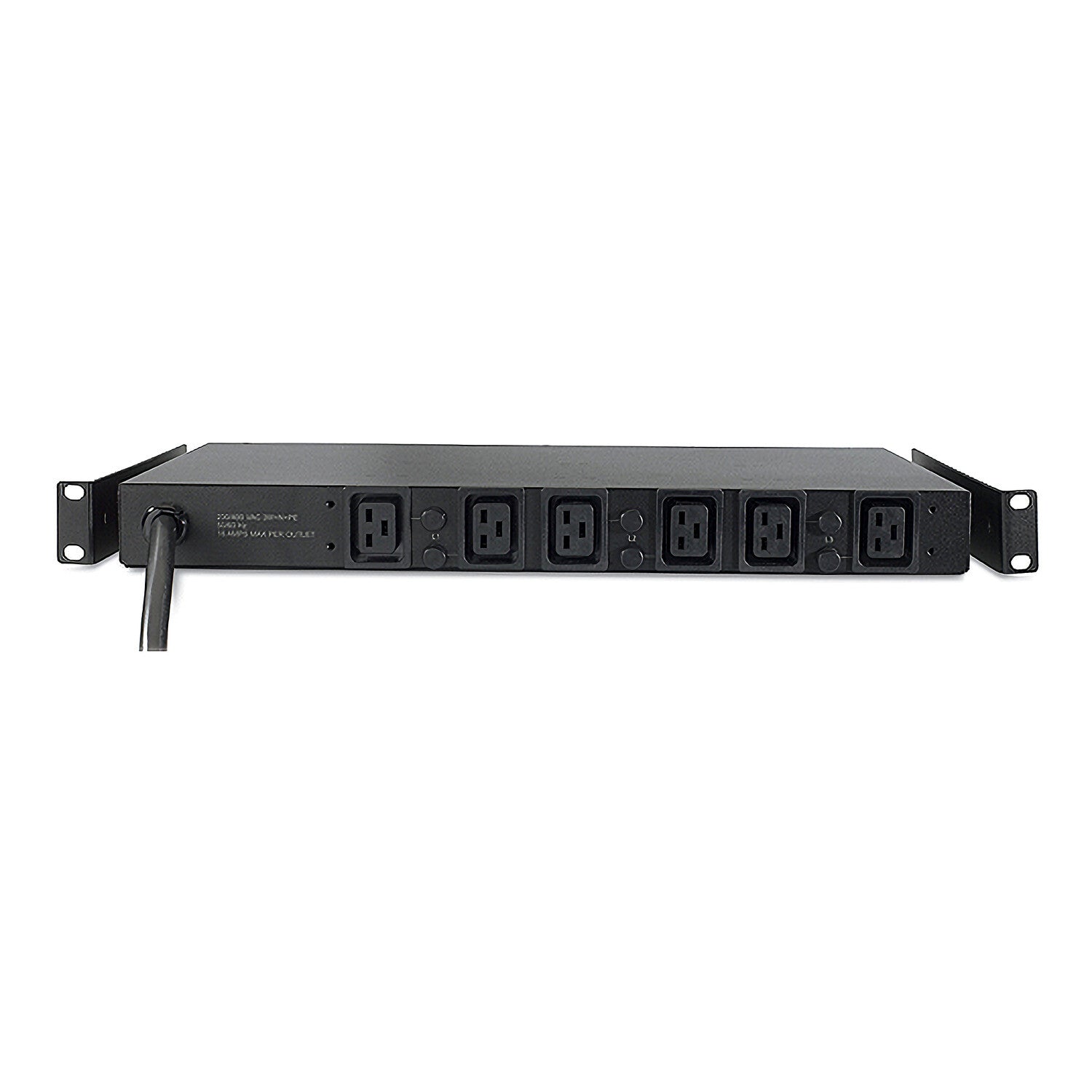

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.
Specifications
Design
| Rack capacity | 1U |
|---|---|
| Product colour | Black |
Ports & interfaces
| Input connection type | Hubbell CS8365C |
|---|---|
| Output connections | (6) IEC 320 C19 |
Show all 28 specificationsShow fewer specifications
Features
| Cable length | 2.4 m |
|---|
Power
| Nominal input voltage | 208 3 phases |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Output voltage | 200 V; 208 V |
| Number of phases | 3 |
| Maximum input current per phase | 50 A |
| Maximum total current draw per phase | 40 A |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | cUL listed; METI Denan; UL listed |
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 437 mm |
|---|---|
| Depth | 254 mm |
| Height | 44 mm |
| Weight | 7.98 kg |
Technical details
| Preferred mounting position | no preference |
|---|---|
| Halogen free | No |
| Packaging recycled materials | Recycled cardboard |
| Packaging without single use plastic | No |
| Take-back system | No |
| Sustainable packaging | No |
