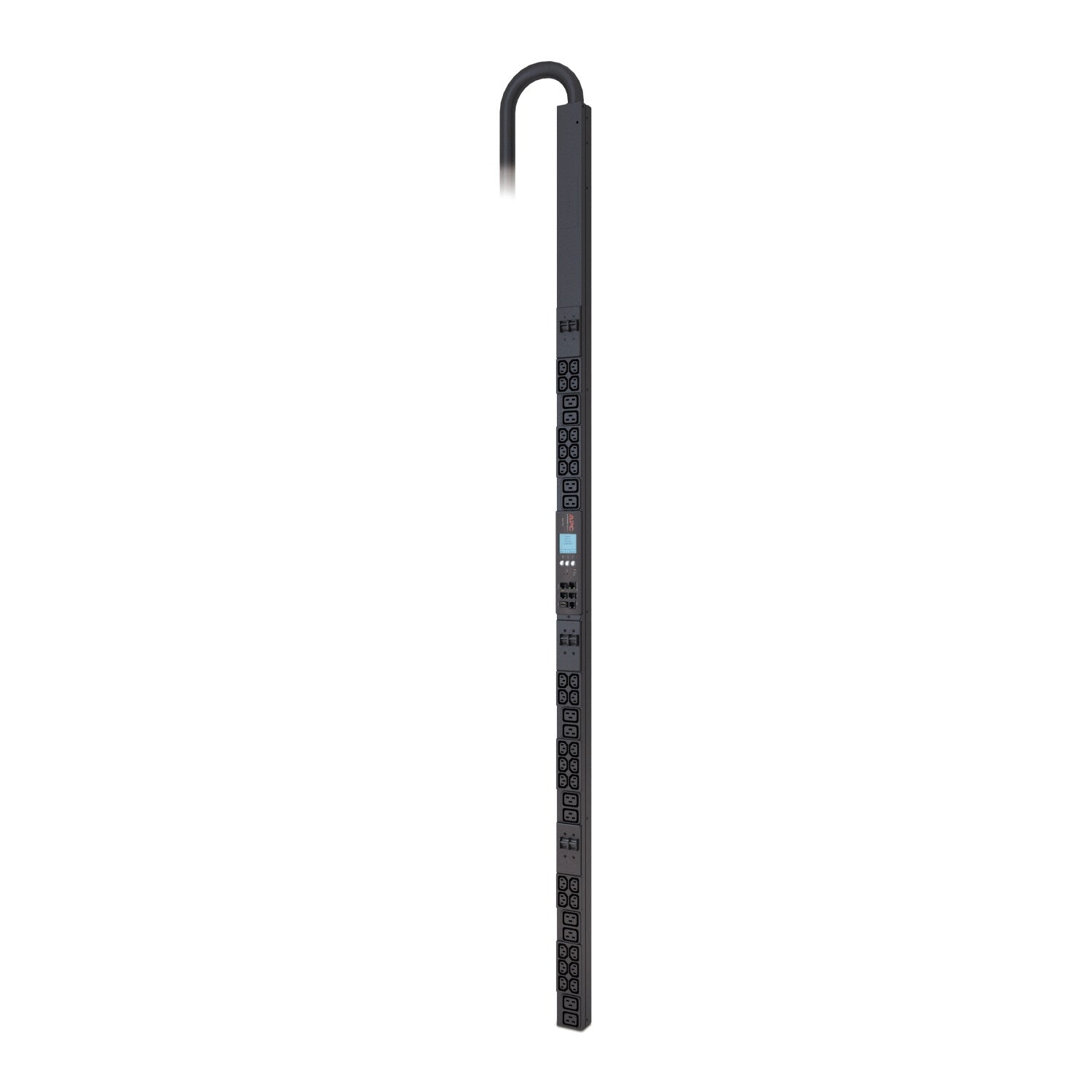

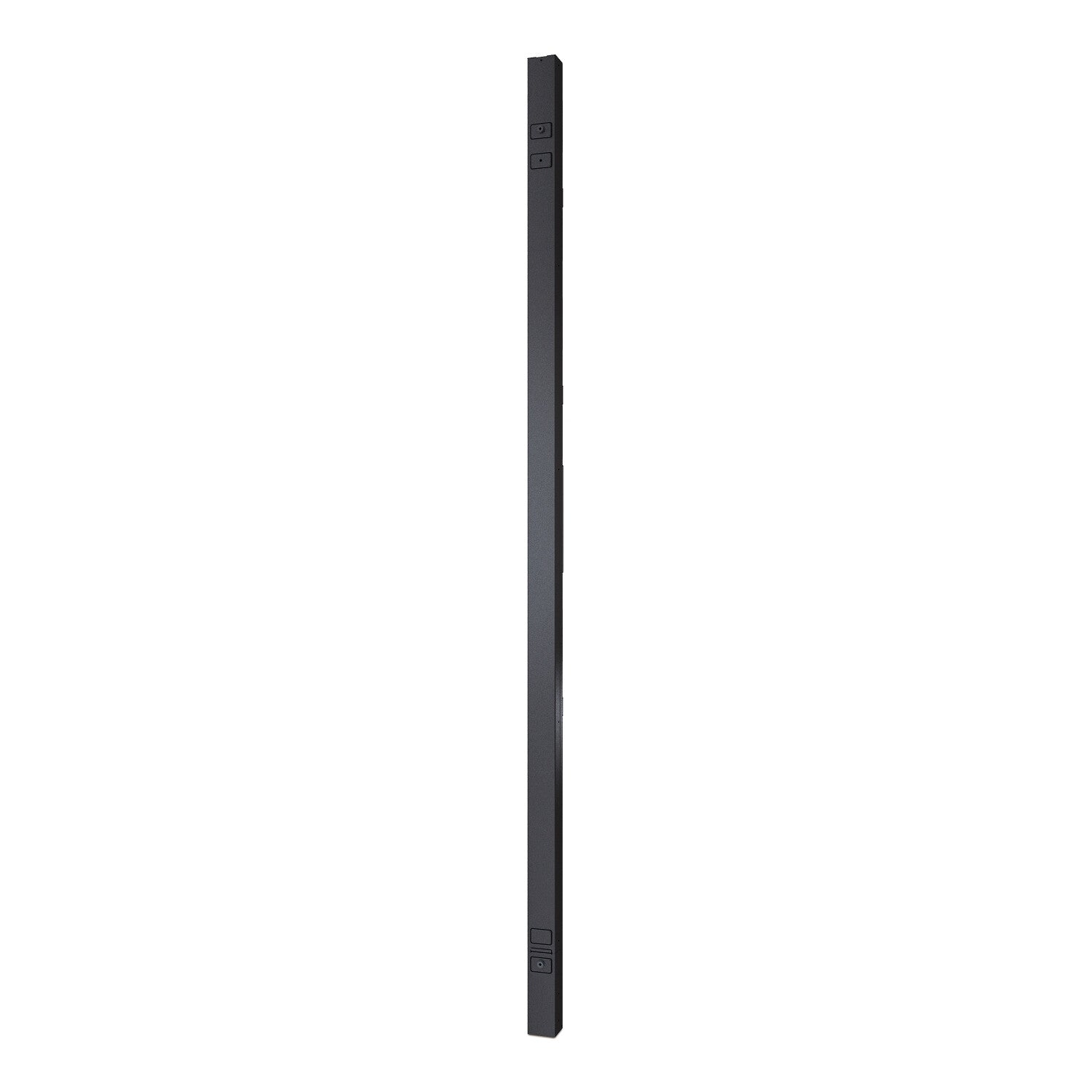

APC Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £720.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 1-Year Secure Network Management Card subscription included
- Ideal for colocation, large or remote data center operators
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Stay on top of potential circuit overloads with user-defined alarms
- Real-time remote monitoring and management through EcoStruxure IT & Secure NMC3
- Zero U toolless installation
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
Specifications
Design
| PDU types | Metered |
|---|---|
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |

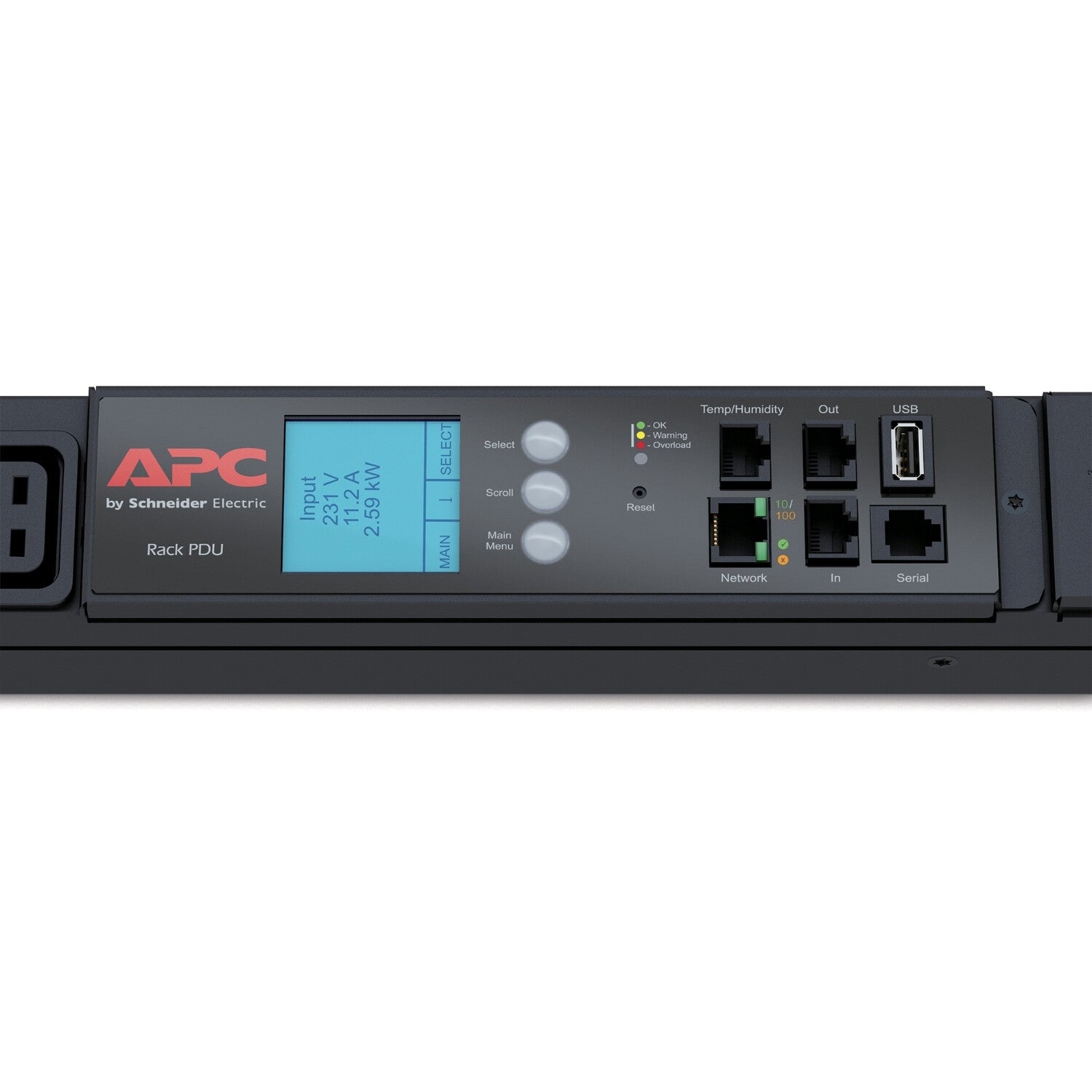

| Display | LCD |
Ports & interfaces
| AC outlets quantity | 42 AC outlet(s) |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |

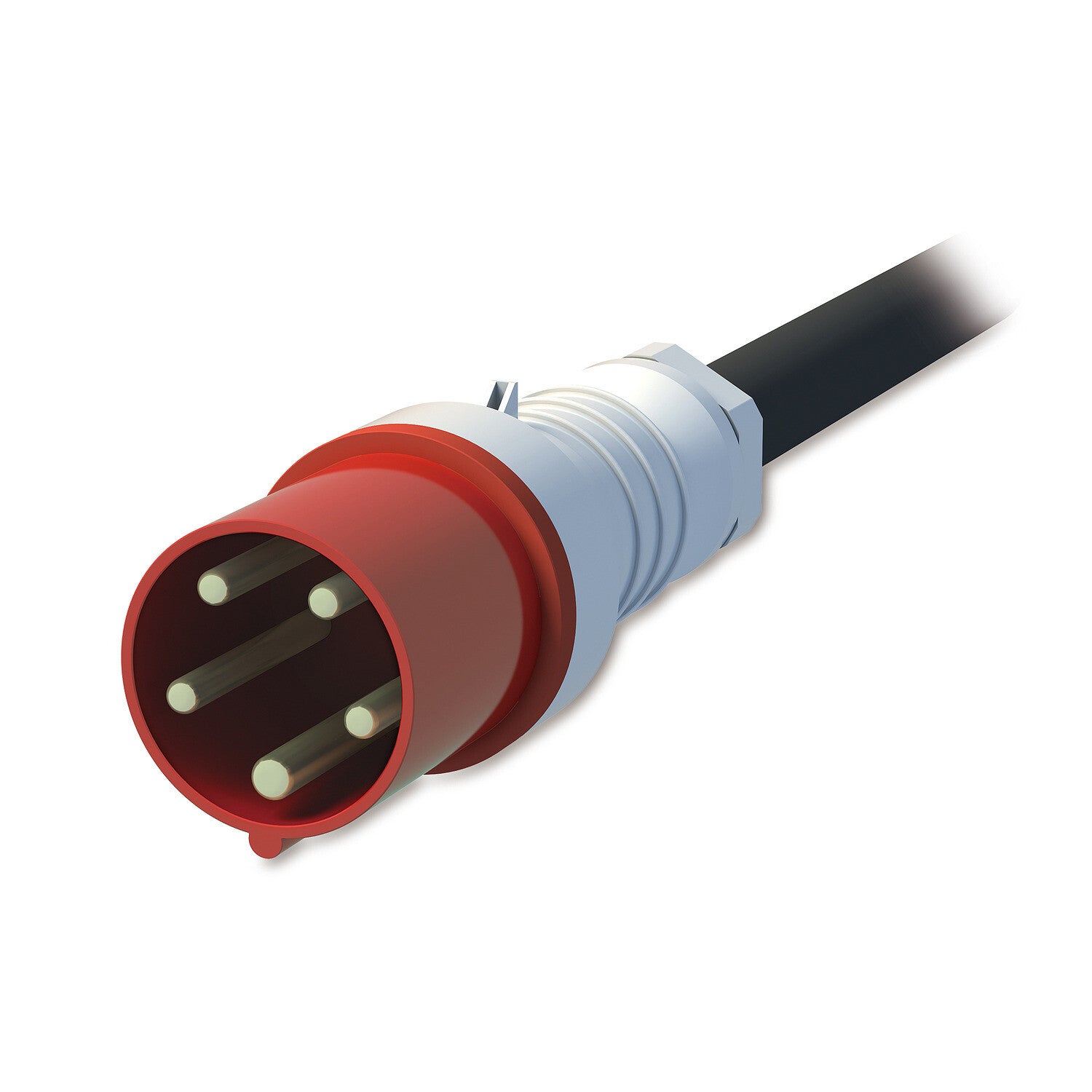

| Input connection type | IEC 60309 60 A 3P + N + E |
Show all 39 specificationsShow fewer specifications
Features
| Cable length | 1.82 m |
|---|
Power
| Nominal input voltage | 400 3 phases |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 40 A |
| Nominal output voltage | 240 V |
| Output voltage | 240 V |
| Load capacity | 23000 VA |
| Number of phases | 3 |
| Maximum input current per phase | 40 A |
| Maximum total current draw per phase | 32 A |
| Power protection features | Overload |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | cUL listed; UL listed; VCCI class A |
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Weight & dimensions
| Width | 56 mm |
|---|---|
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 10.1 kg |
Technical details
| Preferred mounting position | no preference |
|---|---|
| Halogen free | No |
| Packaging recycled materials | Recycled cardboard |
| Removable battery | Yes |
| Packaging without single use plastic | No |
| Take-back system | No |
| Sustainable packaging | No |
