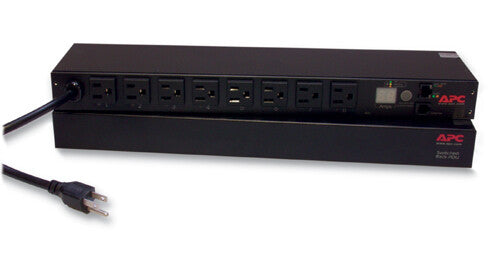

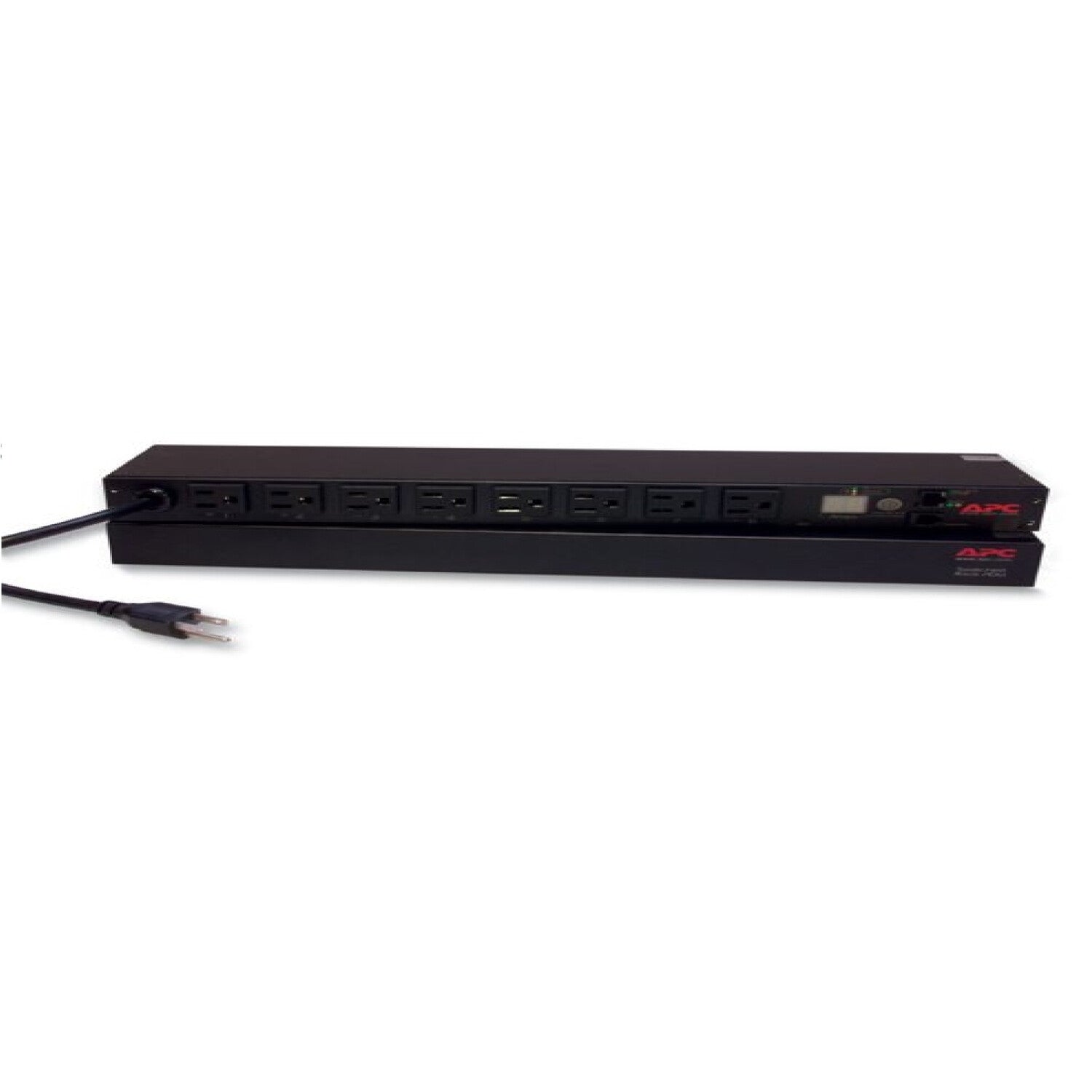

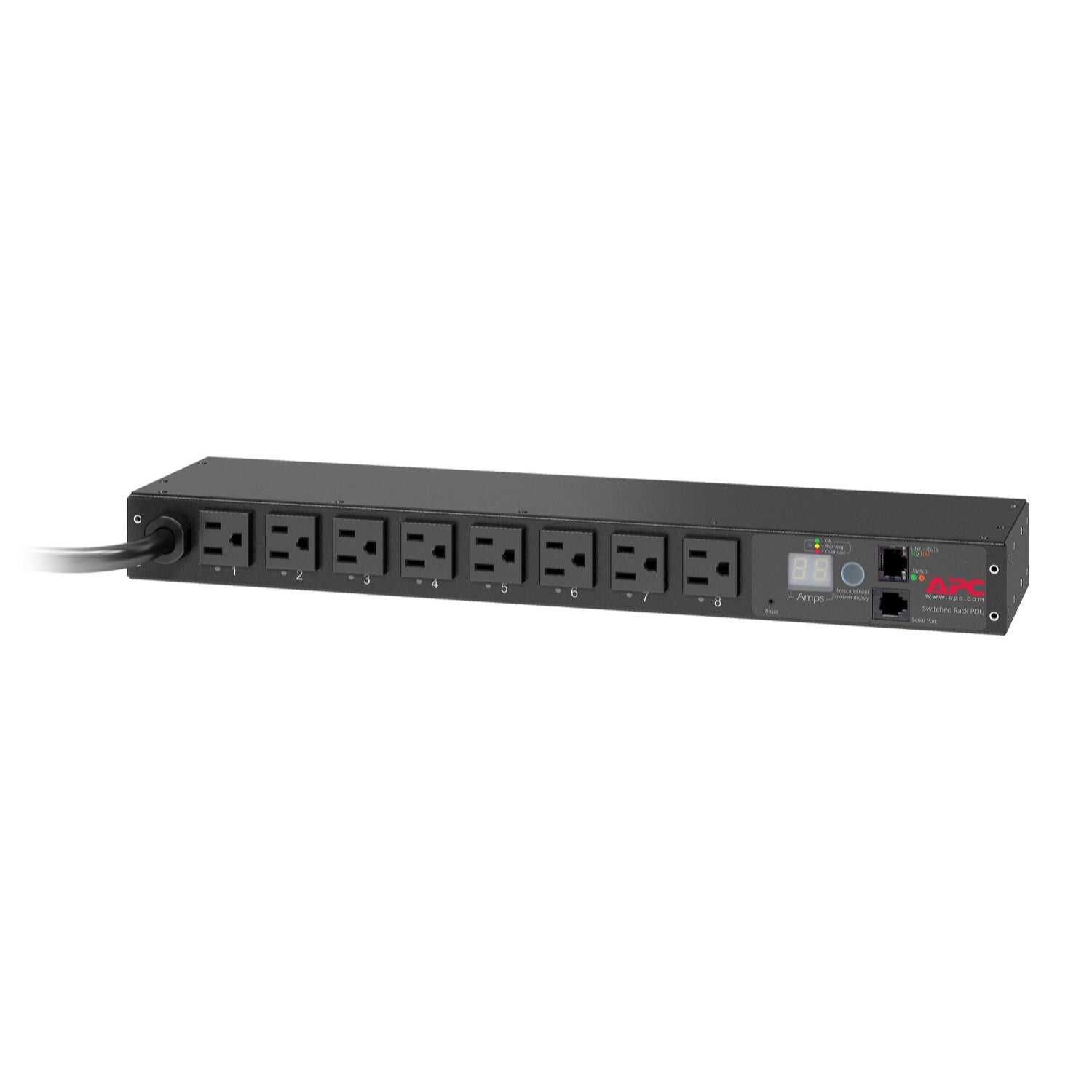

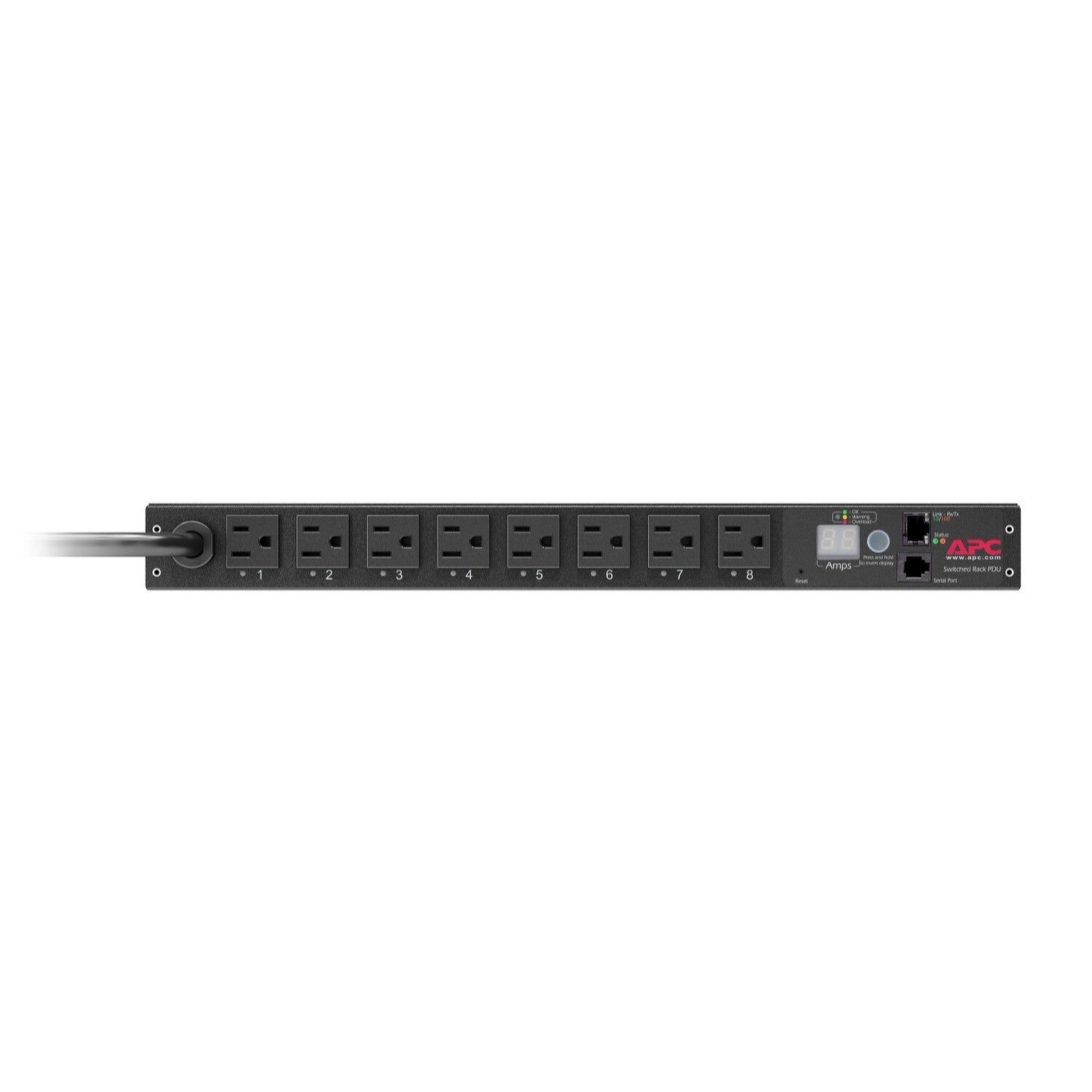

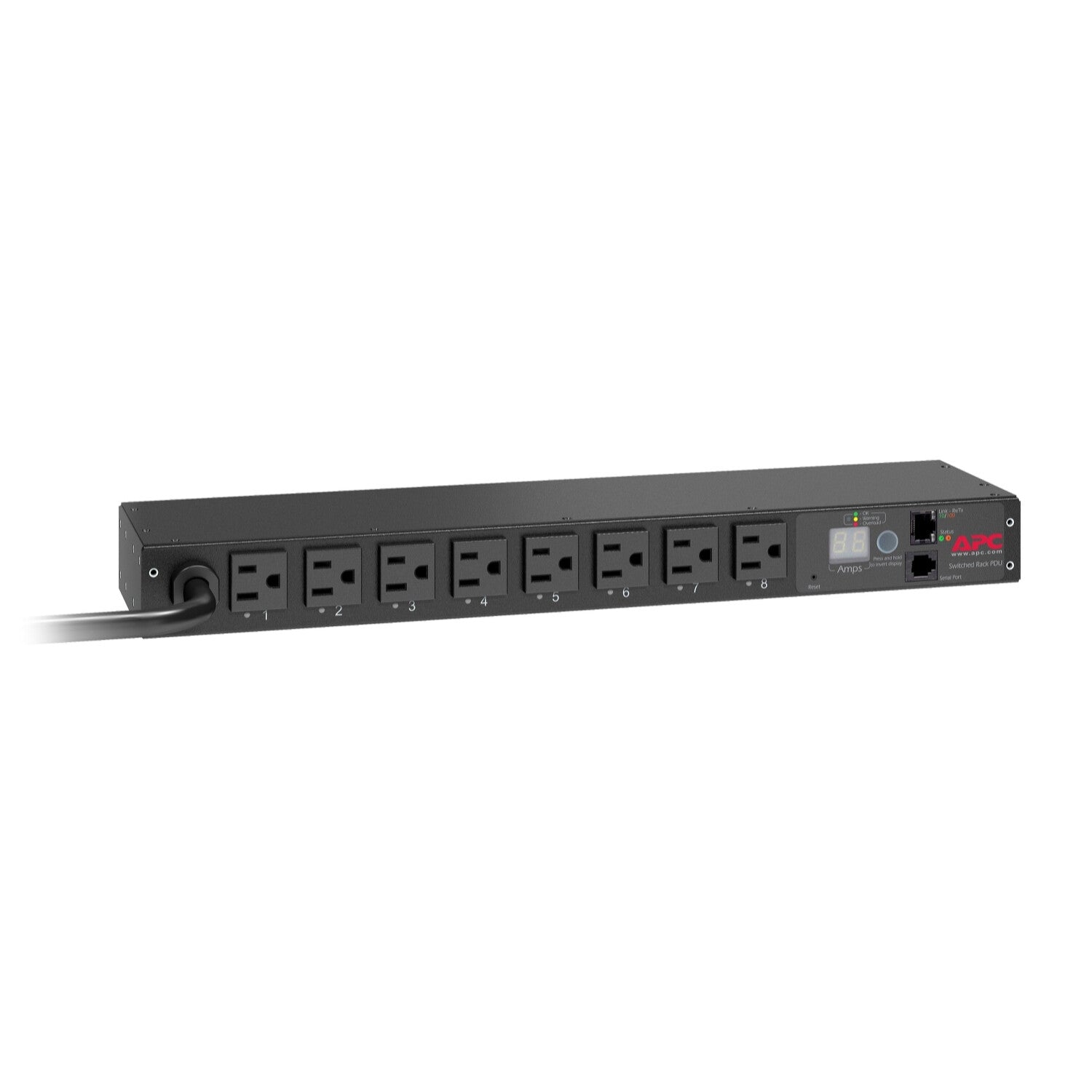

APC NetShelter Switched Rack PDU, 1U, 1.4kW, 120V, 15A, 8 NEMA 5-15R outlet
£837.99
Couldn't load pickup availability
This APC Switched Rack PDU AP7900B power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)5-15. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
| Design | |
|---|---|
| Product colour | Black |
| Mounting | Horizontal |
| Rack capacity | 1U |
| PDU types | Switched |
| Ports & interfaces | |
|---|---|
| AC outlet types | NEMA 5–15P |
| Power plug | NEMA 5–15P |
| AC outlets quantity | 8 AC outlet(s) |
| Features | |
|---|---|
| Cable length | 3.65 m |
| LED indicators | Yes |
| Power | |
|---|---|
| Maximum total current draw per phase | 15 A |
| Nominal output voltage | 120 V |
| Maximum current | 15 A |
| AC input frequency | 50 - 60 Hz |
| Nominal input voltage | 100 - 120 V |
| Certificates | |
|---|---|
| Certification | UL/cUL, PSE, FCC Part 15 Class A, ICES-003 Class A, VCCI Class A |
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.26 kg |
| Height | 44.5 mm |
| Depth | 108 mm |
| Width | 444.5 mm |
| Packaging data | |
|---|---|
| Package weight | 3.4 kg |
| Logistics data | |
|---|---|
| Total carbon footprint (kg of CO2e) | 915.89 |
