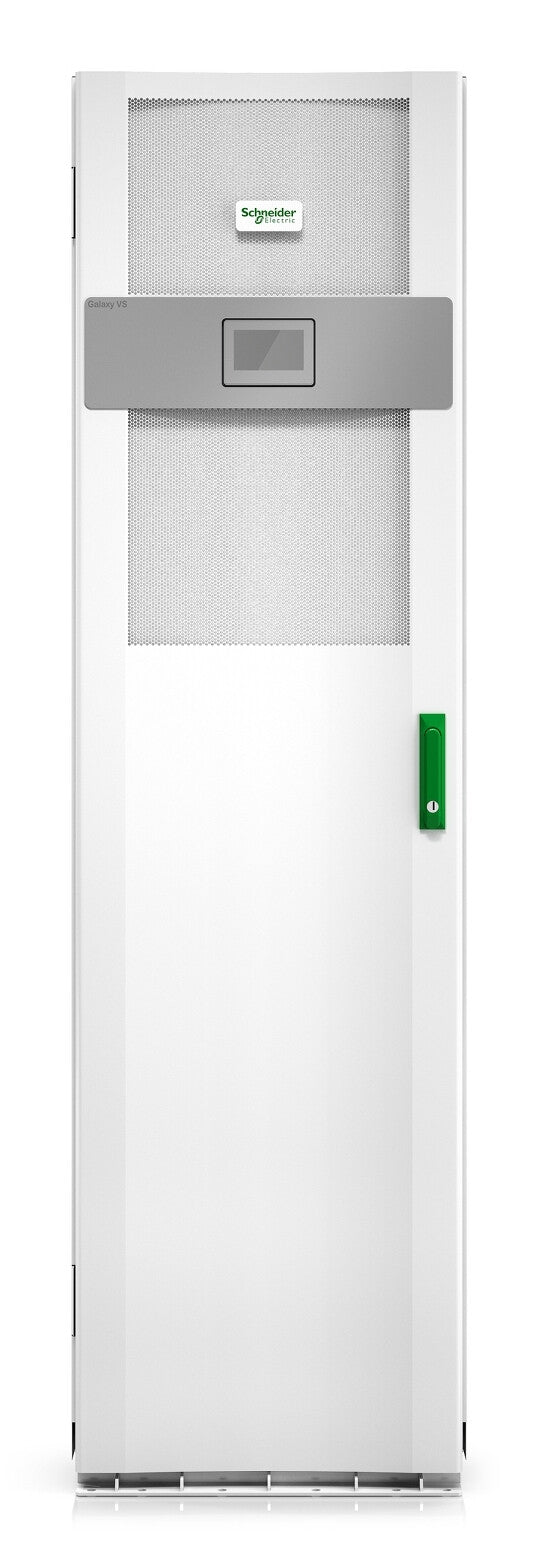

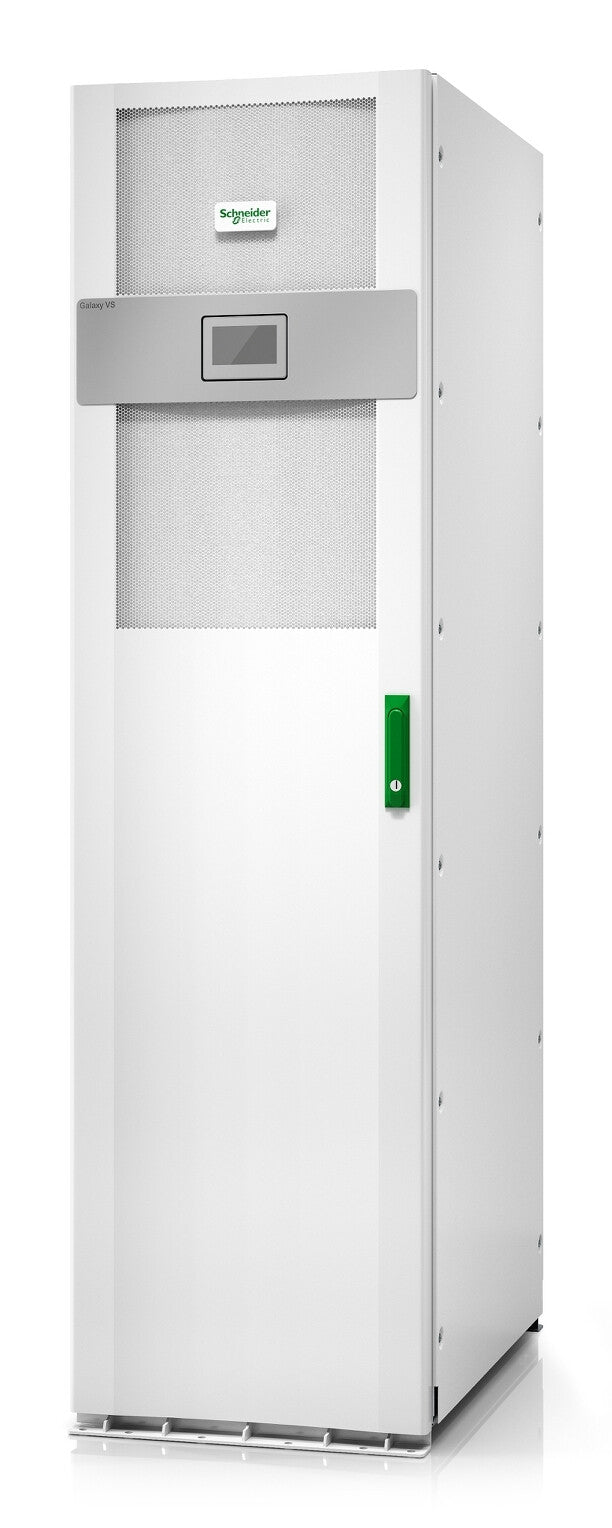

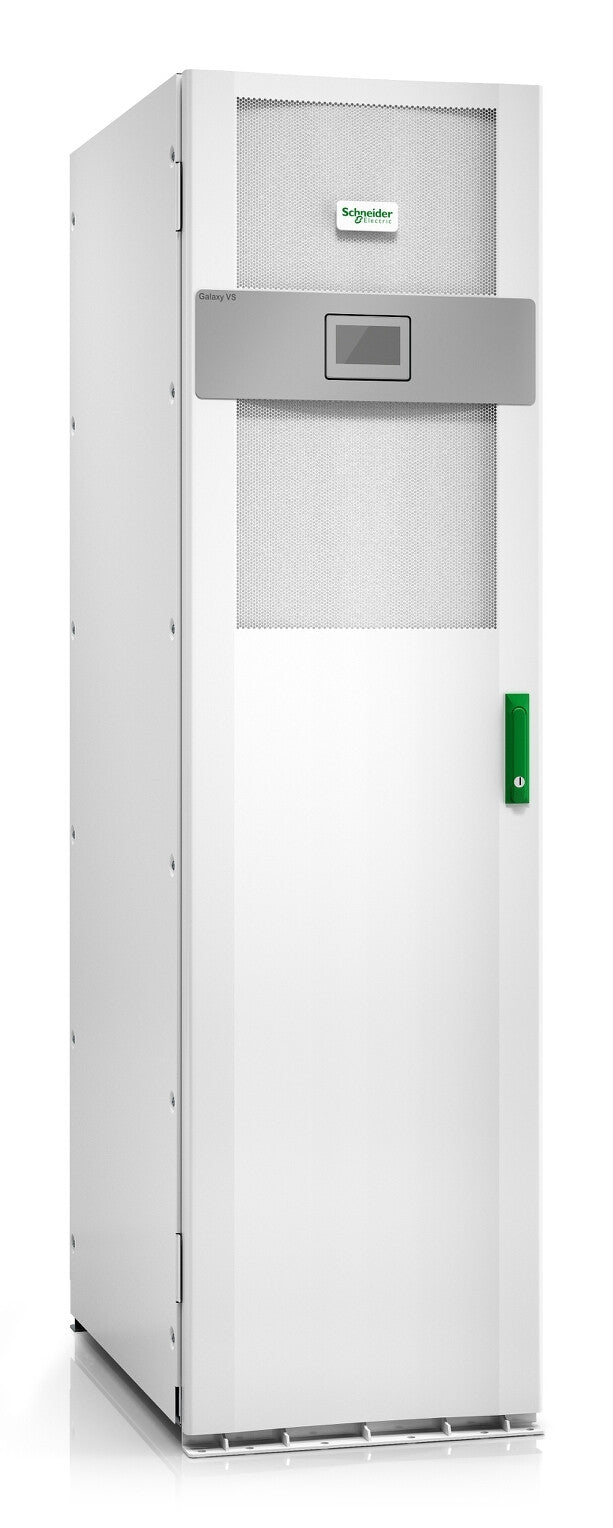

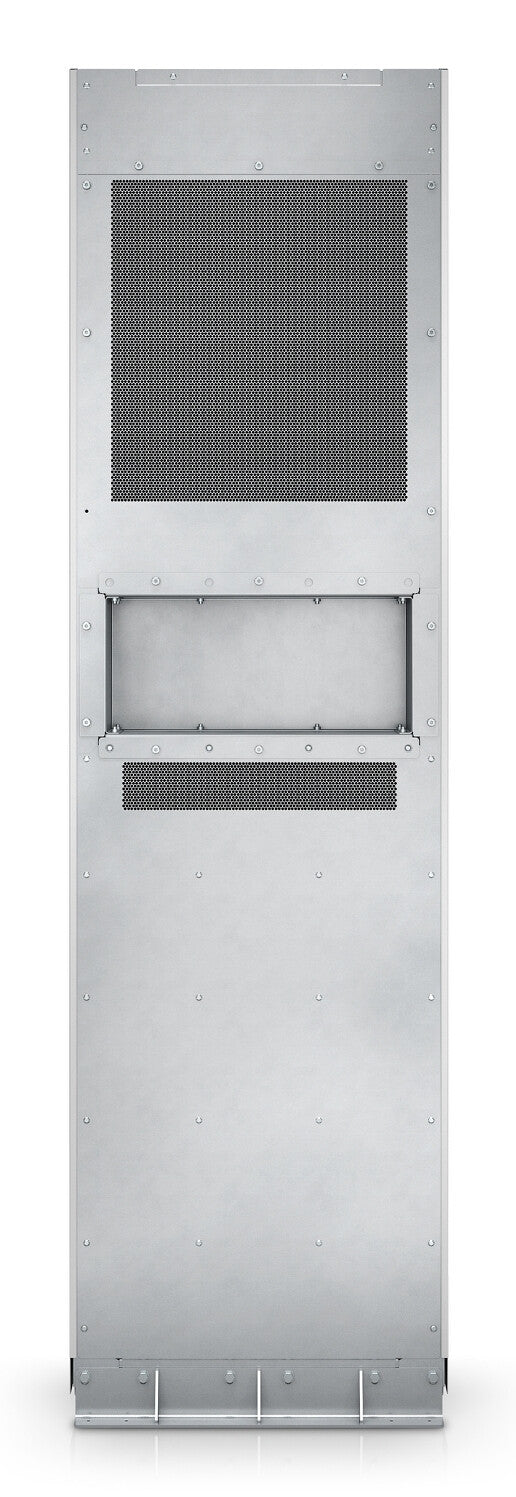

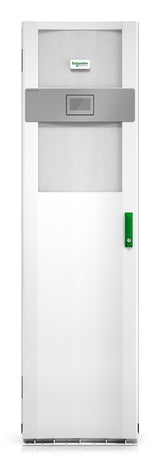

APC GVSUPS30KB5FS uninterruptible power supply (UPS) 30 kVA 30000 W
£23,553.99
inc. VATSpread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £7,851.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Up to 99% efficient in eConversion mode
- Maximize availability with modular architecture
- Live Swap: Third party verified module replacement with no scheduled downtime
- Unlock resiliency and sustainability with access to EcoStruxure software

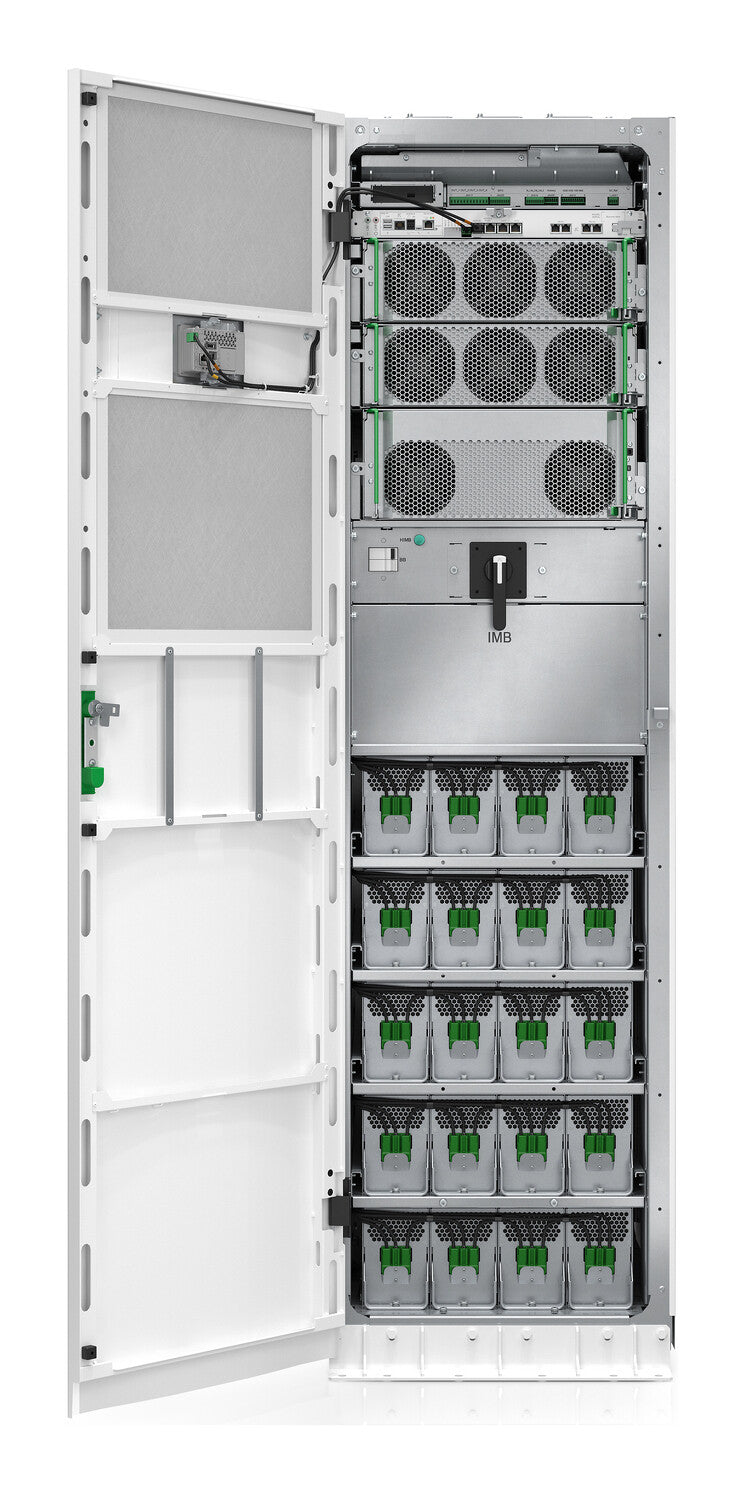

Highly efficient, easy-to-deploy 30 kW, 208 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 3 smart modular high capacity battery strings, expandable to 5 strings for extended runtime. See the battery runtime chart for details.
Specifications
Features
| Output power capacity | 30 kVA |
|---|---|
| Output power | 30000 W |
| Waveform | Sine |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 220 V |
| Input frequency | 40 - 70 Hz |
| Output frequency | 50/60 Hz |
| Maximum current | 107 A |
| Heat dissipation | 6526 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 1% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 54 dB |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery voltage | 480 V |
Show all 30 specificationsShow fewer specifications
Design
| Product colour | White |
|---|---|
| International Protection (IP) code | IP20 |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1000 m |
Technical details
| Minimum order quantity | 1 pc(s) |
|---|
Weight & dimensions
| Width | 550 mm |
|---|---|
| Depth | 847 mm |
| Height | 1970 mm |
| Weight | 665 kg |
