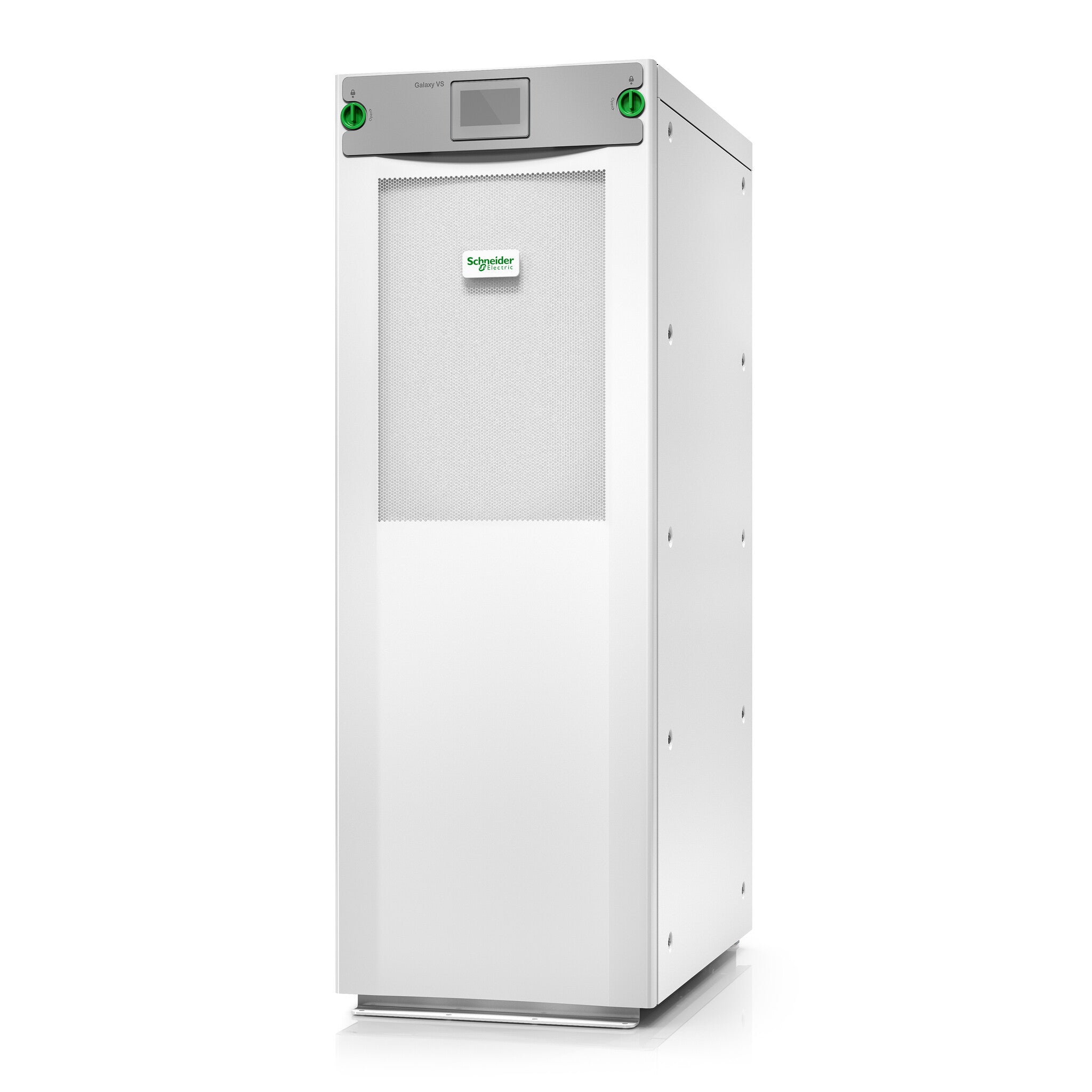

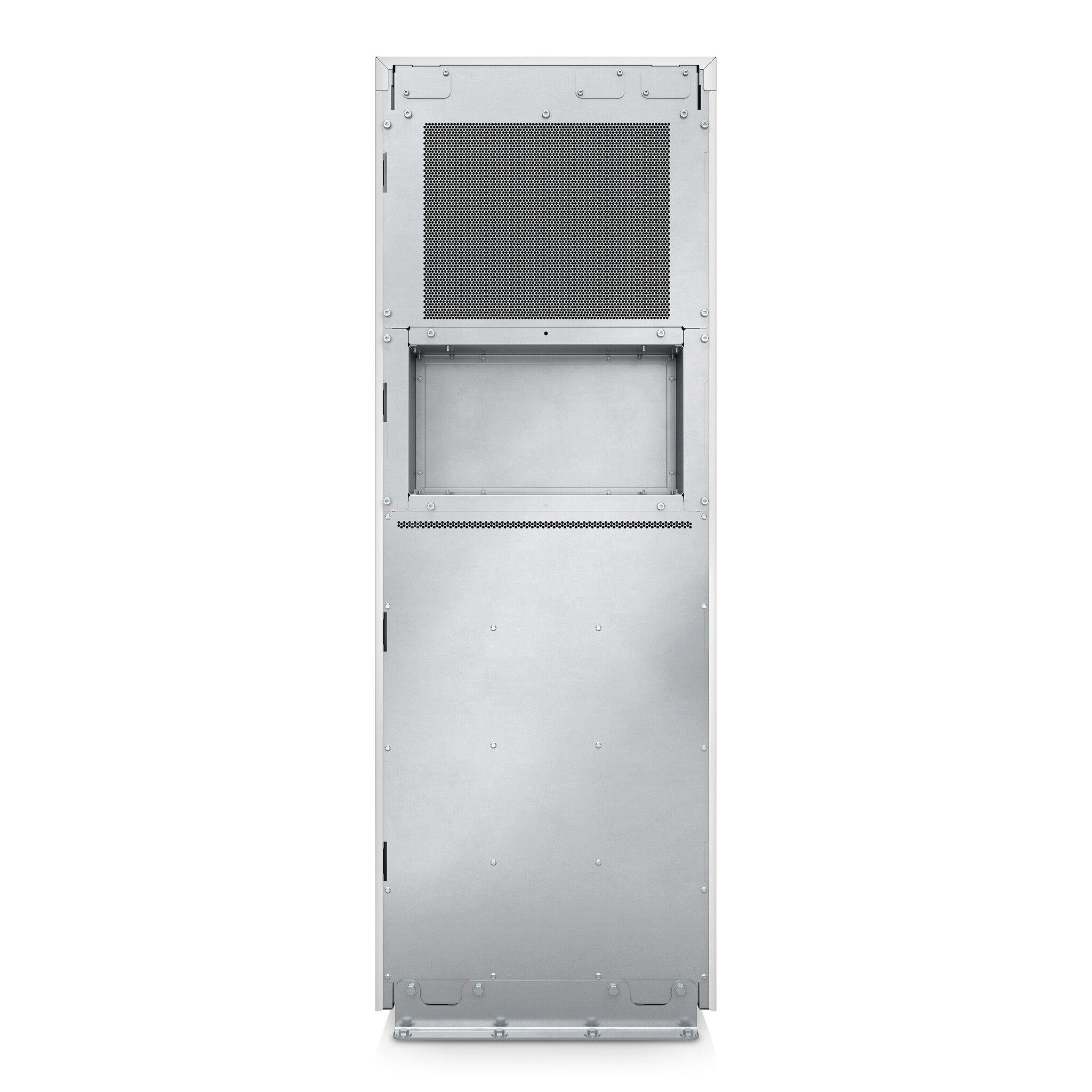

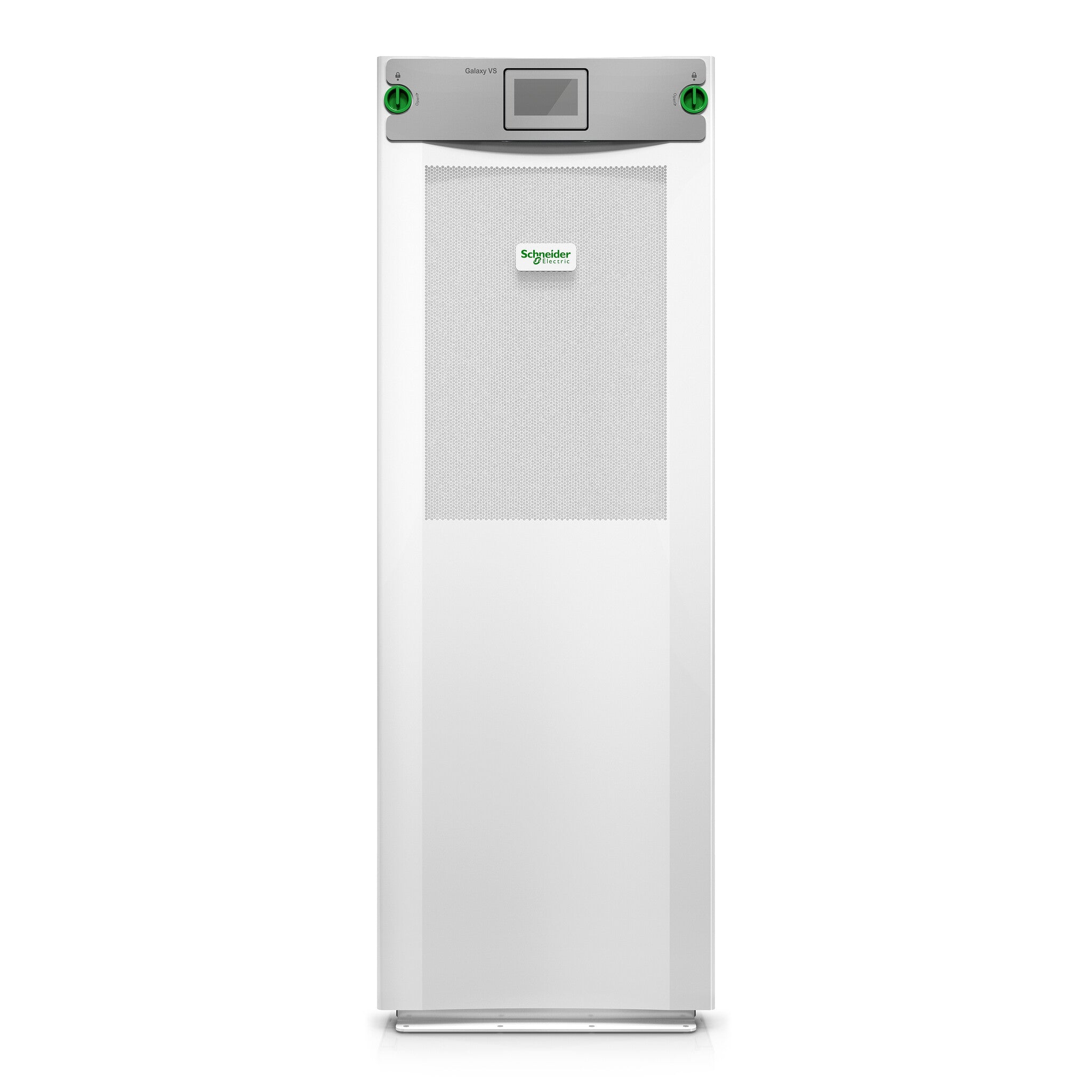

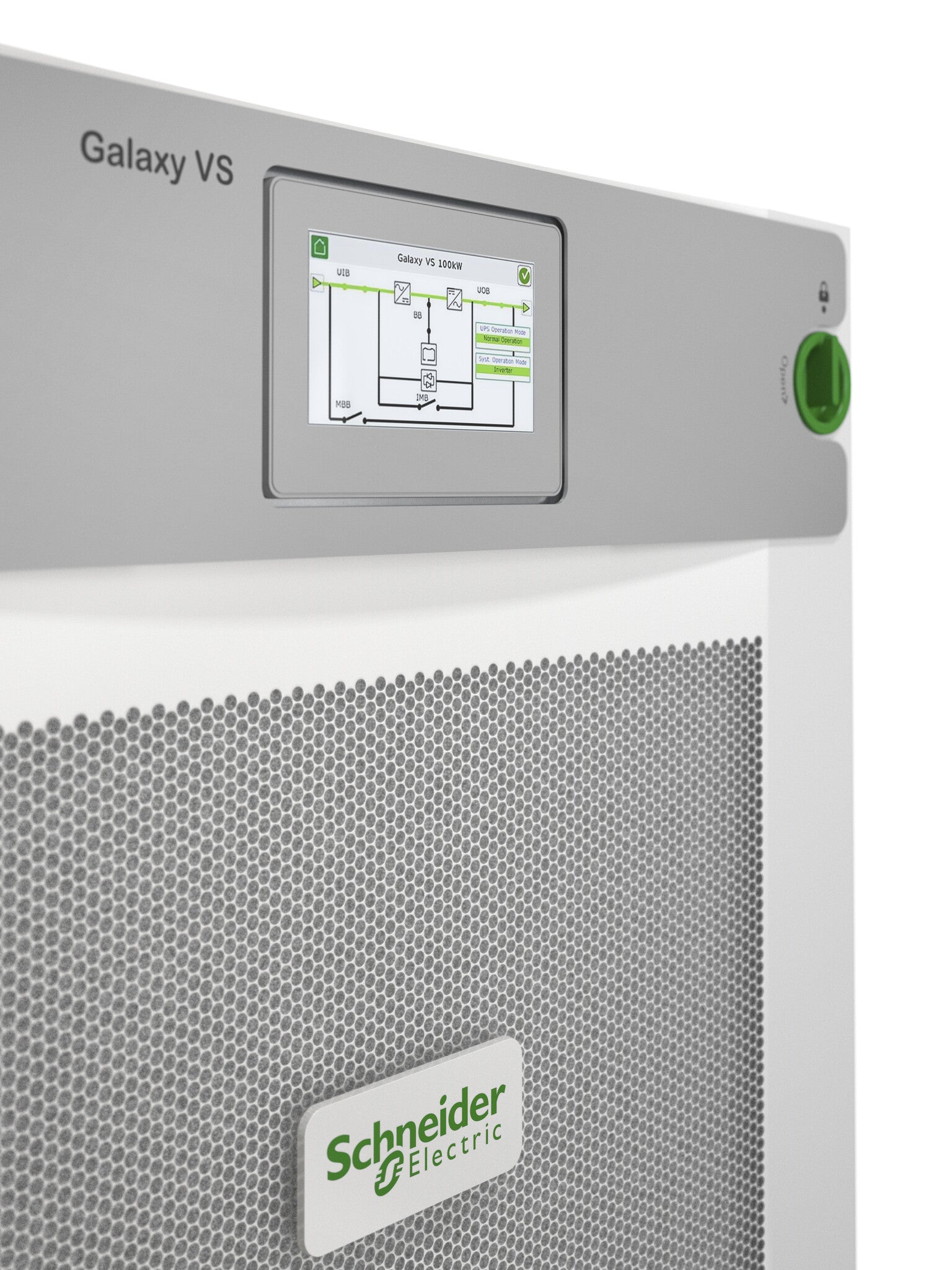

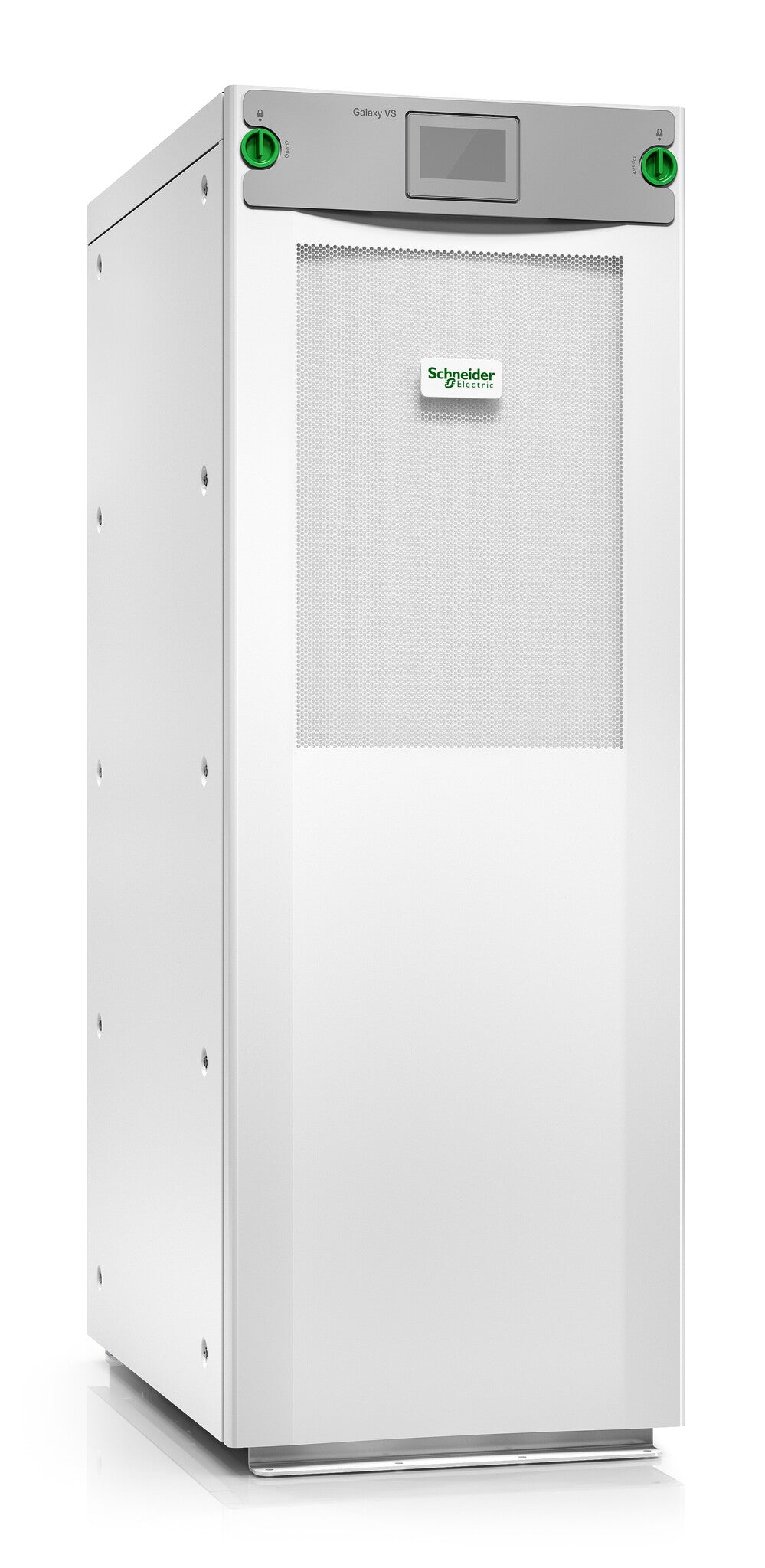

APC GVSUPS15KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 15 kVA 15000 W
Couldn't load pickup availability
- Double-conversion (Online)
- 15 kVA 15000 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 480 V
- Tower White
GVSUPS15KB4HS Features
- Galaxy VS UPS 15kW 400V, 1 internal 9Ah smart modular battery string, expandable to 4, Start-up 5x8
- Highly efficient, easy-to-deploy 15kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart high-capacity modular battery string, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.

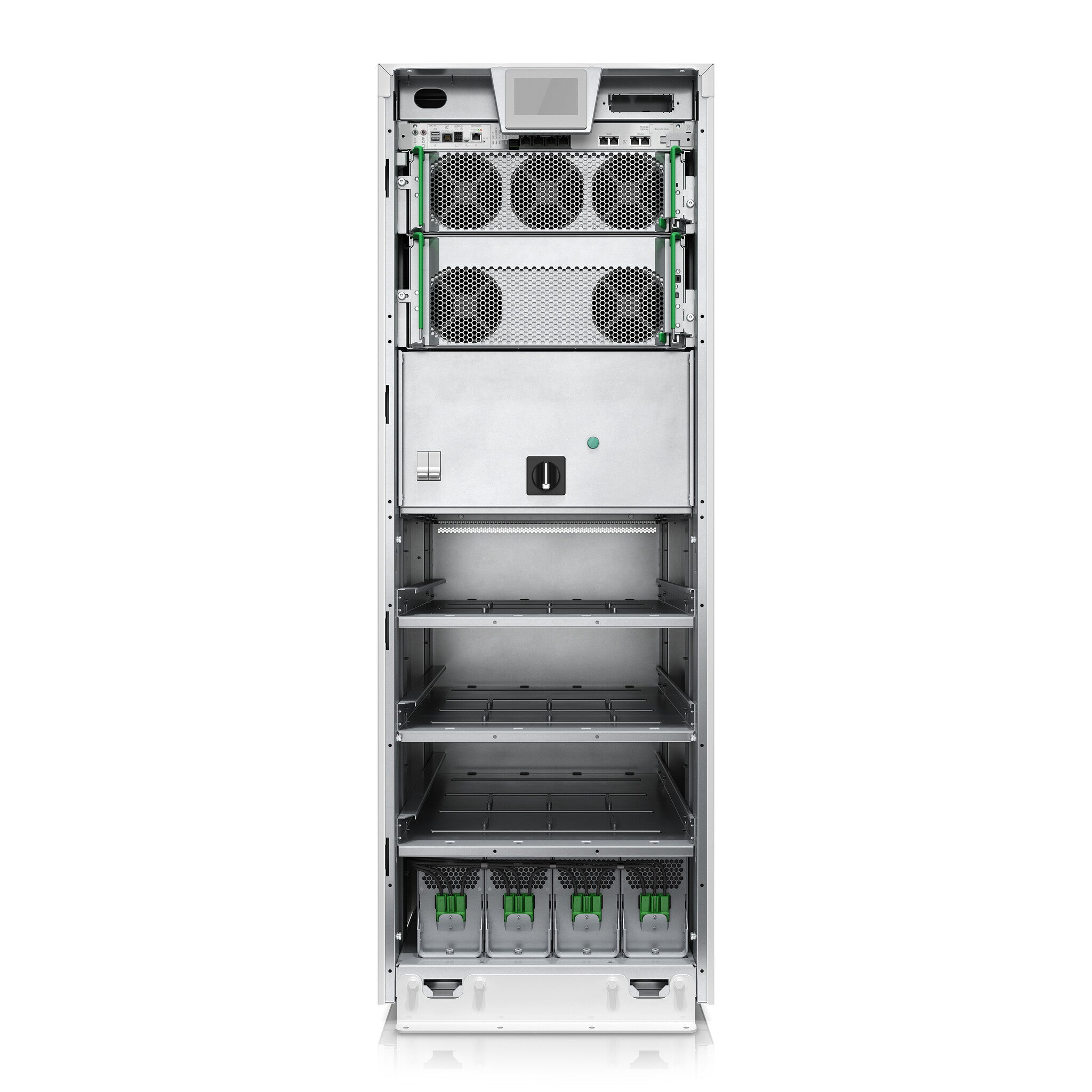

- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
| Features | |
|---|---|
| Audible alarm(s) | Yes |
| Power protection features | Overload, Short circuit |
| Noise level | 55 dB |
| Input current Total Harmonic Distortion (THD) | 3% |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| ECO mode | Yes |
| Crest factor | 2.5:1 |
| Input power factor | 0.99 |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Maximum current | 27 A |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 415 V |
| Output operation voltage (min) | 380 V |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 460 V |
| Input operation voltage (min) | 340 V |
| Waveform | Sine |
| Output power | 15000 W |
| Output power capacity | 15 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| SmartConnect port | No |
| SmartSlot | Yes |
| AC outlet types | Hard Wire 3-wire (1PH + N + G), Hard Wire 4-wire (3PH + G) |
| Battery | |
|---|---|
| Battery voltage | 480 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| Display type | LCD |
| Product colour | White |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 3000 m |
| Operating altitude | 0 - 1000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Certificates | |
|---|---|
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Weight & dimensions | |
|---|---|
| Weight | 330 kg |
| Height | 1485 mm |
| Depth | 847 mm |
| Width | 521 mm |
| Packaging data | |
|---|---|
| Package weight | 360 kg |
| Package height | 1680 mm |
| Package depth | 990 mm |
| Package width | 640 mm |
| Management card included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
