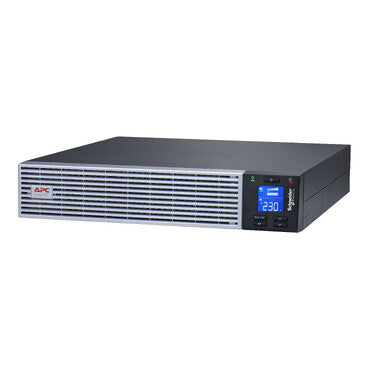

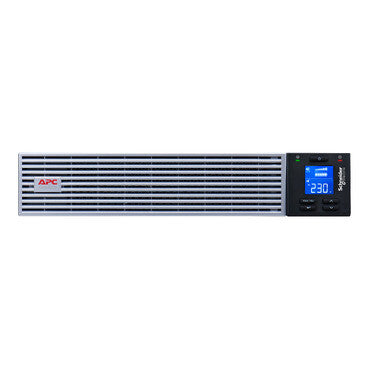

APC Easy UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 6 AC outlet(s)
Couldn't load pickup availability
- Replacement battery (1) is available
- 2000VA/1800W double-conversion on-line pure sine wave 2U rackmount UPS

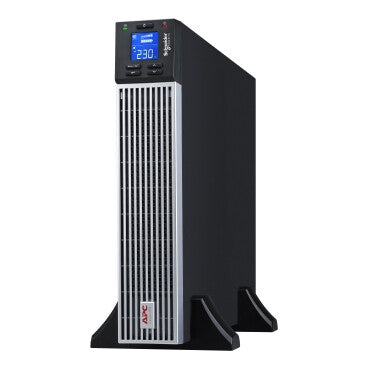

- Rack/Tower convertible (rail kit included)
- Lithium-ion battery minimizes the need to replace battery during UPS lifetime
- Graceful shutdown of servers and workstations
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line lithium-ion 2U UPS provides pure sine wave power to support critical electronics during power disruptions. The SRVL comes with IEC 320 C20 input and 6x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It comes with a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Surveillance, Co-working space, Healthcare IT, ATMs, Micro Data centers, and Server rooms.
| Features | |
|---|---|
| Power source type | AC |
| Detachable power cord | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Audible alarm(s) | Yes |
| Noise level | 50 dB |
| Emergency Power Off (EPO) | Yes |
| ECO mode | Yes |
| Crest factor | 3:1 |
| Efficiency | 90% |
| Heat dissipation | 683 BTU/h |
| Surge energy rating | 945 J |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Input frequency | 40 - 70 Hz |
| Input operation voltage (max) | 300 V |
| Input operation voltage (min) | 110 V |
| Waveform | Sine |
| Output power | 1800 W |
| Output power capacity | 2 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| Emergency Power Off (EPO) connector | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Modem (RJ-11) ports | 1 |
| RS-232 ports | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| USB port type | USB Type-B |
| USB port | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Battery recharge time | 1.5 h |
| Battery life (max) | 10 year(s) |
| Typical backup time at full load | 10.1 min |
| Battery voltage | 48 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Display type | LCD |
| Control type | Buttons |
| Built-in fan | Yes |
| Cooling type | Active |
| Rack capacity | 2U |
| Product colour | Black |
| Form factor | Rackmount/Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 50 °C |
| Packaging content | |
|---|---|
| Cables included | Output power cable, Phone (RJ-11), RJ-45, RS-232, USB cable |
| Rack mount kit | Yes |
| Certificates | |
|---|---|
| Certification | CBCEUKCAUN 38.3IEC 62619 |
| Compliance certificates | CE, RoHS, UKCA |
| Weight & dimensions | |
|---|---|
| Weight | 16.5 kg |
| Height | 86 mm |
| Depth | 502 mm |
| Width | 438 mm |
| Packaging data | |
|---|---|
| Package weight | 22.7 kg |
| Package height | 240 mm |
| Package depth | 650 mm |
| Package width | 580 mm |
