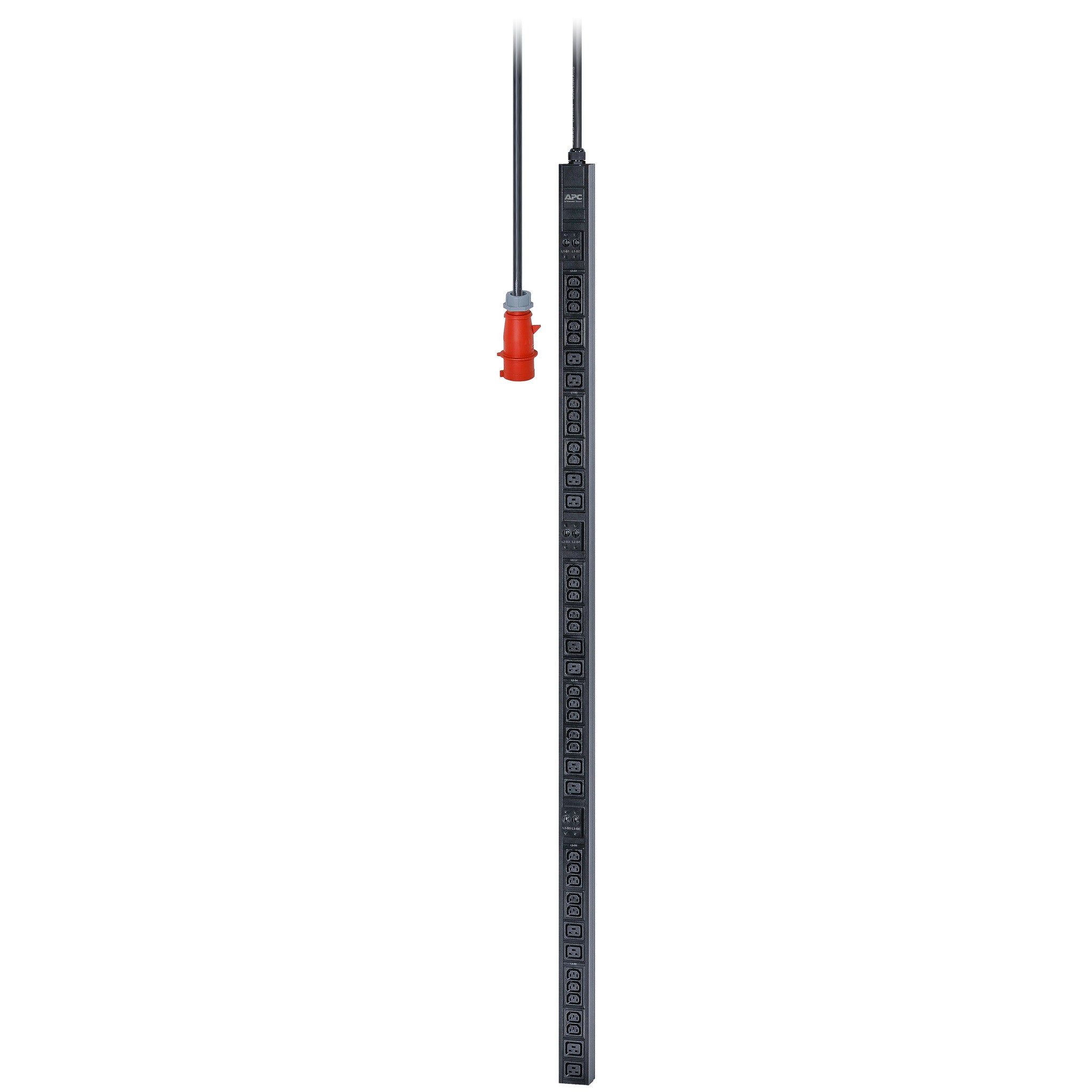

APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet

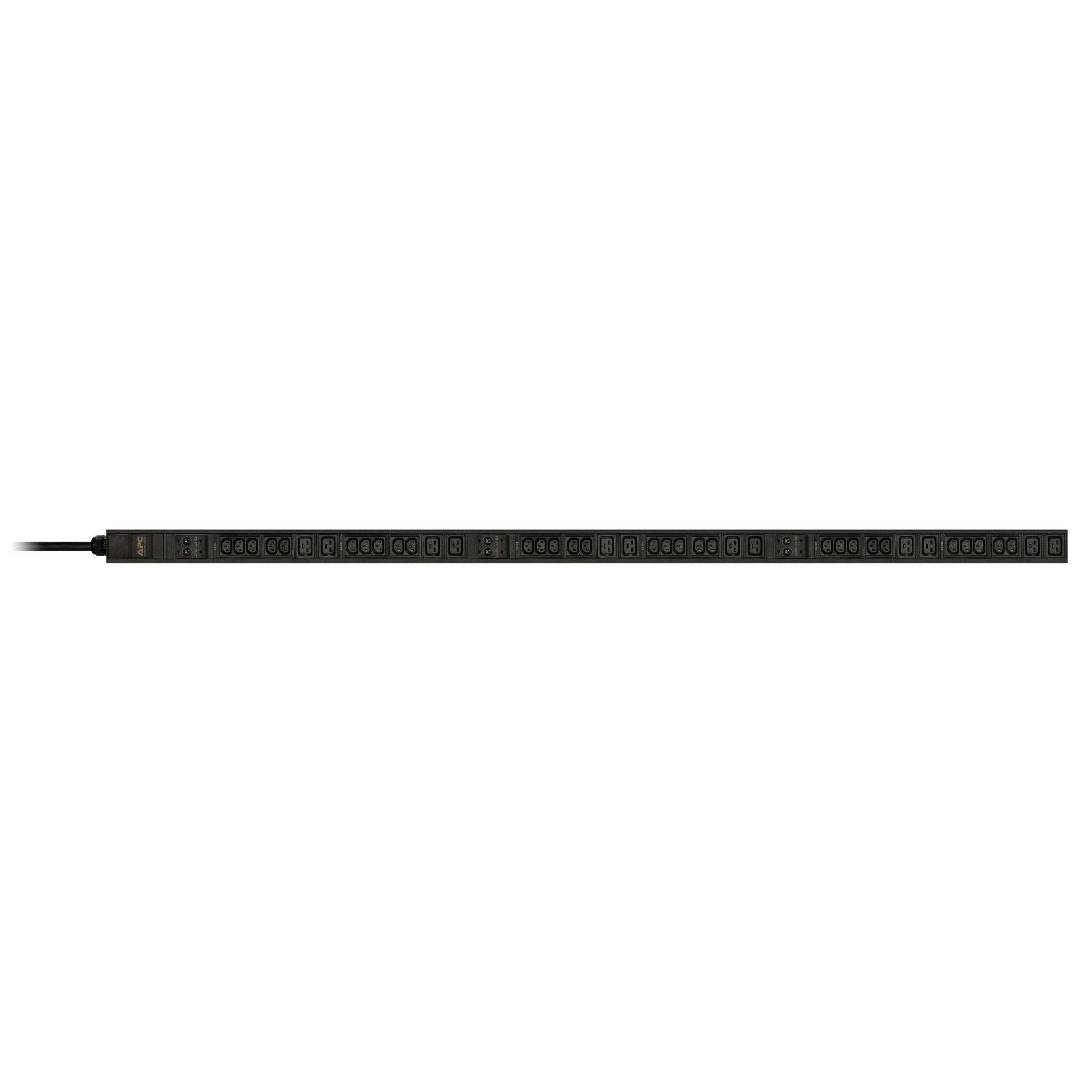

APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet - image 2

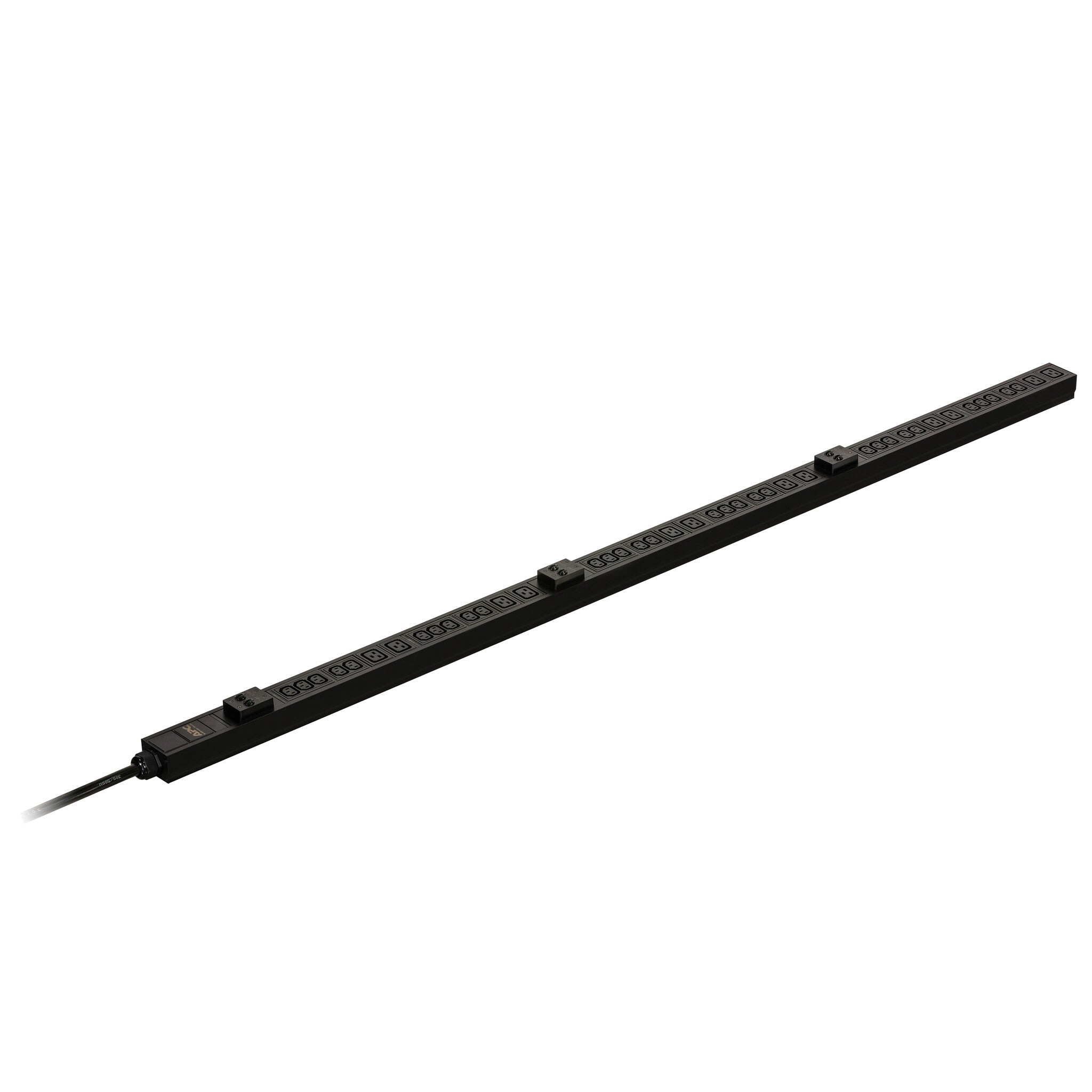

APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet - image 3

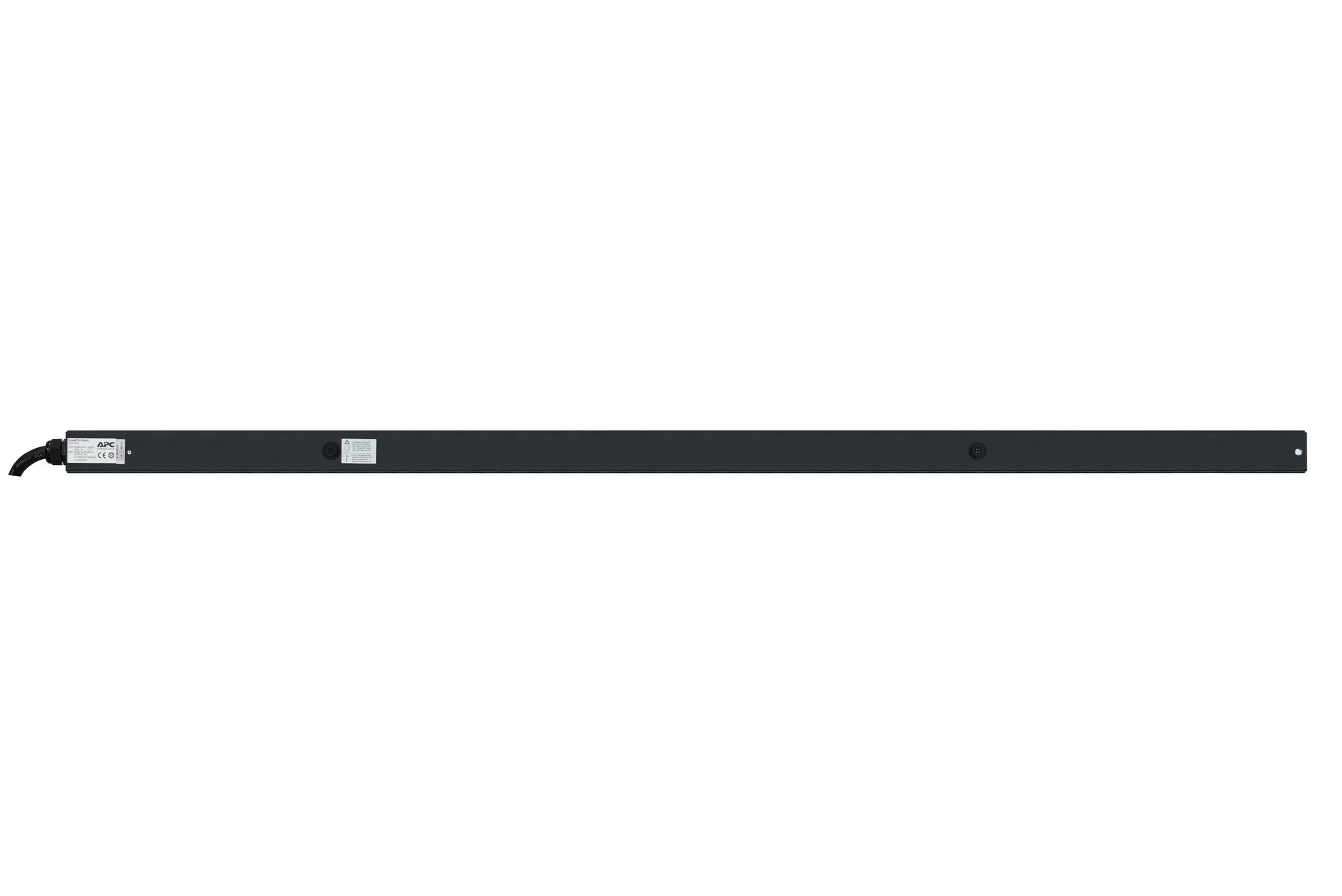

APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet - image 4
APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet
APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet - image 2
APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet - image 3
APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet - image 4

APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet

APC
£762.99
Stock Available: 0
  • Three-phase Basic 0U Black
  • 42 AC outlet(s) C13 coupler, C19 coupler
  • 22000 W

APC Easy Basic Rack PDU EPDU1232B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). EPDU1216B has IEC 309 32A 3P+N+E type inlet, Thirty IEC C13 and twelve IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Saves time and money during installation by using one branch whip and standard connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements.

Design
PDU types Basic
Type Three-phase
Rack capacity 0U
Mounting Vertical
Product colour Black
Ports & interfaces
AC outlets quantity 42 AC outlet(s)
Power plug IEC 60309
AC outlet types C13 coupler, C19 coupler
Features
Cable length 2 m
Power
Nominal input voltage 400 V
AC input frequency 50 - 60 Hz
Maximum current 32 A
Nominal output voltage 230 V
Load capacity 22080 VA
Maximum input current per phase 32 A
Maximum power 22000 W
Certificates
Certification CE, TUV
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Weight & dimensions
Width 62 mm
Depth 44 mm
Height 1794 mm
Weight 5.14 kg
Packaging content
Manual Yes
Packaging data
Package weight 6.2 kg
Package width 160 mm
Package depth 110 mm
Package height 1950 mm
Logistics data
Total carbon footprint (kg of CO2e) 127.67
