APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 30000 W
£6,842.99
Couldn't load pickup availability
- Double-conversion (Online)
- 30 kVA 30000 W
- Sealed Lead Acid (VRLA) 240 V
- Tower White
Easy UPS 3S 30 kVA 400 V 3:3 UPS for internal batteries

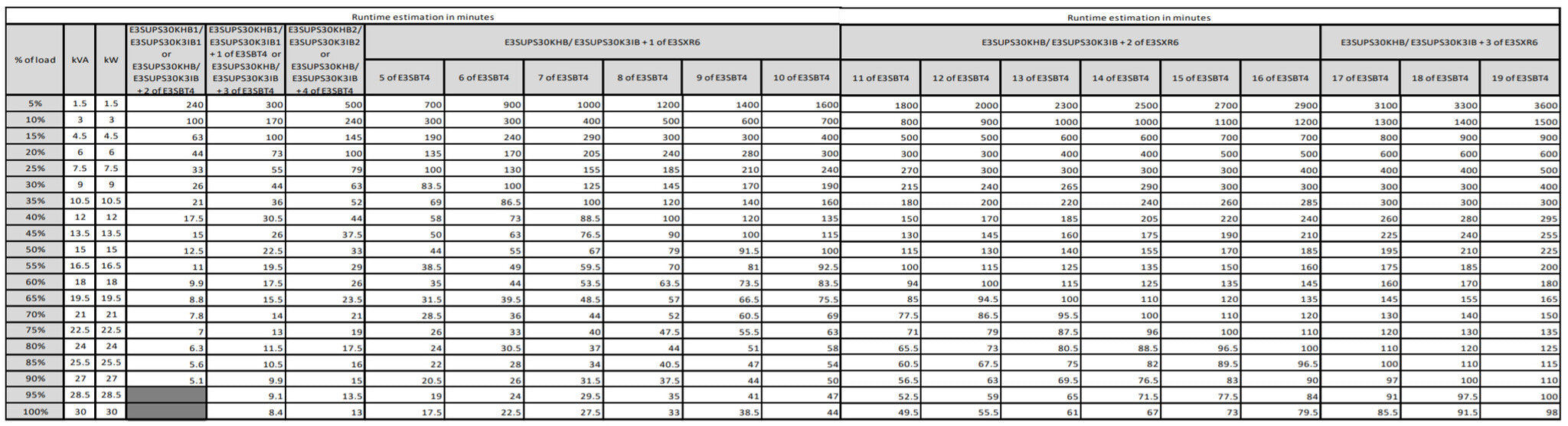

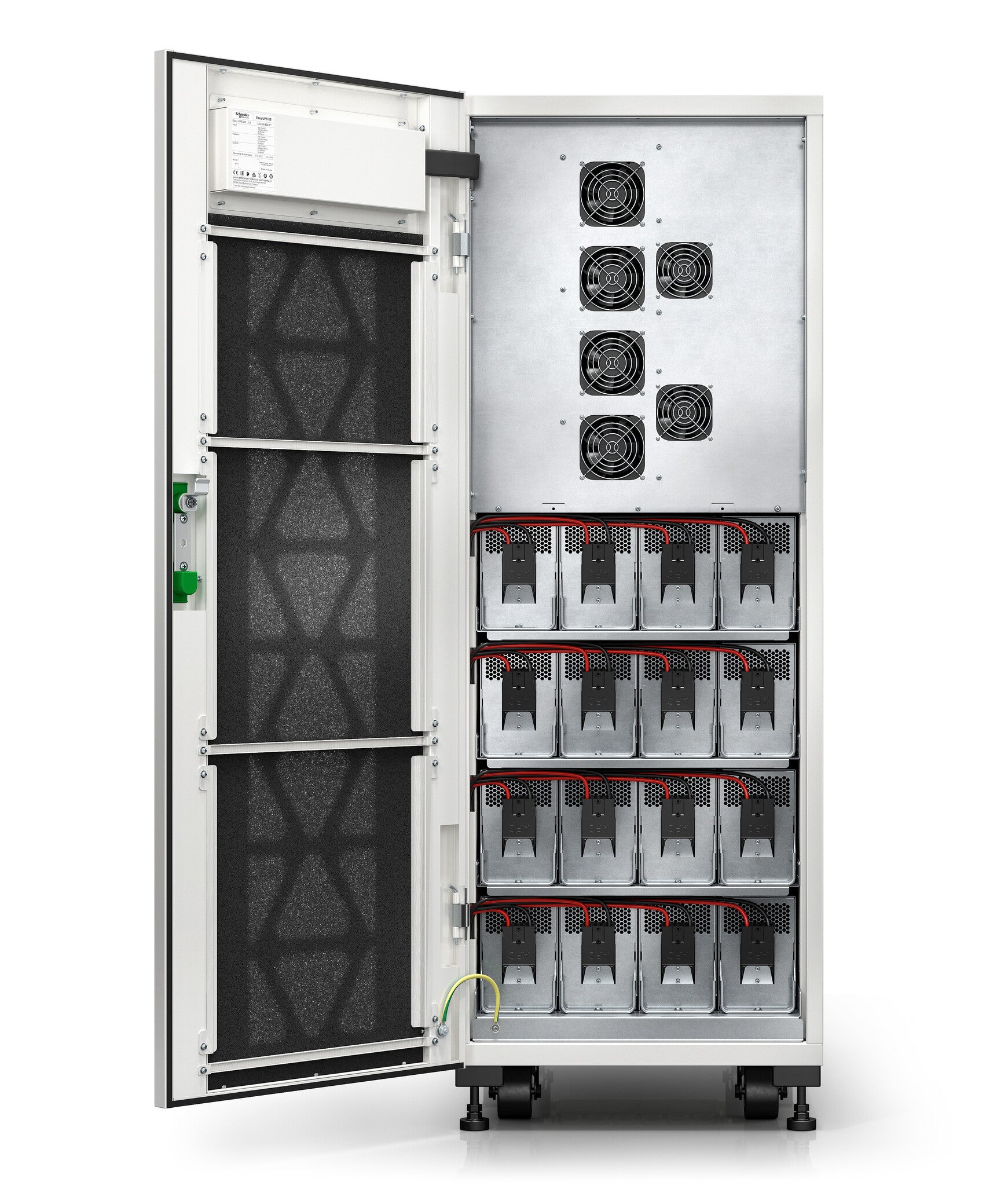

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 55 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 95% |
| Input power factor | 0.99 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 63 dB |
| Ports & interfaces | |
|---|---|
| AC outlet types | Hardwire |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | White |
| Cooling type | Active |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
| Weight & dimensions | |
|---|---|
| Width | 500 mm |
| Depth | 969 mm |
| Height | 1400 mm |
| Weight | 152 kg |
| Battery width | 68.3 cm |
| Battery depth | 111.4 cm |
| Battery height | 164 cm |
| Battery weight | 190 kg |
| Packaging data | |
|---|---|
| Management card included | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
