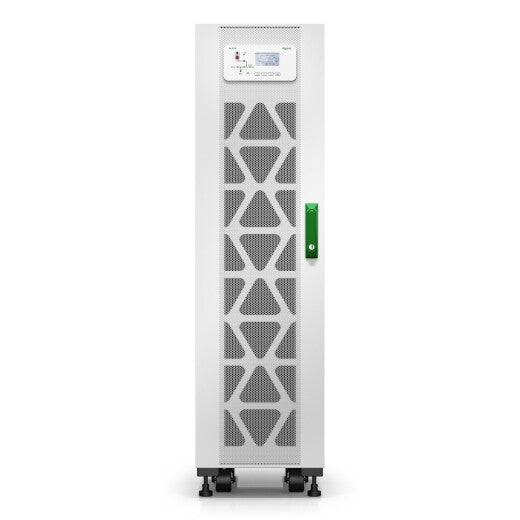

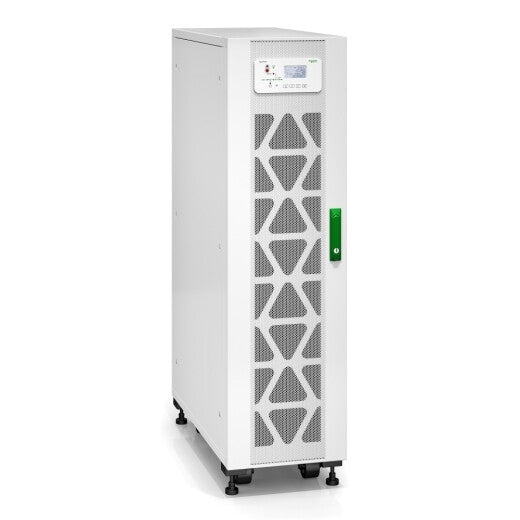

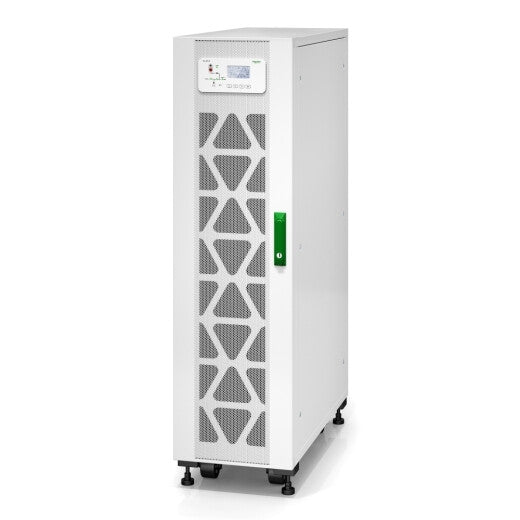

APC E3SUPS10K3IB1 uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W
Couldn't load pickup availability
- Double-conversion (Online)
- 10 kVA 10000 W
- Sealed Lead Acid (VRLA) 240 V
- Tower White
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Replaceable dust filters
protect the UPS in harsh environments.
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5.5% |
| Input current Total Harmonic Distortion (THD) | 4% |
| Noise level | 60 dB |
| Power protection features | Overload |
| Ports & interfaces | |
|---|---|
| AC outlet types | Hardwire |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000.05 m |
| Non-operating altitude | 0 - 15240 m |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 380 mm |
| Depth | 907 mm |
| Height | 14000 mm |
| Weight | 157 kg |
| Packaging data | |
|---|---|
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
