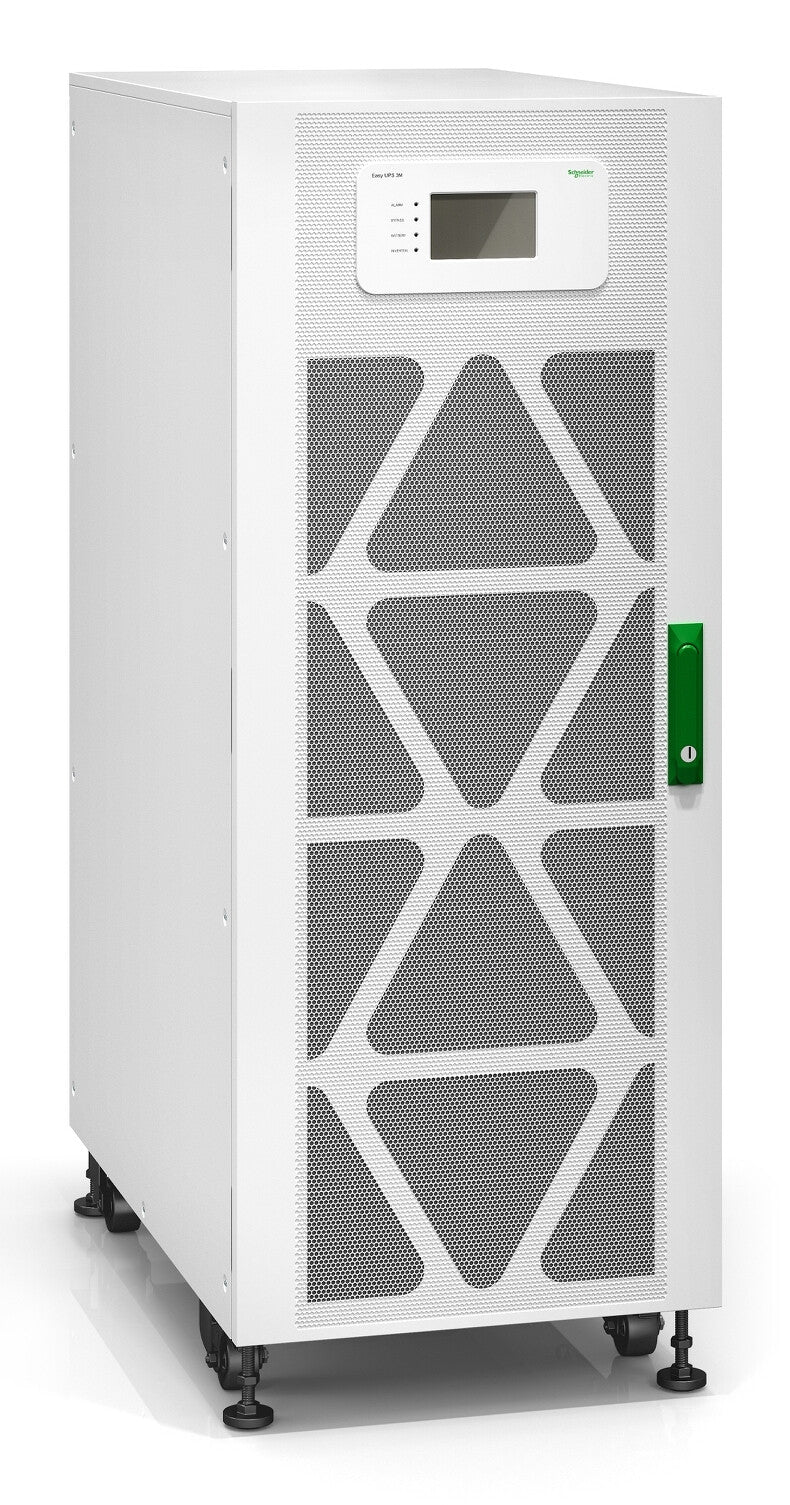

APC E3MUPS160KH uninterruptible power supply (UPS) Double-conversion (Online) 160 kVA 160000 W
£18,450.99
Couldn't load pickup availability
- Easy UPS 3M is easy to install, connect, use, and service
- Parallel up to 6 Easy UPS 3M UPSs for capacity or redundancy
- Battery flexibility, including compatibility with Galaxy Lithium-ion battery cabinets
- Easy Loop test verifies UPS performance before you connect your load, without the need for a load bank
- IP20 (optional IP30, IP40, and IPX2 kits available)
Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 160 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 160 kVA |
| Output power | 160000 W |
| Waveform | Sine |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40 - 70 Hz |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Maximum current | 262 A |
| Heat dissipation | 8000 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Power factor | 0.99 |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 72 dB |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1500 m |
| Non-operating altitude | 0 - 15240 m |
| Power | |
|---|---|
| Input current (max) | 262 A |
| Technical details | |
|---|---|
| Minimum order quantity | 1 pc(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Width | 500 mm |
| Depth | 850 mm |
| Height | 1300 mm |
| Weight | 227 kg |
| Packaging data | |
|---|---|
| Package width | 975 mm |
| Package depth | 625 mm |
| Package height | 1500 mm |
| Package weight | 257 kg |
| Logistics data | |
|---|---|
| Warranty period | 1 year(s) |
