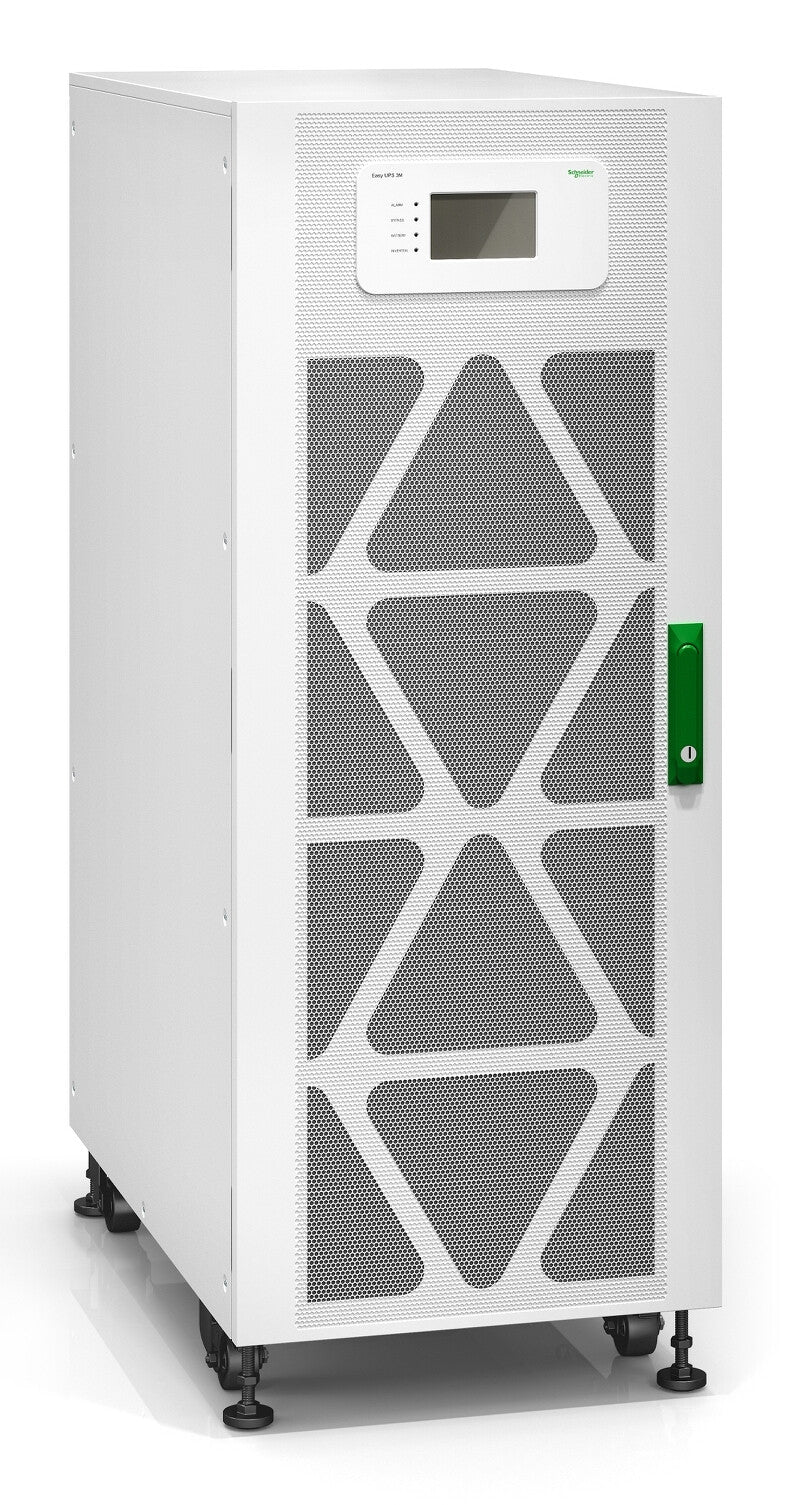

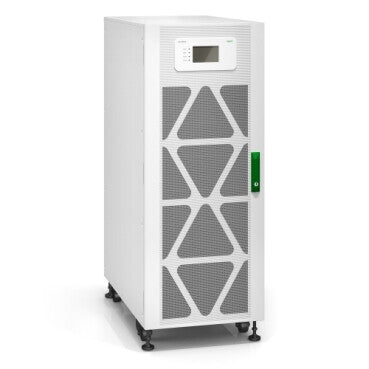

APC E3MUPS120KHS uninterruptible power supply (UPS) Double-conversion (Online) 120 kVA 120000 W
£14,863.99
Couldn't load pickup availability
- Parallel up to 6 Easy UPS 3M UPSs for capacity or redundancy
- Battery flexibility, including compatibility with Galaxy Lithium-ion battery cabinets
- IP20 rated (IP30 with optional kit)
- EcoStruxure IT: Enables resilient, secure, and sustainable IT environments
Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 120 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy." "Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management." "It is supplied without batteries, so you can easily customize your battery solution." "Includes 5x8 start-up service.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 120 kVA |
| Output power | 120000 W |
| Waveform | Sine |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Maximum current | 207 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1500 m |
| Non-operating altitude | 0 - 15240 m |
| Packaging content | |
|---|---|
| Batteries included | No |
| Manual | Yes |
| Quick installation guide | Yes |
| Weight & dimensions | |
|---|---|
| Width | 500 mm |
| Depth | 850 mm |
| Height | 1300 mm |
| Weight | 1.93 kg |
| Packaging data | |
|---|---|
| Package width | 975 mm |
| Package depth | 625 mm |
| Package height | 1500 mm |
| Package weight | 223 kg |
