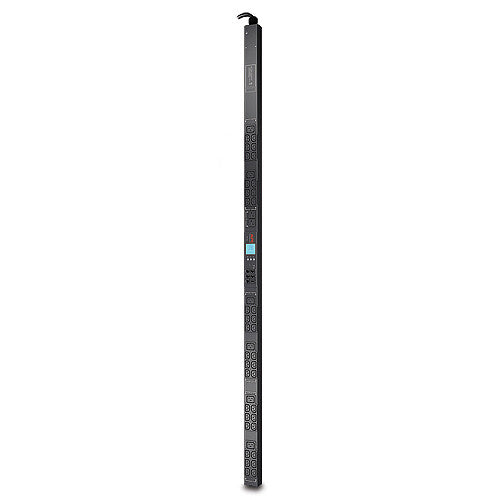

APC AP8861 power distribution unit (PDU) Black
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £391.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Integrates with InfraStruXure Central
An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Specifications
Design
| Product colour | Black |
|---|
Ports & interfaces
| Output connections | 36x IEC 320 C136x IEC 320 C192x NEMA 5-20R |
|---|---|
| Input connection type | NEMA L21-20P |
Show all 18 specificationsShow fewer specifications
Features
| Cable length | 1.83 m |
|---|
Power
| Maximum total current draw per phase | 20 A |
|---|---|
| Maximum input current per phase | 20 A |
| Nominal output voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Nominal input voltage | 208 V |
Certificates
| Certification | CSA C22.2 No. 60950,UL 60950-1 |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 95% |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 5 - 45 °C |
Weight & dimensions
| Weight | 6.34 kg |
|---|---|
| Height | 1791 mm |
| Depth | 44 mm |
| Width | 56 mm |
