£100.99

Stock Available: 7
  • 850 W 100 - 240 V 50/60 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS Platinum
  • Active 12 cm
  • Black

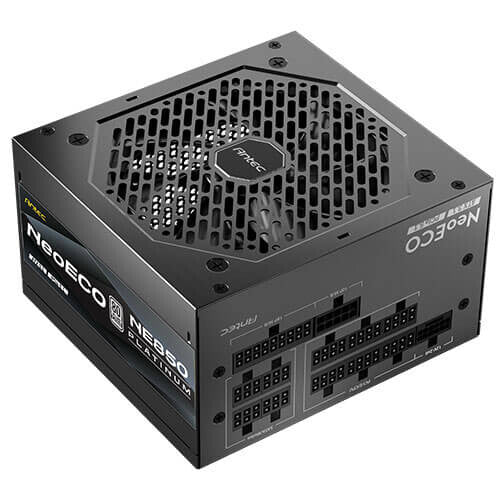

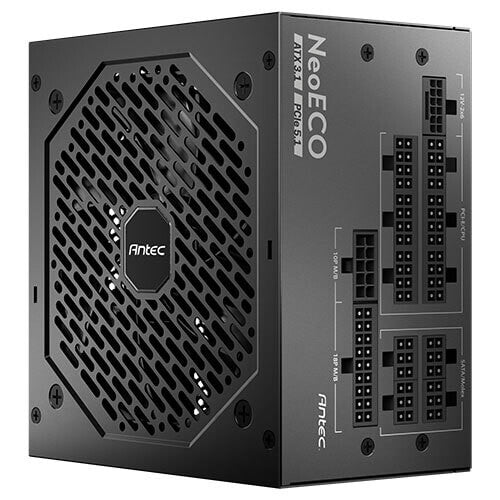

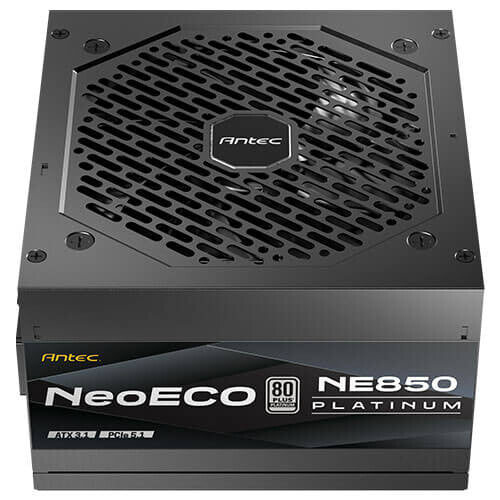

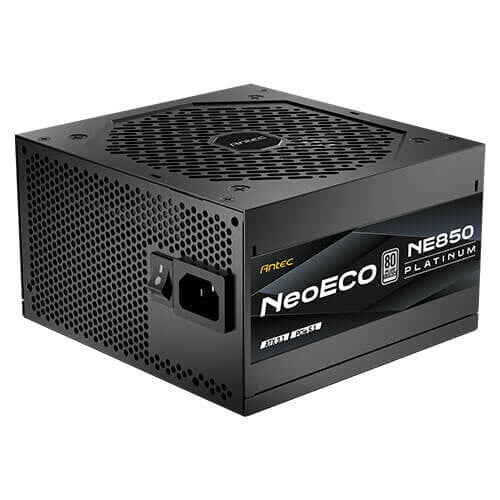

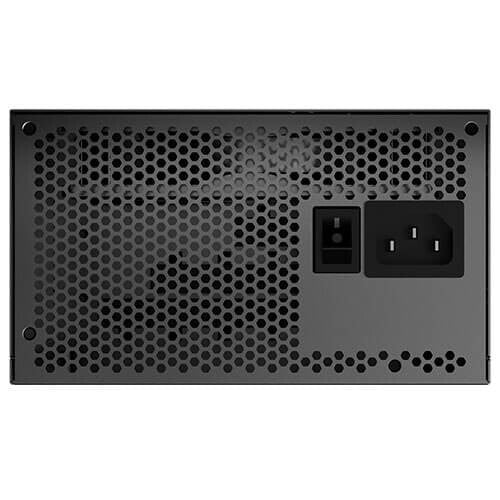

Introducing the NeoECO Platinum ATX3.1 power supply, crafted to deliver exceptional performance and rock-solid stability for gamers and enthusiasts. Featuring next-generation ATX 3.1 and PCIe 5.1 support, high-quality Japanese capacitors, and 80 PLUS® Platinum efficiency, it ensures outstanding and consistent power delivery. The PhaseWave™ design provides smooth, reliable output, while the 120 mm FDB silent fan delivers efficient, quiet cooling. Its fully modular design allows for easy cable management, and the Zero RPM Manager intelligently controls fan operation, activating it only when needed to balance silent performance with optimal cooling. Backed by the CircuitShield™ suite of industrial-grade protections, the NeoECO Platinum ATX3.1 is a powerful, efficient, and dependable choice for modern PC builds.

ATX 3.1 & PCIe 5.1 Compatible
Our new NeoECO Platinum ATX3.1 power supplies are formally certified for ATX 3.1 compliance, meeting the high standards for reliability and power efficiency, and ensuring the utmost level of quality and performance.
The included PCIe 5.1 12V-2x6 GPU cable enables seamless compatibility with the latest graphics cards.

High-Quality JP Capacitors
Equipped with high-quality Japanese capacitors, our power supplies achieve unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system's performance.

PhaseWave TM Design
Introducing our PhaseWave™ Design, a server-class LLC design featuring synchronous rectification based on a DC-DC topology. This design ensures unparalleled power delivery efficiency and stability for your system.

10-Year Warranty
The new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

Zero RPM Manager
With the Zero RPM fan mode, our PSU ensures a longer lifespan and quieter operation. The thermal sensors activate the fan only when necessary, providing optimal cooling while minimizing noise levels.

120mm FDB Silent Fan
The whisper-quiet, 120mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.

Full Modular
Cable Management
Allows users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow for improved cooling performance.

Compact Size
Compared to typical power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.

Power
Total power 850 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 10 - 5 A
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 120 W
Combined power (+12V) 849.6 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 70.8 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power Good signal delay range 100 - 150 ms
Power protection features Over current, Over voltage, Under voltage, Short circuit, Over power, Overheating, Surge & inrush protection (SIP), No load operation
Ports & interfaces
Motherboard power connector 20+4 pin ATX
Motherboard power cable length 60 cm
Number of SATA power connectors 6
SATA power cable length 450,570,690,810 mm
Number of SATA power cables 2
Peripheral (Molex) power connectors (4-pin) 2
Peripheral (Molex) power cable length 450,570,690,810 mm
PCI Express power connectors (6+2 pin) 3
PCI Express power connectors (12+4 pin) cable length 650 mm
PCI Express power connectors (12+4 pin) 1
CPU power connector (4+4 pin) Yes
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Platinum
ATX version 3.1
Bearing technology FDB
Design
Product colour Black
Cooling type Active
Fan diameter 12 cm
Number of fans 1 fan(s)
Illumination No
On/off switch Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Compliance certificates cTUVus, CB, RCM, CE, Federal Communications Commission (FCC), BSMI, UKCA, ICES, KCC, EAC
Certification TUV, 3C
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Packaging data
Package type Box
Logistics data
Warranty period 10 year(s)
Other features
Power plug type Type G
