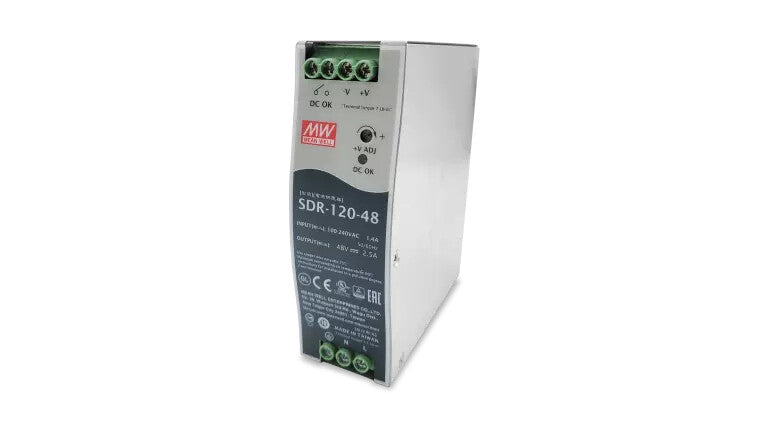

Allied Telesis SDR120-48 voltage transformer 48 V
£145.99
Couldn't load pickup availability
- 150% peak Load Efficiency
- Stable output power with 150% peak current capability
- Wide input voltage range
- Protections: peak-current, over-curren and over-temperature
- Extended operating temperature range
- Metal case
The ruggedized SDR Series industrial power supply is a functional accessory for Allied Telesis products to build a solution suitable for Smart Cities (e.g. Surveillance & Security), Industrial Ethernet, Transportation or any application requiring systems that function in harsh environment with extended operating temperature.
| Technical details | |
|---|---|
| Product colour | Blue, Grey |
| Material | Metal |
| Output power | 120 W |
| Peak power | 180 W |
| Efficiency | 90.5% |
| Mounting type | DIN rail |
| Power protection features | Over voltage, Overheating, Overload |
| Housing material | Metal |
| International Protection (IP) code | IP20 |
| Output voltage | 48 V |
| DC voltage range | 124 - 370 V |
| AC voltage range | 48 - 55 V |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 88 - 264 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | -25 - 70 °C |
| Weight & dimensions | |
|---|---|
| Height | 113.5 mm |
| Depth | 125.2 mm |
| Width | 40 mm |
