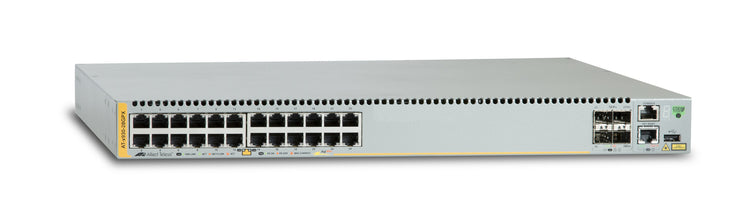

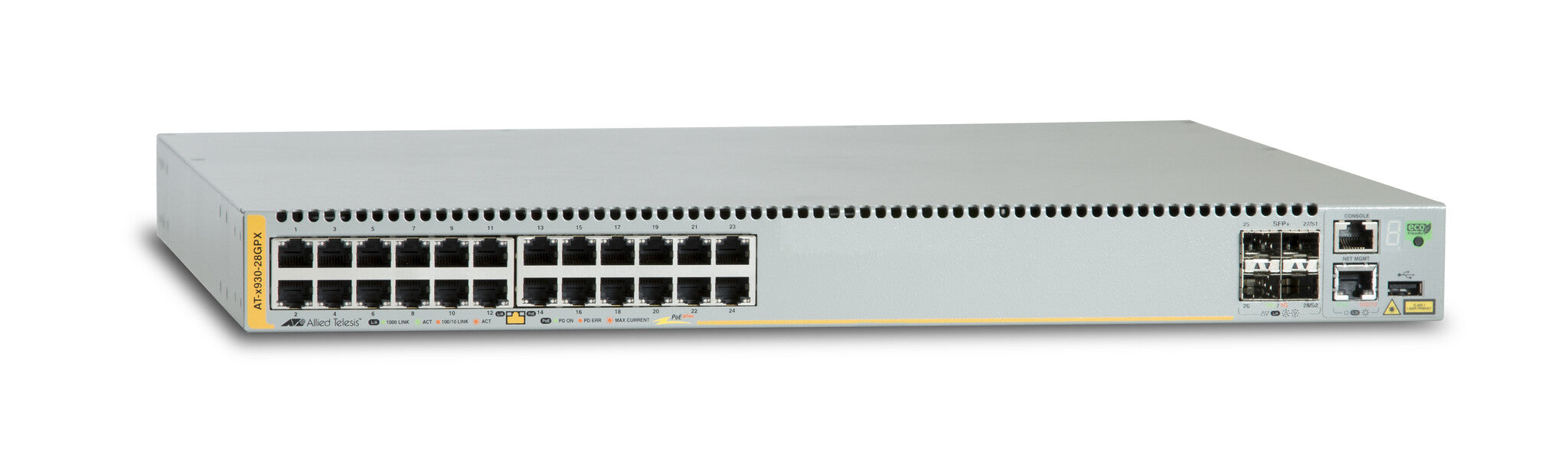

Allied Telesis AT-x930-28GPX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
£4,240.99
Couldn't load pickup availability
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support 100BASE-TX, 1000BASE-TX
- MAC address table: 64000 entries Switching capacity: 2.88 Gbit/s
- Rack mounting Stackable
- Power over Ethernet (PoE)
The Allied Telesis x930-28GPX features 24 Gigabit ports with 4 10 Gigabit uplinks, and dual hot-swap power supplies for a fully resilient solution. Long-distance stacking of up to 8 units supports distributed environments, and Power over Ethernet provides the full 30 watts of PoE+ on all ports supporting today’s high-power devices.
| Management features | |
|---|---|
| MIB support | Y |
| System event log | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 2000 |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-TX |
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Latency (10 Gbps) | 2.6 µs |
| Latency (1 Gbps) | 3.6 µs |
| Throughput | 214.3 Mpps |
| Switching capacity | 2.88 Gbit/s |
| MAC address table | 64000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
|---|---|
| Multicast MAC address table | 2000 entries |
| Multicast support | Yes |
| Design | |
|---|---|
| Safety | UL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1, UL, cUL |
| LED indicators | Yes |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Noise level | 56 dB |
| Expansion module support | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 84 W |
| AC input frequency | 47/63 Hz |
| AC input voltage | 90 - 260 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 301 BTU/h |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.1 kg |
| Height | 44 mm |
| Depth | 420 mm |
| Width | 440 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
