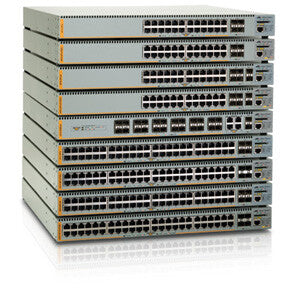

Allied Telesis AT-X610-24TS-POE+ network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Couldn't load pickup availability
- Managed L3 Web-based management SNMPv1, v2c, v3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 32000 entries Switching capacity: 96 Gbit/s
- Access Control List (ACL)
- Rack mounting Stackable
- Power over Ethernet (PoE)
The switch offers high levels of flexibility, featuring 20 10/100/1000T PoE+ ports and 4 SFP combo ports for connectivity, plus the option to stack up to eight devices. VCStack™ provides excellent resilience ensuring minimal network downtime by re-routing traffic should network failures occur, while allowing a stack of switches to be managed as a single entity. Further network resilience is also provided with the use of optional redundant power supplies.
- Allied Telesis Management Framework (AMF)
- 20 x 10/100/1000T PoE+ ports
- 4 x 1000X SFP or 10/100/1000T combo ports
- 1 x expansion bay
- AlliedWare Plus™ feature-rich operating system
- Virtual Chassis Stacking (VCStack™)
- Long-distance Stacking
- Stackable up to eight devices
- Ethernet Protection Switched Ring (EPSRing™)
- Access Control Lists (ACLs)
- Quality of Service (QoS)
- Voice VLAN
- VLAN Double Tagging (Q-in-Q)
- TACACS+
- Link Layer Discovery Protocol (LLDP)
- Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED)
- sFlow
- OSPFv3
- Virtual Routing and Forwarding (VRF) Lite
- Power over Ethernet plus (PoE+)
- Redundant Power Supply Option
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3at |
| Port mirroring | Yes |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 96 Gbit/s |
| Throughput | 71.4 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Security | |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SSH, SSL/TLS |
| SSH/SSL support | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMPv1, v2c, v3 |
| Switching protocols | IGMPv3, IPv6, MLDv2 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 92 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 420 mm |
| Height | 44 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Certificates | |
|---|---|
| Certification | UL60950-1, CAN/CSA-C22.2, No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS, 60950.1 |
