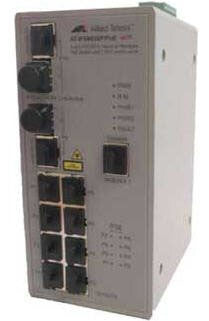

Allied Telesis AT-IFS802SP Managed Fast Ethernet (10/100) Grey
£613.99
Taxes included in the price
Couldn't load pickup availability
- Managed Web-based management SNMP v1/v2c/v3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
- MAC address table: 8000 entries Switching capacity: 5.6 Gbit/s
8-Port 10/100T Industrial Managed Switch with 2 SFP Combo Ports
The Allied Telesis AT-IFS802SP is a high performance and cost-effective Industrial managed switch that meets the high reliability requirements of industrial network operations.
Key Features
- 5.6Gbps Switching capacity;.
- Supports 100/1000Mbps SFPs;
- Up to 8K MAC address table;
- 12 - 48 VDC Redundant power inputs;
- IP 30 Metal Case;
- Support X-Ring function;
- SNMP v1/v2c/v3, Web, Telnet, CLI.
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Flow control support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 5.6 Gbit/s |
| Packet buffer memory | 0.13 MB |
| Security | |
|---|---|
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
| Design | |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| International Protection (IP) code | IP30 |
| Performance | |
|---|---|
| Buffer size | 4096 KB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 272761 h |
| Power | |
|---|---|
| Output voltage | 24 V |
| Output current | 1 A |
| Power consumption (typical) | 8.064 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 72 mm |
| Depth | 115 mm |
| Height | 152 mm |
| Weight | 1.34 kg |
| Packaging content | |
|---|---|
| User guide | Yes |
| Certificates | |
|---|---|
| Certification | UL, cUL, CE, FCC, RoHS, WEEE |
