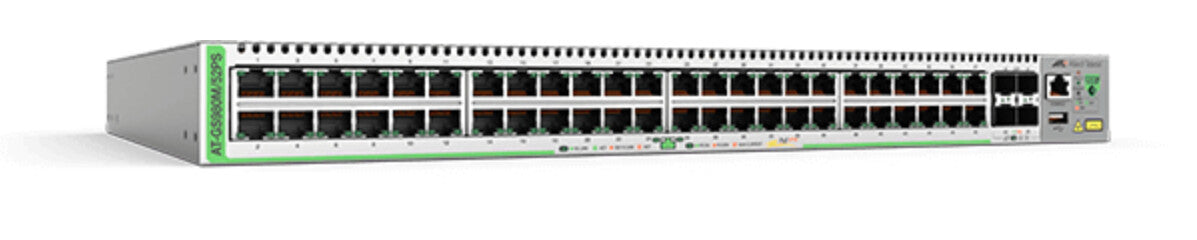

Allied Telesis AT-GS980M/52PS-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Allied Telesis AT-GS980M/52PS-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Allied Telesis
£1,547.99
Stock Available: 0
  • AlliedWare Plus™ operating system
  • Autonomous Management Framework™ (AMF) edge node
  • Active Fiber Monitoring
  • Ethernet Protection Switched Ring (EPSR™)
  • PoE power budget of 740 Watts
  • Continuous Power over Ethernet (PoE+)
  • Static Routing and RIP
  • DHCP snooping
  • IEEE 802.1x/MAC/Web authentication support
  • Loop Protection
  • Eco-friendly
  • Web-based Graphical User Interface (GUI)

The Allied Telesis CentreCOM GS980M Series of Layer 3 Gigabit switches enable a cost-effective and fully managed network. A high-density, space saving solution, with Power over Ethernet (PoE+) to connect and power devices such as video surveillance cameras and IP phones, makes the GS980M Series ideal for applications at the network edge.

Overview
Allied Telesis GS980M Series switches provide an excellent access solution for today’s networks, supporting Gigabit to the desktop for maximum performance. Deploying the GS980M as an AMF edge node when an AMF Master switch is available in the network, helps reduce network running costs by automating and simplifying many day-to-day administration tasks. 48 Gigabit ports and 4 SFP uplinks enable high-density and secure connectivity at the network edge, and the PoE+ model can supply up to 30 Watts to powered end-points.

Management features
MIB support SNMP MIB
System event log Yes
Configuring Location Settings (CLI) Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L3
Switch type Managed
Ports & interfaces
Fiber optic connector SFP
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
Number of VLANs 4094
Virtual LAN features Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
VLAN support Yes
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
Spanning tree protocol Yes
IP routing Yes
Full duplex Yes
Port mirroring Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
10G support Yes
Networking standards IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Optical fiber
Switching optical modules type 100 Gigabit Ethernet
Fiber ethernet cabling technology 100BASE-X, 1000BASE-X
Data transmission
Packet buffer memory 1.5 MB
Jumbo frames 10000
Jumbo frames support Yes
Static route Yes
Latency (1 Gbps) 3.8 µs
Latency (10-100 Mbps) 6.8 µs
Forwarding rate 77.4 Mpps
Switching capacity 104 Gbit/s
MAC address table 16000 entries
Security
Loop protection Yes
Security algorithms 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS
Authentication MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS
MAC address filtering Yes
Password protection Yes
SSH/SSL support Yes
BPDU filtering/protection Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP snooping
Multicast features
Multicast support Yes
Protocols
Routing protocols RIP, RIP-2
Management protocols SNMP
Design
Electromagnetic compatibility EN55024
Wall mountable Yes
LED indicators Yes
Product colour Grey
Rack mounting Yes
Performance
Noise level 42 dB
Flash memory 64 MB
Internal memory 256 MB
Memory type DDR-SDRAM
Power
Power consumption (max) 909 W
Power consumption (typical) 48 W
Input current 1.0 A
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 24 W
Power over Ethernet (PoE) power per port 48 W
Power over Ethernet plus (PoE+) ports quantity 48
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 164 BTU/h
Non-operating altitude 0 - 4000 m
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 5.8 kg
Height 44 mm
Depth 359 mm
Width 441 mm
Packaging data
Package weight 7.8 kg
Package height 150 mm
Package depth 520 mm
Package width 575 mm
Certificates
Certification UL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1UL, cUL, UL-EURoHS
Logistics data
Harmonized System (HS) code 85176990
