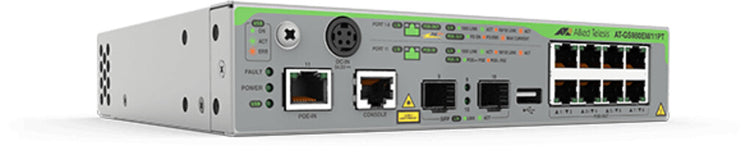

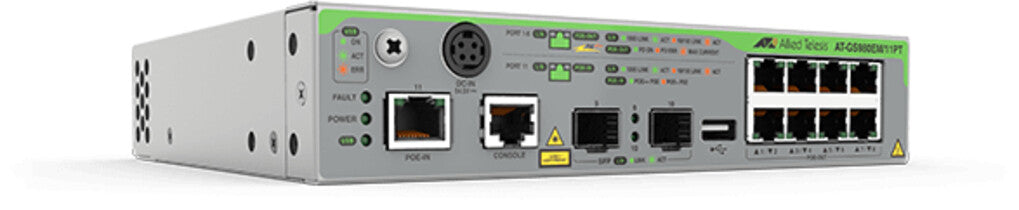

Allied Telesis AT-GS980EM/11PT-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Couldn't load pickup availability
- AlliedWare Plus Enterprise-class operating system
- Allied Telesis Autonomous Management Framework™ (AMF) edge node
- Power by PoE from the GS980EM/10H and pass-through PoE to end devices, or power with a separate AC power adapter
- 30W PoE+ per port for connecting and powering end devices
- Active Fiber Monitoring secures uplink connectivity
- Fanless design provides silent operation
- DIN rail and rack-mount options support flexible deployment
Gigabit Layer 3 Lite PoE++/PoE Pass-through Switches
The Allied Telesis GS980EM Series of Gigabit Layer 3 Lite PoE++/PoE pass-through switches offer an impressive set of features in a compact design. Ideal for deployment at the network edge, the GS980EM Series feature flexible Power over Ethernet capabilities to support IoT device connectivity in today’s converged business environments.
Overview
Allied Telesis GS980EM Series are secure and reliable, offering 8 x Gigabit PoE enabled ports and 2 x SFP uplinks, and providing a high value solution for flexible PoE at the network edge.
The GS980EM/10H can provide up to 90 Watts (PoE++) on all ports. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting and lighting controllers, and more. The GS980EM/10H requires a PWR300 external power supply to operate and provide PoE power. Up to three PWR300 PSUs can be used to increase the available PoE power.
The GS980EM/11PT can supply up to 30 Watts (PoE+) to connected devices. It can be powered by an AC power adapter, or by PoE(1). When deployed together, the GS980EM/11PT can be powered by the GS980EM/10H, while PoE pass-through enables power from the GS980EM/10H to pass through the GS980EM/11PT to power connected end points.
| Management features | |
|---|---|
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | SFP |
| Fiber ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| Virtual LAN features | Private VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| Forwarding rate | 16.4 Mpps |
| Switching capacity | 24 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, PEAP, SHA-1, SHA-2, SHA-256, SSH, SSL/TLS, TLS, TTLS |
| Authentication | MAC-based authentication, Web-based authentication |
| BPDU filtering/protection | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | OSPF, RIP, RIP-2 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
|---|---|
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
| LED indicators | Yes |
| Product colour | Grey |
| Form factor | 1U |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Export Control Classification Number (ECCN) | 5A992C |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Memory type | DDR3-SDRAM |
| Power | |
|---|---|
| Power consumption (max) | 98 W |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) pass through | Yes |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 75 BTU/h |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.6 kg |
| Height | 42.5 mm |
| Depth | 180 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 3.5 kg |
| Package height | 151 mm |
| Package depth | 336 mm |
| Package width | 417 mm |
| Certificates | |
|---|---|
| Certification | EN55024, EN61000-3UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1UL, cULRoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8517.62.0050 |
