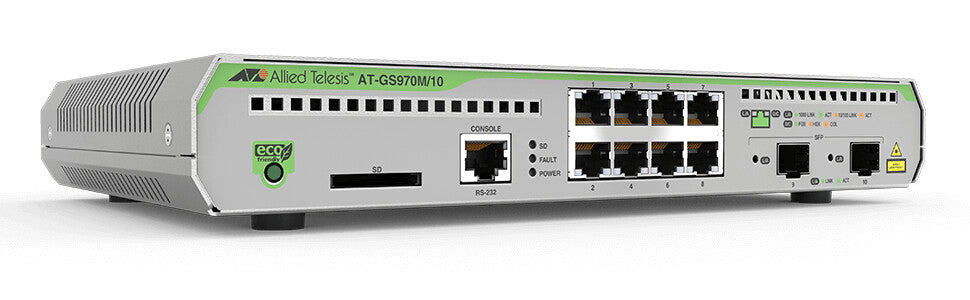

Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
£486.99
Couldn't load pickup availability
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- 10G support
- MAC address table: 16000 entries Switching capacity: 20 Gbit/s
- Access Control List (ACL)
- Rack mounting
- Power over Ethernet (PoE)
The Allied Telesis CentreCOM® GS970M/10PS Layer 3 managed switch features eight 10/100/1000T Gigabit Ethernet ports and two 100/1000X SFP ports for secure connectivity at the network edge.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 2048 |
| VLAN support | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.2, IEEE 802.3 |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 3.4 µs |
| Latency (10-100 Mbps) | 7.8 µs |
| Switching capacity | 20 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Product colour | Grey |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Noise level | 33 dB |
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 124 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 55 BTU/h |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.1 kg |
| Height | 42.5 mm |
| Depth | 275 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 3.45 kg |
| Package height | 150 mm |
| Package depth | 360 mm |
| Package width | 430 mm |
