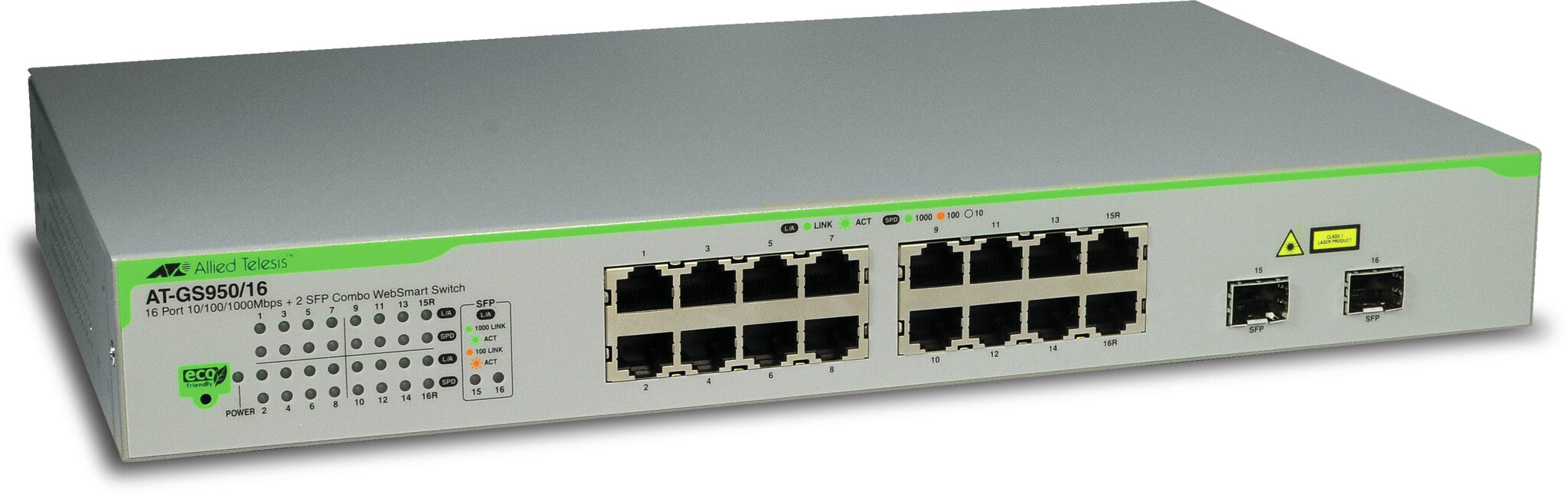

Allied Telesis AT-GS950/16-50 Managed L2 Gigabit Ethernet (10/100/1000) 1U White

Allied Telesis AT-GS950/16-50 Managed L2 Gigabit Ethernet (10/100/1000) 1U White

Allied Telesis
£313.99
Stock Available: 0
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 16 Console port: RJ-45
  • 1000BASE-T, 100BASE-T, 10GBASE-T
  • MAC address table: 8000 entries
  • 1U Rack mounting

16-port 10/100/1000T eco-friendly WebSmart switch with 2 SFP combo ports

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 2
Console port RJ-45
Power connector DC-in jack
Network
Networking standards IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology 1000BASE-T, 100BASE-T, 10GBASE-T
Port mirroring Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 8000 entries
Throughput 1488 Mpps
Packet buffer memory 0.5 MB
Design
Rack mounting Yes
Stackable No
Form factor 1U
Product colour White
LED indicators Yes
Performance
Internal memory 8 MB
Flash memory 2 MB
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 0.3 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 352 mm
Depth 256 mm
Height 43.2 mm
Weight 2.38 kg
Certificates
Certification UL 1950
FCC/EN55022
VCCI
C-Tick
EN60950 (TUV)
EN55024
CE
Logistics data
Harmonized System (HS) code 85176990
