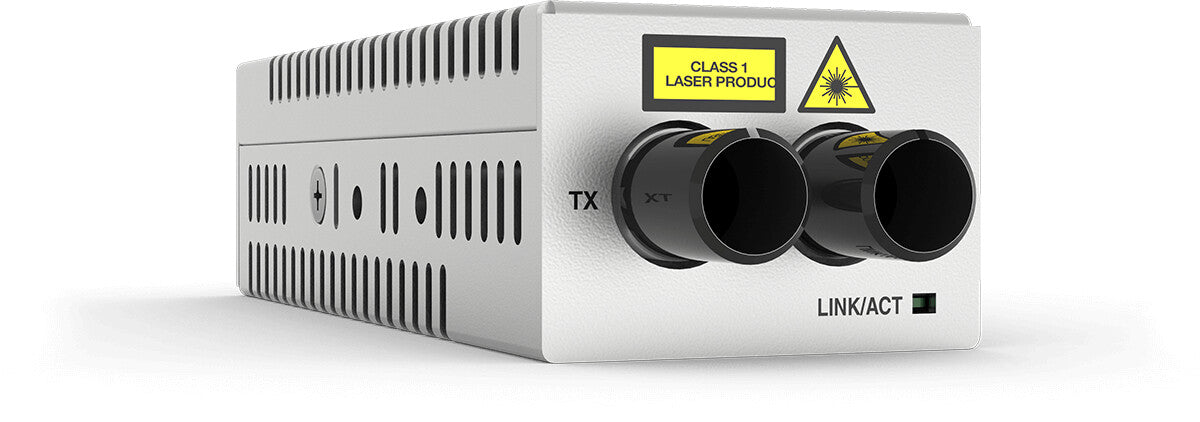

Allied Telesis AT-DMC1000/ST-00 network media converter 1000 Mbit/s 850 nm Multi-mode Grey
£292.99
Couldn't load pickup availability
- Wired
- 1000 Mbit/s 550 m 850 nm
- 1000BASE-T
- 1000BASE‑SX
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode Fiber ports quantity: 2 ST
- Grey
This desktop media converter features 1000T to 1000SX conversion with ST multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE‑SX |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Performance | |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Features | |
|---|---|
| Internal | No |
| Product colour | Grey |
| LED indicators | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | ST |
| Power | |
|---|---|
| Power consumption (typical) | 1.5 W |
| Weight & dimensions | |
|---|---|
| Width | 31.8 mm |
| Depth | 91.4 mm |
| Height | 21.6 mm |
| Weight | 113 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
