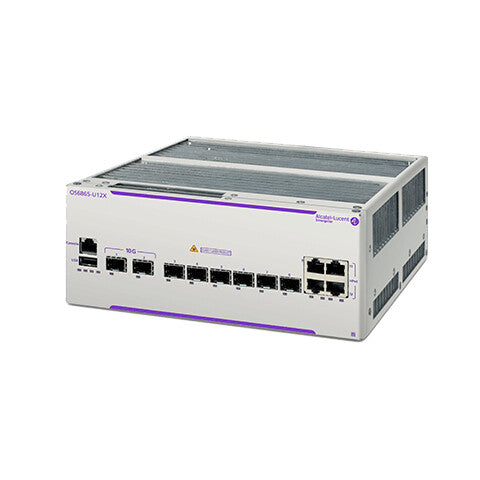

Alcatel-Lucent Enterprise OS6865-U12X-CH network switch Unmanaged L2/L3 Gigabit Ethernet (10/100/1000) Power
Alcatel-Lucent Enterprise OS6865-U12X-CH network switch Unmanaged L2/L3 Gigabit Ethernet (10/100/1000) Power

Alcatel-Lucent Enterprise OS6865-U12X-CH network switch Unmanaged L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Grey, White

Alcatel-Lucent · MPN: OS6865-U12X-CH
£3,351.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,117.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Internal memory2000 MB
  • Weight5.17 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • Offer IP and Gigabit Ethernet in rugged, industrial or outdoor environments
  • Run critical applications securely and reliably
  • Power Ethernet devices at the edge of your network (PoE models only)

Designed for industrial environments this Layer 3 industrial switch supports harsh, tough industrial conditions and temperatures, delivers reliable, flexible, redundant and secure infrastructure.

The Alcatel-Lucent OmniSwitch 6865 is a high-performance hardened PoE switch that operates at extreme temperatures and is designed to be deployed in transportation and traffic control systems, power utilities, video surveillance and other outdoor installations. The OS6865 has a generous PoE budget and HPoE to power wireless access points, card readers, PTZ cameras, digital signage and sensors.

Specifications

Management features

Switch typeUnmanaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic shapingYes
ARP inspectionYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity6
SFP+ module slots quantity2
Console portUSB
USB 2.0 ports quantity1
Show all 59 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.11ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z
10G supportYes
Port mirroringYes
IP routingYes
Full duplexYes
Active link detectionYes
Head-of-line (HOL) blockingYes
Spanning tree protocolYes
Broadcast storm controlYes
Link aggregationYes
Auto-sensingYes
Flow control supportYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN, Stacked VLAN
Number of VLANs4000

Data transmission

MAC address table48000 entries
Switching capacity60 Gbit/s
Jumbo frames supportYes
Jumbo frames9216

Security

DHCP featuresDHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
BPDU filtering/protectionYes
AuthenticationMAC-based authentication
SSH/SSL supportYes
Loop protectionYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Form factor2U
Product colourGrey, White
LED indicatorsYes
Wall mountableYes

Performance

Internal memory2000 MB
Flash memory2000 MB

Power

Power sourcePoE
Power consumption (typical)29 W
Power consumption (max)35.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget300 W

Operational conditions

Operating temperature (T-T)-40 - 74 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 3962.4 m

Weight & dimensions

Width215.6 mm
Depth260 mm
Height88.1 mm
Weight5.17 kg
