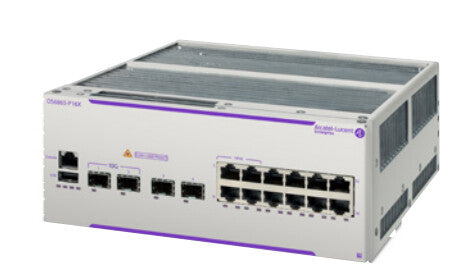

Alcatel-Lucent Enterprise OS6865-P16XD network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey, White

Alcatel-Lucent · MPN: OS6865-P16XD
£3,739.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,246.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • Managed L2/L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 12 Console port: USB
  • 10G support
  • MAC address table: 48000 entries Switching capacity: 68 Gbit/s
  • Access Control List (ACL)
  • Rack mounting
  • Power over Ethernet (PoE)

The Alcatel-Lucent OmniSwitch® 6865 series of switches are industrial grade, high-density, advanced Ethernet platforms designed for operating reliably in the harshest of environmental & severe temperature environments.

OS6865 switches are rugged, high bandwidth switches that are ideal for industrial and mission-critical applications that require wider operating temperature ranges, stringent EMC/EMI requirements and an optimized feature set for high
security, reliability, performance and easy management. These switches run on the widely deployed & field-proven AlcatelLucent Operating system offering SPB-M based VPNs and other advanced routing & switching capabilities.

The OS6865 series offers a unique mix of features to cater to the Hardened Ethernet applications such as IEEE 1588v2 PTP capabilities for timing requirements of industrial devices, HPoE (75W PoE) for those power hungry devices on the access network, SPB-M for fast, cost-efficient roll-out of VPN services on the edge and a comprehensive suite of security features
to secure the network edge. These switches are easy to deploy with our award winning Intelligent-Fabric technology which offers out-of-the-box plug-and-play, Zero-touch provisioning and network automation. The OS6865 family offers advanced system & network level resiliency features and convergence through standardized protocols.

These versatile industrial switches are ideal for deployment in transportation and traffic control systems, power
utilities, video surveillance systems and outdoor installations.

The OmniSwitch 6865 offers customers Gigabit fixed-configuration switches with up to 75 watts of PoE per port and power supply options that accommodate the most demanding requirements. The switch can be mounted on DIN rail, wall/panel or a 19-inch rack. It has built-in 10 Gigabit SFP+ ports that support 10 Gigabits and 1000-X, a USB port and a console port.

Specifications

Management features

Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic shapingYes
ARP inspectionYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity12
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity2
SFP module slots quantity2
SFP+ module slots quantity2
Console portUSB
USB 2.0 ports quantity1
Compatible memory cardsNot supported
Show all 67 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.11ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z
10G supportYes
Port mirroringYes
IP routingYes
Full duplexYes
Active link detectionYes
Head-of-line (HOL) blockingYes
Spanning tree protocolYes
Broadcast storm controlYes
Link aggregationYes
Auto-sensingYes
Flow control supportYes
VLAN supportYes
Virtual LAN featuresStacked VLAN, Private VLAN, Protocol-based VLAN
Number of VLANs4000

Data transmission

MAC address table48000 entries
Switching capacity68 Gbit/s
Jumbo frames supportYes
Jumbo frames9216

Security

DHCP featuresDHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
BPDU filtering/protectionYes
AuthenticationMAC-based authentication
SSH/SSL supportYes
Loop protectionYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Product colourGrey, White
LED indicatorsYes
DIN rail mountingYes
Wall mountableYes

Performance

Internal memory2000 MB
Mean time between failures (MTBF)1044414 h

Power

Input current3.75 - 11.25 A
Input voltage20 - 60 V
Output power180 W
Power consumption (typical)32 W
Power consumption (max)34 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget320 W

Operational conditions

Operating temperature (T-T)-40 - 74 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 3962.4 m
Heat dissipation116 BTU/h

Weight & dimensions

Width216 mm
Depth260 mm
Height88.1 mm
Weight5.07 kg

Certificates

CertificationUL 60950, IEC 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1-03, NOM-019 SCFI, AS/NZ TS-001, 60950:2000, UL-AR, UL-GS, EN 60825-1, EN 60825-2, CDRH, FCC CRF Title 47 Subpart B (Class A), • VCCI (Class A), AS/NZS 3548 (Class A), CE marking for European countries (Class A)
