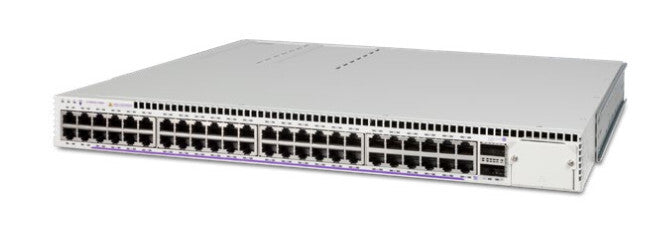

Alcatel-Lucent Enterprise OS6860N-P48M-EU network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Grey
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £2,541.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L3 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: Micro-USB
- 10G support
- MAC address table: 64000 entries Switching capacity: 1020 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power over Ethernet (PoE)
The Alcatel-Lucent OmniSwitch® 6860 is a family of advanced Stackable Gigabit and Multi- gigabit Ethernet switches offering high-performance, scalability, resiliency and security. With high-speed flexible uplinks, 200G stacking, industry leading 95W PoE, and high density 10G multi-gigabit ports ready for Wi-Fi 6, these platforms are the right choice for the next generation of enterprise switching networks. Alcatel-Lucent OmniSwitch 6860s are high performance and high availability switches that offer unmatched features in terms of quality of service (QoS), mobility, programmability and security for network edge deployments. The OmniSwitch 6860 family enables seamless mobility for users and devices with a high degree of integration between the wired and wireless LAN. The family includes support for next generation wireless LAN standards, Wi-Fi 6 and 802.11ac wave 2 and mix of uplink speeds up to 100G. With best-in-class 95W IEEE 802.3bt compliant support, OmniSwitch 6860 switches are ready for newest PoE and IoT devices, be it the pan-tilt- zoom camera or Wi-Fi 6 access points. The OmniSwitch 6860 family is the first in the industry to offer application monitoring and visibility for network analytics making it ready to meet the evolving business needs of enterprise networks. These switches run on the widely deployed and field-proven Alcatel-Lucent Operating System (AOS) offering programmability, industry leading network automation features and maximum investment protection.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Console port | Micro-USB |
| USB 2.0 ports quantity | 1 |
Show all 54 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.3bt, IEEE 802.3ac, IEEE 802.3bz, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3u, IEEE 802.1s, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.3az |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| MAC address table | 64000 entries |
|---|---|
| Switching capacity | 1020 Gbit/s |
| Throughput | 758.9 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Security
| DHCP features | DHCP client, DHCP server |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Internal memory | 4000 MB |
|---|---|
| Flash memory | 16000 MB |
Power
| Power consumption (max) | 261.1 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 440 mm |
| Height | 44 mm |
