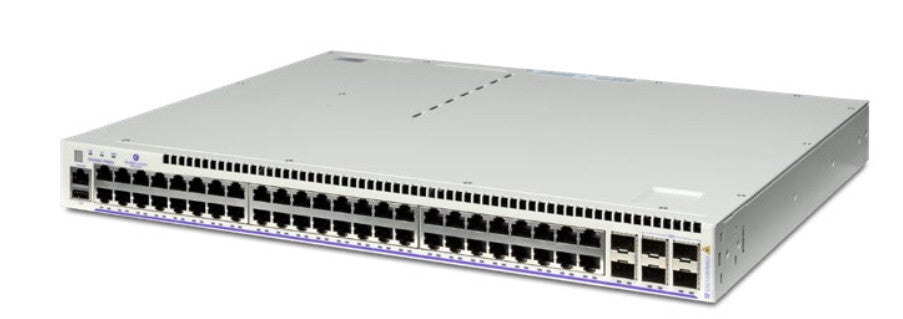

Alcatel-Lucent Enterprise OS6560-P48X4-UK network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,021.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L2/L3 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
- 10G support
- MAC address table: 16000 entries Switching capacity: 216 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power over Ethernet (PoE)
The Alcatel-Lucent OmniSwitch™ 6560 Stackable Gigabit and Multi-Gigabit Ethernet LAN value switch family is an industry leading campus access solution for enterprise networks. With multi-gigabit ports for high-speed IEEE 802.11ac devices, 10 GigE uplinks and 20 GigE stacking, the OmniSwitch 6560 is the right solution for your next generation network.
Offering a design optimized for flexibility and scalability as well as low power consumption, the OmniSwitch 6560 is an outstanding edge solution. It uses the field-proven Alcatel-Lucent Operating System (AOS) to deliver highly available, secure, self-protective, easily managed and eco-friendly networks. The Alcatel-Lucent OmniSwitch 6560 family is embedded with the latest technology innovations, and offers maximum investment protection.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Show all 55 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1D, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 216 Gbit/s |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Security
| DHCP features | DHCP client, DHCP server |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
Performance
| Internal memory | 1000 MB |
|---|---|
| Flash memory | 2000 MB |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 48 |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 4.68 kg |
