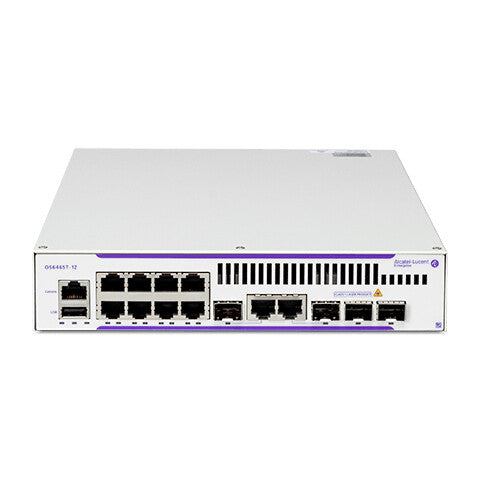

Alcatel-Lucent Enterprise OS6465T-12-EU network switch Unmanaged L2/L3 Gigabit Ethernet (10/100/1000) 1U Grey
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £175.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Unmanaged L2/L3
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RS-232/RJ-45
- 10G support
- Access Control List (ACL)
- 1U Rack mounting
- AC
The Alcatel-Lucent OmniSwitch 6465T-12 and 6465T-P12 models are power and acoustically optimized, with a half-rack width, and have a fixed configuration chassis in a 1 RU form factor. All models can operate without fan up to 45°C ambient temperature and with fan can operate up to 60°C. Both models have an internal power supply. PoE model is 802.3af/802.3at compliant and offers 115 W of power for PoE attached devices. All ports of OmniSwitch 6465T-12 and OmniSwitch 6465T-P12 are capable of IEEE 1588v2 and MACsec. OmniSwitch 6465T switches can form a virtual chassis between any models creating a single chassis- like entity using 1G SFP ports. Up to four switches can be connected in a virtual chassis configuration with option to scale up to eight in future. For forming virtual chassis connections, any SFP transceiver or SFP+ Direct attach cables can be used on 1G SFP ports
Specifications
Management features
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| SFP module slots quantity | 2 |
| Console port | RS-232/RJ-45 |
| USB 2.0 ports quantity | 1 |
Show all 40 specificationsShow fewer specifications
Network
| 10G support | Yes |
|---|---|
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Jumbo frames support | Yes |
|---|---|
| Jumbo frames | 9216 |
Security
| DHCP features | DHCP relay, DHCP server |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Internal memory | 1000 MB |
|---|---|
| Flash memory | 1000 MB |
Power
| Power source | AC |
|---|---|
| Power consumption (typical) | 8.5 W |
| Power consumption (max) | 16 W |
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 217 mm |
|---|---|
| Depth | 280 mm |
| Height | 44 mm |
| Weight | 1.7 kg |
