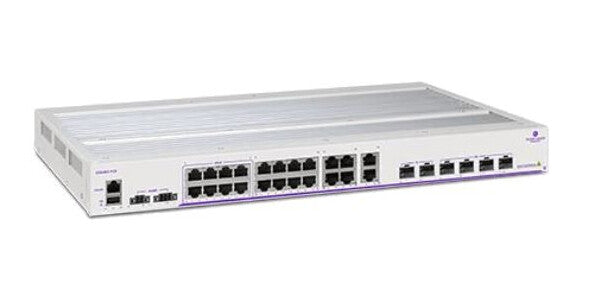

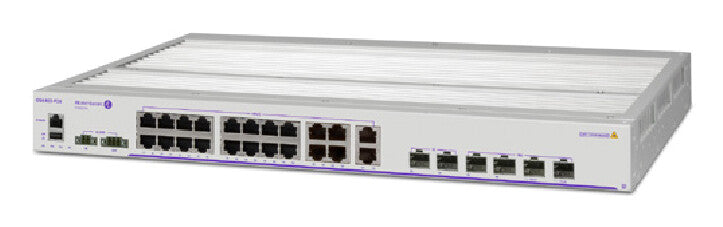

Alcatel-Lucent Enterprise OS6465-P28D network switch L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,116.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- L3 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 22 Console port: RS-232/RJ-45
- 10G support
- Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power over Ethernet (PoE)
OS6465 switches are a family of hardened, compact, fan-less gigabit Ethernet switches that have been designed specifically for industrial applications. The switches run on the widely deployed and field-proven Alcatel-Lucent Operating system that offers high security, reliability, performance and easy management. These switches are designed to operate in extended temperatures, offer higher EMI/EMC tolerance, a flexible range in power inputs options and high surge protection. The OS6465 series offers advanced PoE capabilities with 60W PoE per port and Fast / Perpetual PoE* support to power range of new age devices from PTZ IP cameras on toll booths, LED lights and building management gateways in smart buildings to industrial control systems. These switches are easy to deploy and offer out-of-the- box plug-and-play, Zero-touch provisioning, network automation and disaster recovery options. These switches support IEEE 1588v2 PTP for the nanosecond-level precision timing requirements of industrial devices and applications. With support for MACSec on all ports, OS6465 enables end-to-end encrypted networks. The OS6465 family offers advanced system and network level resiliency features and convergence through standardized protocols in a space efficient form factor. These versatile industrial switches are ideal for deployment in transportation and traffic control systems, utilities, IP surveillance systems and outdoor installations, to name a few
Specifications
Management features
| Switch layer | L3 |
|---|---|
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Traffic shaping | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 22 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 4 |
| Console port | RS-232/RJ-45 |
| USB 2.0 ports quantity | 1 |
Show all 49 specificationsShow fewer specifications
Network
| 10G support | Yes |
|---|---|
| Port mirroring | Yes |
| Policy-based routing | Yes |
| IP routing | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Switching capacity | 128 Gbit/s |
|---|---|
| Forwarding rate | 95.3 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Security
| DHCP features | DHCP relay, DHCP server |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Grey |
| Reset button | Yes |
| LED indicators | Yes |
Performance
| Internal memory | 1024 MB |
|---|---|
| Flash memory | 1024 MB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 2103668 h |
Power
| Power source | AC |
|---|---|
| Input voltage | -20 - 70 V |
| Power consumption (max) | 32.19 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Total Power over Ethernet (PoE) budget | 285 W |
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Heat dissipation | 98.95 BTU/h |
Packaging content
| Manual | Yes |
|---|
