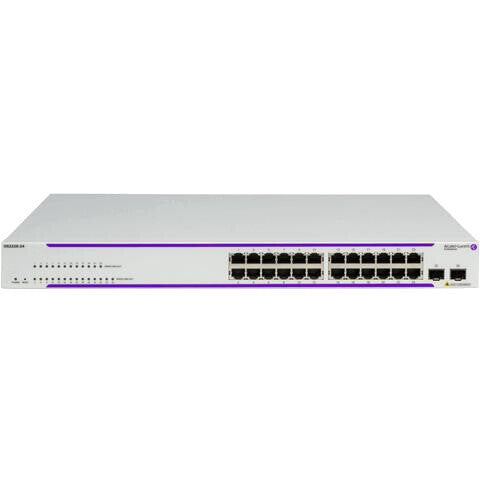

Alcatel-Lucent Enterprise OS2360-U24X-IT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over
Alcatel-Lucent Enterprise OS2360-U24X-IT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over

Alcatel-Lucent Enterprise OS2360-U24X-IT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Stainless steel

Alcatel-Lucent · MPN: OS2360-U24X-IT
£1,216.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £405.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • 24 and 48 Gigabit Ethernet data or PoE+ ports with line-rate performance
  • Gigabit Ethernet SFP uplink ports or 10 Gigabit Ethernet SFP+ uplink ports (X models)
  • 10 GigE virtual chassis bandwidth up to 4 units (stacking) or 216 ports
  • Perpetual and fast PoE+ support across all PoE models
  • Compact fan-less models for co-location work environments

The Alcatel-Lucent OmniSwitch 2360 Stackable Gigabit Ethernet LAN switch family delivers value and is optimised for small and medium businesses (SMB), as well as branch/campus workgroup solutions.

The enterprise-grade OmniSwitch 2360 family delivers high- performance, availability, security, and scalability. This family of switches provides a solid foundation to support business communications, applications, users and devices. Unified network management is employed for a consistent wired and wireless experience. The OmniSwitch 2360 family is embedded with the latest technology innovations and offers maximum investment protection.

Specifications

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Cloud-managedYes
Web-based managementYes
ARP inspectionYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
Show all 62 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Port mirroringYes
Policy-based routingYes
Spanning tree protocolYes
Link aggregationYes
Auto-sensingYes
Auto-negotiationYes
Auto MDI/MDI-XYes
Flow control supportYes
VLAN supportYes
Virtual LAN featuresTagged VLAN
Number of VLANs1024

Data transmission

MAC address table16000 entries
Switching capacity216 Gbit/s
Static routeYes
Number of static routes24
Jumbo frames supportYes
Packet buffer memory16 MB

Security

DHCP featuresDHCP Option 82, DHCP client, DHCP relay, DHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
Queue scheduling algorithmsStrict Priority Queue (SPQ), Weighted Round Robin (WRR)
Authentication typeRADIUS
AuthenticationMAC-based authentication
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourStainless steel
LED indicatorsYes
Number of fans1 fan(s)

Performance

Built-in processorYes
Processor frequency1000 MHz
Internal memory1024 MB
Flash memory512 MB
Noise level40 dB
Mean time between failures (MTBF)625000 h

Power

Power sourceAC
Power supply includedYes
Power consumption (max)61.2 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget370 W

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 95%
Heat dissipation211 BTU/h

Weight & dimensions

Width440 mm
Depth300 mm
Height44 mm
