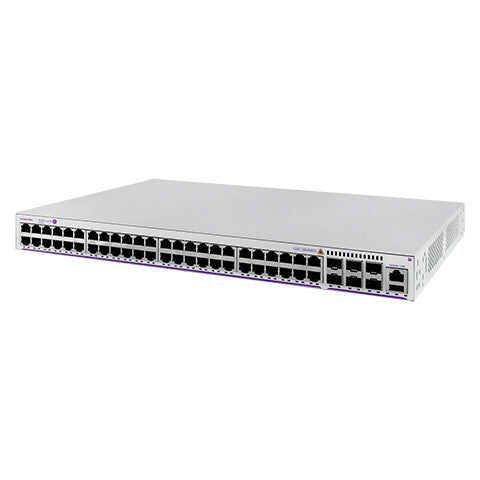

Alcatel-Lucent Enterprise OS2360-P48-IT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Stainless steel
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £340.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 24 and 48 Gigabit Ethernet data or PoE+ ports with line-rate performance
- Gigabit Ethernet SFP uplink ports or 10 Gigabit Ethernet SFP+ uplink ports (X models)
- 10 GigE virtual chassis bandwidth up to 4 units (stacking) or 216 ports
- Perpetual and fast PoE+ support across all PoE models
- Compact fan-less models for co-location work environments
The Alcatel-Lucent OmniSwitch 2360 Stackable Gigabit Ethernet LAN switch family delivers value and is optimised for small and medium businesses (SMB), as well as branch/campus workgroup solutions.
The enterprise-grade OmniSwitch 2360 family delivers high- performance, availability, security, and scalability. This family of switches provides a solid foundation to support business communications, applications, users and devices. Unified network management is employed for a consistent wired and wireless experience. The OmniSwitch 2360 family is embedded with the latest technology innovations and offers maximum investment protection.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| SFP+ module slots quantity | 2 |
| Fiber uplink ports quantity | 2 |
Show all 53 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| Port mirroring | Yes |
| IP routing | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Switching capacity | 216 Gbit/s |
|---|---|
| Forwarding rate | 107.1 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
Security
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Product colour | Stainless steel |
| Number of fans | 1 fan(s) |
Performance
| Built-in processor | Yes |
|---|---|
| Processor frequency | 1000 MHz |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Noise level | 40 dB |
| Mean time between failures (MTBF) | 625000 h |
Power
| Power source | AC |
|---|---|
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 4.2 kg |
