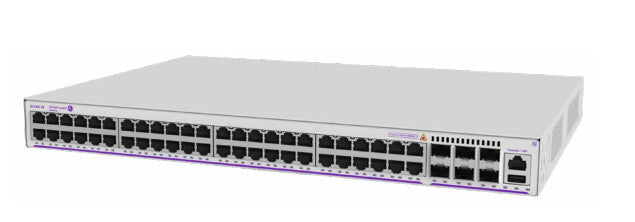

Alcatel-Lucent Enterprise OS2260-P48-IT network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £234.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Efficient power management; reduces operating expenses (OPEX), and lowers total cost of ownership (TCO) through low power consumption and dynamic PoE allocation, which delivers only the power needed by the attached device
- Cloud enabled with Alcatel-Lucent OmniVista Cirrus Network Management as a Service for a secure, resilient, and scalable cloud-based network management
- Triple speed (10/100/1G) user interfaces and fiber interfaces (SFPs) supporting 1000Base-X
- Future-ready support for multimedia applications with wire-rate multicast
OmniSwitch 2260 WebSmart Switch
The gigabit WebSmart switch family offers cost-effective and user-friendly web smart features, including secure static routing capabilities.
Business-class networks benefit from switches designed for high-speed desktop connectivity with secure wireless access, advanced network features and unified communications (IP telephony, video and converged solutions).
The Alcatel-Lucent OmniSwitch 2260 enables reliable business class network performance, including security, without paying for advanced network management features. These WebSmart switches offer a lower price alternative compared to managed switches for wired connectivity, while maintaining performance, Quality of Service (QoS) and scalability, using a simplified web management interface.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Number of management ports | 1 pc(s) |
| Fiber ports quantity | 6 |
| Fiber optic connector | SFP |
Show all 53 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3ak, IEEE 802.1p, IEEE 802.3u, IEEE 802.1s, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x |
|---|---|
| 10G support | No |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Number of VLANs | 62000 |
Data transmission
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 80.4 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
| Packet buffer memory | 16 MB |
Security
| DHCP features | DHCP Option 82, DHCP server, DHCP client, DHCP relay |
|---|---|
| IGMP snooping | Yes |
Multicast features
| Multicast support | Yes |
|---|---|
| Number of multicast groups filtered | 1000 |
| Multicast Listener Discovery (MLD) snooping | Multicast Listener Discovery (MLD) v1/v2 snooping |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | White |
| Number of fans | 1 fan(s) |
Performance
| Built-in processor | Yes |
|---|---|
| Processor frequency | 1000 MHz |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Noise level | 40 dB |
Power
| Power source | AC/DC/PoE |
|---|---|
| Power supply included | Yes |
| Power consumption (max) | 453.3 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 216 BTU/h |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 4.2 kg |
