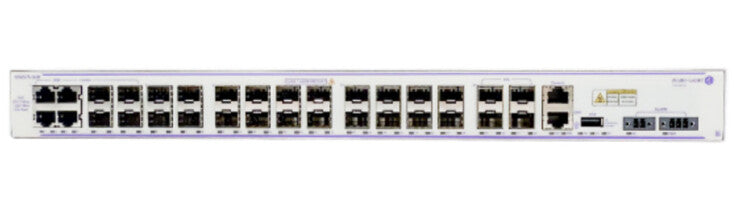

Alcatel-Lucent Enterprise OmniSwitch OS6575-U28 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,537.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Flexible industrial form factors and power options: Supports DIN-rail, wall/panel, and 19" rack mounting with dual redundant AC/DC power inputs for versatile industrial deployments
- Advanced network management and automation: Offers AOS CLI with Python/Bash scripting, WebView GUI, SNMP, REST APIs and NAPALM support for efficient automation and simplified operations
- Cloud-ready management with OmniVista® Cirrus: Enables secure, scalable, cloud-based network management with unified access, policy control, and advanced analytics
- Virtual Chassis for simplified scaling: Allows up to four switches to operate as a single logical device with remote VC and ISSU for greater redundancy and easier management
- Auto-fabric and zero-touch provisioning: Automates topology and protocol discovery to deliver plug-and-play deployment and consistent, error-free configuration
- Secure backup and fast field replacement: Provides encrypted USB-based backup and restore for rapid, low-downtime switch replacement in the field
- Extensive industrial certifications: Complies with key standards for power substations, rail, transportation, and marine environments to meet stringent industry requirements
The Alcatel-Lucent OmniSwitch 6575 series delivers rugged, fanless, and fully manageable Gigabit Ethernet switching engineered specifically for harsh and mission-critical industrial environments. With 19” rack-mount options, these compact, hardened DIN rail Ethernet switches withstand extreme temperatures, high EMI/EMC conditions, and demanding outdoor installations - making them ideal for intelligent transportation, rail networks, utilities, smart cities, and industrial automation.
Advanced 90W PoE, flexible power input options, and high surge protection enable seamless deployment of modern power-intensive devices such as PTZ cameras, LED lighting, and industrial controllers. To accelerate installation and reduce operational overhead, the OS6575 family provides zero-touch provisioning and network automation.
Designed for real-time and precision-dependent applications, the OS6575 series supports IEEE 1588v2 PTP, G.8275.1/.2, SyncE and MACsec-256 encryption, ensuring nanosecond-level timing accuracy and end-to-end secure communications.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Traffic shaping | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 20 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
Show all 72 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1AX, IEEE 802.1x, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.3ah, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ak, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.1Qbb |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| IPv4 routes | 8000 |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Stacked VLAN, Multiple VXLAN (MUX VLAN), Tagged VLAN |
| Number of VLANs | 4000 |
Data transmission
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 64 Gbit/s |
| Forwarding rate | 47.6 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Security
| DHCP features | DHCP relay, DHCP server, DHCPv6 server, DHCP snooping, DHCPv6 snooping, DHCP guarding, DHCPv6 client, DHCPv6 relay, DHCP Option 82 |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Queue scheduling algorithms | Priority queuing (PQ) |
| Authentication type | RADIUS, TACACS+, Network Access Control (NAC) |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Routing protocols | RIP-1, RIP-2 |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | White |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
Performance
| Internal memory | 2048 MB |
|---|---|
| Flash memory | 4096 MB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 333055 h |
Power
| Power source | AC/DC/PoE |
|---|---|
| Power supply included | Yes |
| Power consumption (max) | 60 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 204 BTU/h |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 295 mm |
| Height | 43.4 mm |
| Weight | 2.13 kg |
Packaging content
| Cables included | AC |
|---|---|
| Rack mount kit | Yes |
| Manual | Yes |
