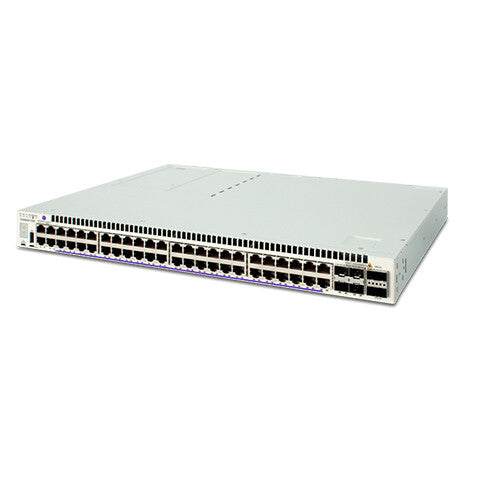

Alcatel-Lucent Enterprise OmniSwitch 6860 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £2,541.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed Web-based management SNMP, Telnet, FTP
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 48000 entries Switching capacity: 256 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included Power over Ethernet (PoE)
Designed for the most demanding converged networks: high-density, Unified Access switches with Smart Analytics in a compact form factor.
These compact, high-density Gigabit Ethernet (GigE) and 10 GigE platforms are designed for the most demanding converged networks. With advanced Unified Access features, Alcatel-Lucent OmniSwitch 6860 and 6860E switches allow users to experience a truly application fluent network. You can monitor and control the applications running in your network with their industry-leading hardware-assisted Deep Packet Inspection capabilities.
Offering comprehensive security features, they are well-equipped to secure the network edge. These high performance, versatile LAN switches can be positioned:
- At the edge of mid- to large-sized converged enterprise networks
- At the aggregation layer
- In a small enterprise network core
- In the data center for GigE server connectivity and SDN applications
Simplicity
Save time with out-of-the- box deployment, easy management and seamless convergence of your wired and wireless networks.
Flexibility
Meets any customer configuration need, whether it's a BYOD deployment or a Software Defined Network.
Cost-saving
Low power consumption, simplified management and hardware consolidation save money.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| QSFP+ module slots quantity | 2 |
| Fiber ports quantity | 6 |
| Fiber optic connector | QSFP+, SFP+ |
| USB 2.0 ports quantity | 1 |
Show all 72 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multiple VXLAN (MUX VLAN), Tagged VLAN |
| Number of VLANs | 4000 |
Data transmission
| MAC address table | 48000 entries |
|---|---|
| Switching capacity | 256 Gbit/s |
| Throughput | 190.6 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Security
| DHCP features | DHCP client, DHCP relay, DHCP server |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Root protection | Yes |
| BPDU filtering/protection | Yes |
| Security algorithms | EAP, HTTPS, MD5, SSH |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|---|
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
Protocols
| Management protocols | SNMP, Telnet, FTP |
|---|---|
| Virtual Router Redundancy Protocol (VRRP) | Yes |
| Routing protocols | BGP4, IS-IS, OSPF, RIP-1, RIP-2, RIPng, VRRP |
| Supported network protocols | IPv4, IPv6 |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Ventilation system | Front-to-back airflow |
| Number of fans | 1 fan(s) |
Performance
| Internal memory | 2048 MB |
|---|---|
| Flash memory | 2048 MB |
| Dying Gasp | Yes |
| Noise level | 43.5 dB |
| Mean time between failures (MTBF) | 121442 h |
Power
| Power supply included | Yes |
|---|---|
| Power consumption (typical) | 72.9 W |
| Power consumption (max) | 904 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 48 |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3962 m |
| Heat dissipation | 248.7 BTU/h |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 6.49 kg |
Certificates
| Certification | US UL 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1-03, NOM-019 SCFI, AS/NZ TS-001, UL-AR, UL-GS, CU, EAC, EN 60825-1, EN 60825-2, CDRH, IEC 60950-1/EN 60950, IEC 60950-1:2005, CCC, ANATEL, BSMI, KCC, FCC CRF Title 47 Subpart B (Class A), VCCI, AS/NZS 3548, EN 55022 (EMI & EMC ), EN 61000-3-2, EN 61000-3-3, EN 55024 |
|---|
