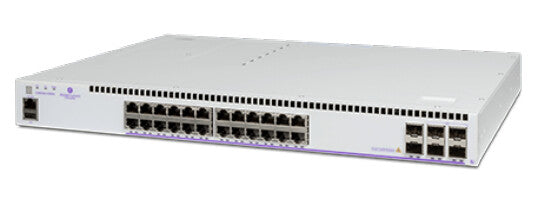

Alcatel-Lucent Enterprise OmniSwitch 6560 Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Stainless steel

Alcatel-Lucent · MPN: OS6560-P24X4-EU
£2,107.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £702.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • 24-port and 48-port, Power over Ethernet (PoE), non-PoE for fixed small form factor pluggable (SFP+) 10-G-ready interfaces
  • Support for 10 GigE stacking or 20 GigE stacking
  • Support for IEEE 802.3af, IEEE 802.3at and IEEE802.3bt compliant PoE
  • Internal modular AC redundant power supplies

The Alcatel-Lucent OmniSwitch 6560 Stackable Multi-Gigabit Ethernet LAN value switch family is an industry leading campus access solution for enterprise networks. With multi-gigabit ports for high-speed IEEE 802.11 ac devices, 10GigE uplinks and 20 GigE stacking, the OmniSwitch 6560 is the right solution for your next generation network.

Offering a design optimized for flexibility and scalability as well as low power consumption, the OmniSwitch 6560 is an outstanding edge solution. It uses the field-proven Alcatel-Lucent Operating System (AOS) to deliver highly available, secure, self-protective, easily managed and eco-friendly networks.

Specifications

Management features

Switch typeManaged
Switch layerL2+/L3
Quality of Service (QoS) supportYes
Cloud-managedYes
Web-based managementYes
ARP inspectionYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity6
Show all 65 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.1AE, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Port mirroringYes
Policy-based routingYes
Rate limitingYes
Head-of-line (HOL) blockingYes
Spanning tree protocolYes
Link aggregationYes
Auto-sensingYes
Auto-negotiationYes
Auto MDI/MDI-XYes
Flow control supportYes
VLAN supportYes
Virtual LAN featuresStacked VLAN, Tagged VLAN
Number of VLANs4000

Data transmission

MAC address table16000 entries
Switching capacity168 Gbit/s
Throughput125 Mpps
Static routeYes
Jumbo frames supportYes

Security

DHCP featuresDHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)Yes
IGMP snoopingYes
Queue scheduling algorithmsStrict Priority Queue (SPQ), Weighted Round Robin (WRR)
Authentication typeRADIUS
AuthenticationMAC-based authentication, Web-based authentication
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourStainless steel
LED indicatorsYes
Number of fans2 fan(s)

Performance

Internal memory1024 MB
Flash memory1000 MB
Noise level54 dB
Mean time between failures (MTBF)352000 h

Power

Power sourceAC
Power supply includedYes
Power consumption (max)42 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget600 W

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Heat dissipation143 BTU/h

Weight & dimensions

Width440 mm
Depth350 mm
Height44 mm
Weight4.88 kg

Packaging content

Cables includedAC
Rack mount kitYes
User guideYes
