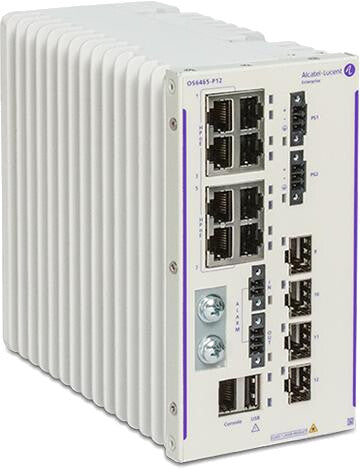

Alcatel-Lucent Enterprise OmniSwitch 6465 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet
Alcatel-Lucent Enterprise OmniSwitch 6465 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet

Alcatel-Lucent Enterprise OmniSwitch 6465 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

Alcatel-Lucent · MPN: OS6465H-P12-IT
£1,379.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £459.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Internal memory1024 MB
  • Weight2.13 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • Ideal for all types of PoE application requirements from outdoor wireless APs, to PTZ surveillance cameras and video displays
  • Operates at a wider temperature range, withstands greater shock, vibrations, surge and EMI/EMC variance
  • Alarm relays to connect external alarm systems
  • Field upgradable, highly redundant network solution maximizes network uptime
  • Provides precise nanosecond time synchronization
  • Out-of-the-box Zero-touch provisioning and network automation

Extended temperature network switches that mount on a DIN rail and support precision timing, deliver a high-performance network for IoT devices, cameras and wireless access points, and support special timing requirements.

Alcatel Lucent OmniSwitch 6465 switches are fully managed, gigabit Ethernet switches offering high security, reliability, performance and easy management. Switches are designed to operate in extended temperatures, offer higher EMI/EMC tolerance and surge protection. The DIN rail switches are ideal for a range of industrial applications such as intelligent transportation, railway and substations.

Specifications

Management features

Switch typeManaged
Switch layerL2/L3
Cloud-managedYes
Web-based managementYes
Traffic shapingYes
Traffic classificationYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
Console portRS-232
USB 2.0 ports quantity1
Show all 44 specificationsShow fewer specifications

Network

Networking standardsIEEE 1588v2, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G supportNo
IPv4 routes128
Link aggregationYes
Auto-sensingYes
Flow control supportYes
VLAN supportYes
Number of VLANs4000

Data transmission

MAC address table16000 entries
Switching capacity24 Gbit/s
Forwarding rate17.9 Mpps
Jumbo frames supportYes
Jumbo frames9216

Design

Rack mountingYes
StackableYes
DIN rail mountingYes

Performance

Internal memory1024 MB
Flash memory1024 MB
Mean time between failures (MTBF)1421933 h

Power

Power consumption (typical)11.79 W
Power consumption (max)18.71 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget240 W

Operational conditions

Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 4000 m
Heat dissipation40.22 BTU/h

Weight & dimensions

Width150 mm
Depth80 mm
Height150 mm
Weight2.13 kg
