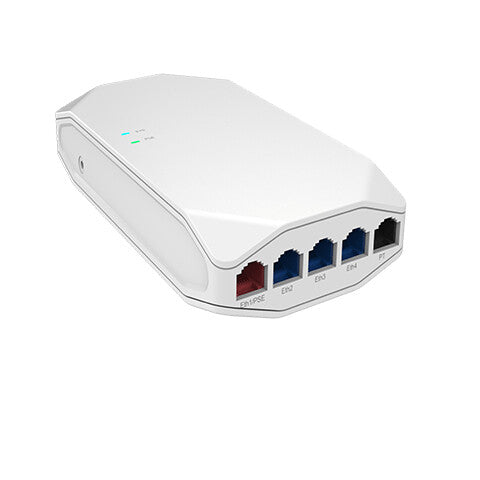

Alcatel-Lucent Enterprise AP1301H 1201 Mbit/s White Power over Ethernet (PoE)
Alcatel-Lucent Enterprise AP1301H 1201 Mbit/s White Power over Ethernet (PoE)

Alcatel-Lucent Enterprise AP1301H 1201 Mbit/s White Power over Ethernet (PoE)

Alcatel-Lucent · MPN: OAW-AP1301H-RW
£256.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £85.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • Delivers enterprise grade security and scales with simplicity.
  • Security is enforced at every step allowing unparalleled scale in network capacity.
  • Cloud enabled with OmniVista Cirrus Network Management as a Service.
  • Powers a secure, resilient, and scalable cloud-based network management platform; Hassle-free network deployment and easy service rollout with advanced analytics.
  • On-premises deployment with OmniVista 2500 Network Management System (NMS).
  • Simplified plug-and-play deployment, zero-touch provisioning, role-based access, a built-in customizable captive portal.
  • Quality of service (QoS) for unified communication apps: supports finely tuned, parameters to differentiate and provide appropriate QoS for each application.
  • RF management: RDA technology automatically assigns channels (DFS) and power settings (TPC) ensures access points stay clear of all radio frequency interference (RFI) sources to deliver reliable, high-performance WLAN.

This versatile Wi-Fi 6 Access Point is designed for vertical industries such as hotels, classrooms, dormitories, clinics, remote office/home office. It provides exceptional connectivity, coverage and performance for end-users.

The OmniAccess Stellar AP1301H is powered with dual radios 2.4Ghz/5Ghz band serving high density Wi-Fi clients. An integrated Bluetooth/Zigbee radio makes it ideal for broad scope of IoT end points and applications like location analytics and building automation.

Specifications

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1201 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.400 to 2.4835; 5.150 to 5.250; 5.250 to 5.350; 5.470 to 5.725; 5.725 to 5.850 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac
Cabling technology10/100/1000Base-T(X)
BluetoothYes
Bluetooth version5.0

Security

Security algorithmsAES, TKIP, WEP, WPA2, WPA3, WPA3-SAE
Show all 35 specificationsShow fewer specifications

Ports & interfaces

Ethernet LAN (RJ-45) ports5
USB 2.0 ports quantity1
USB connector typeUSB Type-C
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
DC voltage range48 V
Power consumption (typical)25 W

Design

PlacementDesk
Product colourWhite
Reset buttonYes
LED indicatorsYes

Antenna

Antenna typeInternal
Antenna direction typeOmni-directional
Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)4.41 dBi

Certificates

CertificationCB Scheme Safety, cTUVus, Wi-Fi CERTIFIED Wi-Fi 6, Passpoint R3, FCC, CE Marked, EN 60601-1-1 & EN 60601-1-2, RoHS, REACH, WEEE, EMI and susceptibility (Class B), 2014/35/EU Low Voltage Directive, 2014/30/EU EMC Directive, 2011/65/EU RoHS Directive, 2014/53/EU Radio Equipment Directive, EN 55032, IEC/EN 60950 and 62368, EN 300 328, EN 301 893, EN 301 489-1, EN 301 489-17, SRRC, CCC

Weight & dimensions

Width86 mm
Depth29 mm
Height162.5 mm
Weight320 g

Packaging content

Quantity per pack1 pc(s)

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
