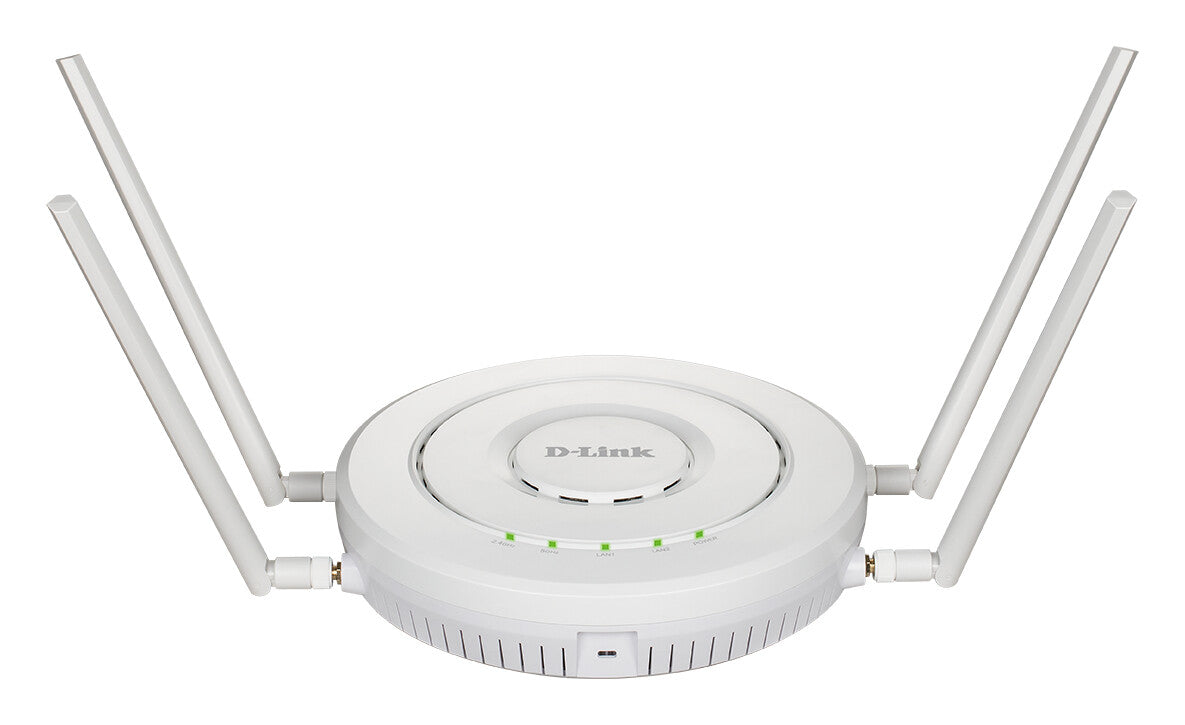

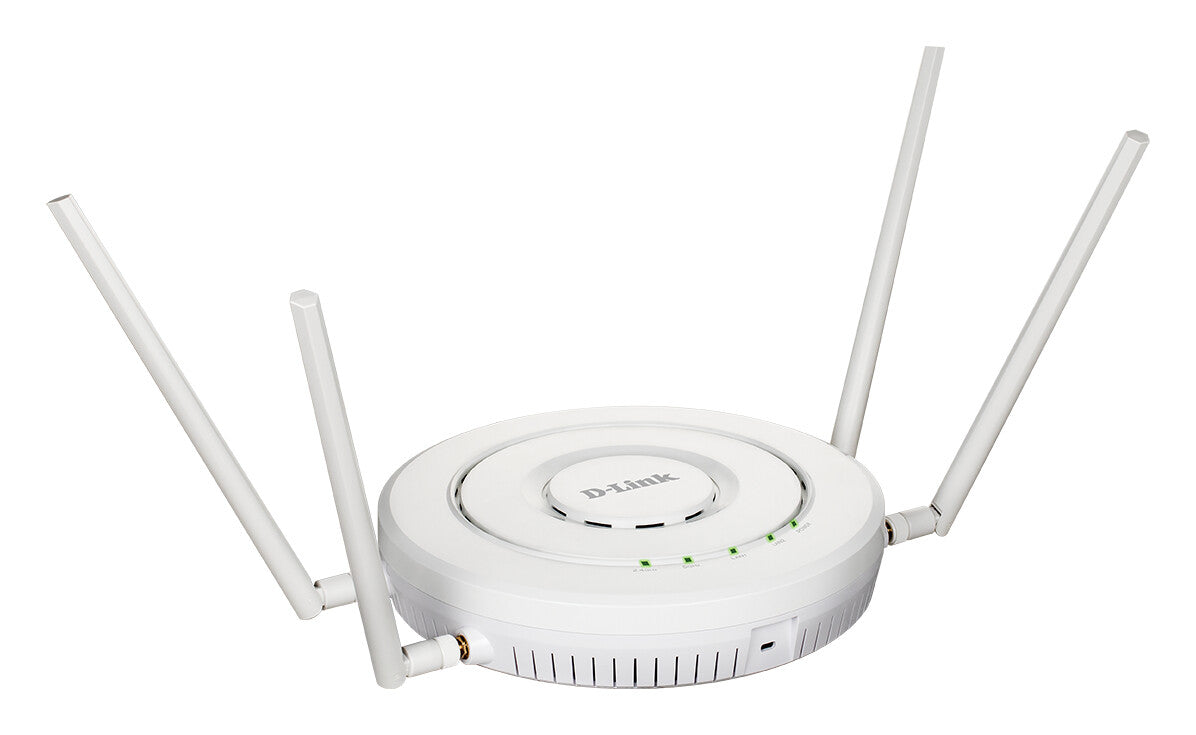

D-Link DWL-8620APE wireless access point 2533 Mbit/s White Power over Ethernet (PoE)
£425.99
Couldn't load pickup availability
- 2.4 GHz
- 5 GHz
- Maximum data transfer rate: 2533 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
- AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
- Power over Ethernet (PoE)
- Antennas quantity: 4
The DWL Series Unified AC Wave 2 Wireless Access Points leverage the full potential of 802.11ac Wave 2 to provide unparalleled connectivity with ultra-high combined data rates. The DWL-8620AP and DWL-8620APE offer a faster combined speed of up to 2,533 Mbps. In addition, the DWL Series supports Link Aggregation3, which allows two Gigabit Ethernet ports to be linked together and act as a single port to double the available bandwidth and maximize the overall throughput of the access point.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 460185 h |
| Quality of Service (QoS) support | Yes |
| Airtime Fairness (ATF) | Yes |
| Band steering | Yes |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO | Yes |
| Automatic channel selection | Yes |
| Channels quantity | 165 channels |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2533 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Auto Wireless Distribution System (WDS) | Yes |
| Number of SSID supported | 32 |
| MAC address filtering | Yes |
| Security algorithms | AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| Protocols | |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
| Management features | |
|---|---|
| Web-based management | Yes |

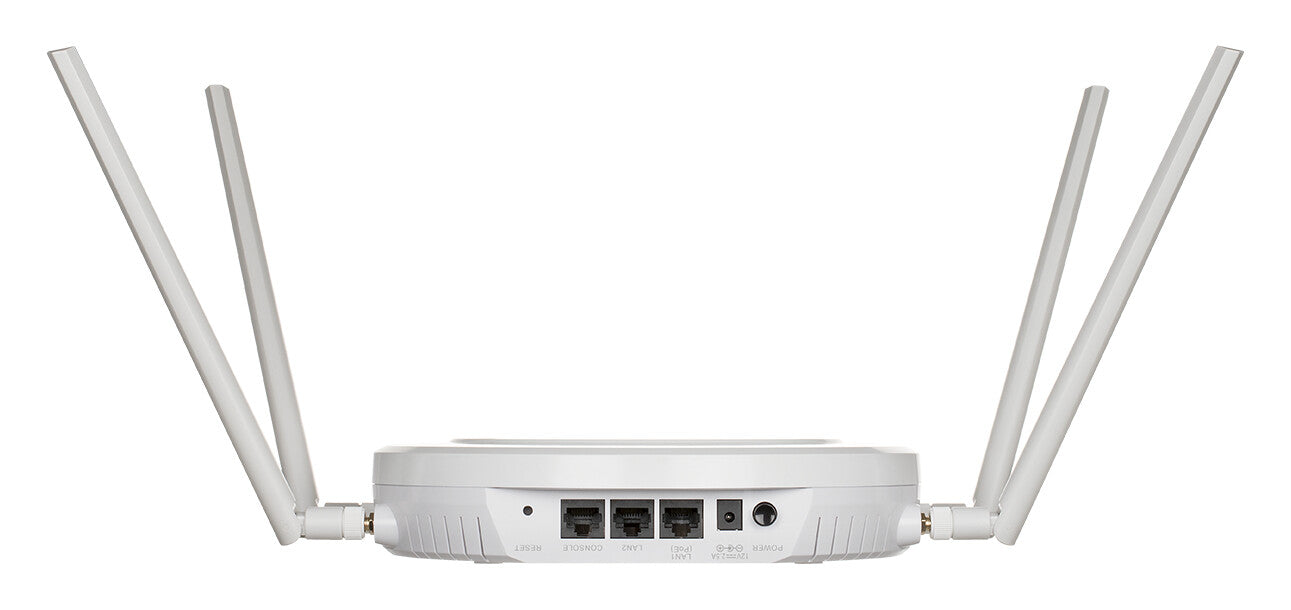

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power consumption (max) | 24.24 W |
| Output current | 2.5 A |
| Output voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Internal | No |
| Reset button | Yes |
| Product colour | White |
| Placement | Ceiling, Wall |
| Antenna | |
|---|---|
| Antennas quantity | 4 |
| Technical details | |
|---|---|
| Shipping (inner) case length | 44.9 cm |
| Shipping (inner) case width | 31.2 cm |
| Shipping (inner) case height | 32.8 cm |
| Shipping (inner) case net weight | 7.5 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 226.3 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 144.7 cm |
| Pallet gross weight (sea) | 276.9 kg |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Products per pallet (sea) | 150 pc(s) |
| Pallet height (sea) | 177.5 cm |
| Shipping (inner) case gross weight | 8.37 kg |
| Certificates | |
|---|---|
| Certification | CE; EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2, EN301489-1, EN301489-17, EN300328, EN301893; FCC; IC; cUL+UL; CB; RCM; NCC; BSMI; |
| Weight & dimensions | |
|---|---|
| Weight | 920 g |
| Height | 47 mm |
| Depth | 220 mm |
| Width | 220 mm |
| Packaging data | |
|---|---|
| Package weight | 1.5 kg |
| Package height | 94 mm |
| Package depth | 296 mm |
| Package width | 295 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
