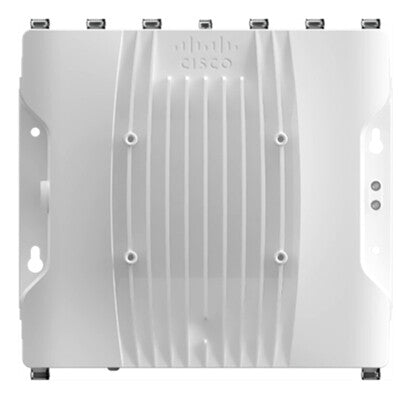

Cisco IW9167EH-E-HZ wireless access point White Power over Ethernet (PoE)
£3,577.99
Couldn't load pickup availability
- 2.4 GHz
- 5 GHz
- 6 GHz
- IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v
- WPA, WPA2, WPA3
- Power over Ethernet (PoE)
The Catalyst IW9167E is designed with external antenna ports and provides flexibility to choose the right antenna based on the use case.
| Features | |
|---|---|
| Dynamic Frequency Selection (DFS) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v |
| 5 GHz | Yes |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| SFP/SFP+ slots quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| DC voltage range | 24 - 48 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Product colour | White |
| Placement | Ceiling, Wall |
| Performance | |
|---|---|
| Flash memory | 1024 MB |
| Internal memory | 2048 MB |
| Certificates | |
|---|---|
| Certification | EN 60529 IP67UL50E Type 4XIEC 60068-2-1 (Cold)IEC 60068-2-2 (Dry Heat)IEC 60068-2-14 (Change of Temperature)IEC 60068-2-30 (Damp Heat)IEC 60068-2-6 (Vibration)IEC 60068-2-27 (Shock)IEC 60068-2-30 (Humidity)IEC 60068-2-32 (Freefall)IEC 60068-3-3 (Seismic)FCC 47 CFR Part 15 Class AEN 55032 Class AVCCI Class AAS/NZ CISPR 32 Class ACISPR 32 Class AICES 003 Class ACNS13438 Class AEN 300 386KS C 9832:2019EN 301 489-1 v2.1.1EN 301 489-17 v2.1.1EN 301 489 – 19EN 55035CISPR35KS C 9835:2019KS X 3124KS X 3126IEC/EN 61000-4-2 - Electrostatic DischargeIEC/EN 61000-4-3 - Radiated RF ImmunityIEC/EN 61000-4-5 - SurgeIEC/EN 61000-4-6 - Conducted RF ImmunityIEC/EN 61000-4-8 - Power Frequency Magnetic FieldIEC 61000-4-9 – Pulsed Magnetic FieldIEC 61000-4-11 - AC Voltage DipsIEC 61000-4-18 - Damped Oscillatory WaveEN-61000-4-29 - DC Voltage DipsClass I Division 2 (C1D2)UL/cUL C1D2Zone 2/Zone 22 (ec+ic+tc)UL 121201CSA C22.2 No 213ANSI/UL 60079-0, -7, -11, -31IECExATEXUKExIEC/EN 60079-0IEC/EN 60079-7IEC/EN 60079-11IEC/EN 60079-31 |
| Weight & dimensions | |
|---|---|
| Weight | 4.2 kg |
| Height | 71 mm |
| Depth | 267 mm |
| Width | 292 mm |
| Packaging content | |
|---|---|
| Bundled software | Cisco IOS ® XE Software Release 17.9.4 or later |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 100% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 100% |
