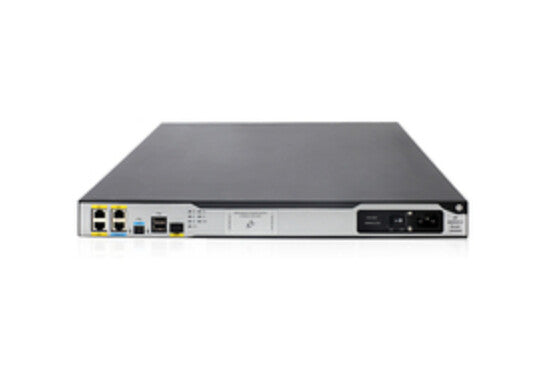

HPE MSR3012 wired router Gigabit Ethernet
Couldn't load pickup availability
- Ethernet WAN
- IEEE 802.3, IEEE 802.3ae, IEEE 802.3u
- Gigabit Ethernet
- Web-based management
- DHCP client DHCP server
The HP MSR3000 router series is a second generation HP Multi-Service Router (MSR G2) that supports HP FlexBranch solution as part HP's overall comprehensive HP FlexNetwork architecture. It features a modular design that delivers unmatched application services for medium to large sized branch offices, while reducing complexity, simplifying configuration, deployment and management. The MSR3000 router series provides a full-featured, resilient routing platform, including IPv6 and MPLS, up to 5 Mpps forwarding capacity and 3.3 Gbps of IPsec VPN encrypted throughput. The MSR3000 router series offer lasting investment protection, and help reduce capital and operating expenses. The MSR3000 series routers also support HP Open Application Platform (OAP) modules to deliver integrated industry leading HP AllianceOne partner applications such as virtualization, UC&C and application optimization capabilities.
- Up to 5 Mpps forwarding perfomance; supports multiple concurrent services
- Open Application Platform for HP AllianceOne applications like WAN acceleration and Microsoft Lync
- Embedded security features with hardware-based encryption, firewall, NAT, and VPNs
- No additional licensing complexity; no cost for advanced features
- Zero-touch solution, with single-pane-of-glass management
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3ae, IEEE 802.3u |
| Wireless LAN features | |
|---|---|
| Dual-band | No |
| DSL features | |
|---|---|
| Internal modem | No |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| USB version | 2.0 |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Protocols | |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Security | |
|---|---|
| MAC address table | 200000 entries |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Features | |
|---|---|
| Heat dissipation | 127 BTU/h |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Processor frequency | 1000 MHz |
| Processor architecture | RISC |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) | No |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply | 100 W |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 5000 m |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 7.15 kg |
| Height | 44.2 mm |
| Depth | 480 mm |
| Width | 440 mm |
