SilverNet SIL iSITE Lite
£147.99
Couldn't load pickup availability
- NXP Industrial Grade Processor
- Global 4G LTE CAT4/3G Network
- Flexible modular design providing Ethernet and Cellular
- Rugged Enclosure with IP30 protection
- Supports 802.11 b/g/n
- Supports SNMP, Modbus Bridging, RIP, OSPF
- 2 x 10/100 BaseT ethernet LAN or 1 x WAN 1 x LAN ports
- Automatic Failover between Ethernet and Cellular
- Supports VPN Tunnels IPsec, iSITE VPN, GRE, L2TP, PPTP, DMVPN
- Supports AAA (Radius, TACACS+, LDAP)
- Embeds hardware watchdog to automatically recover from various failures, ensuring highest level of reliability
- 2 Year Warranty as standard

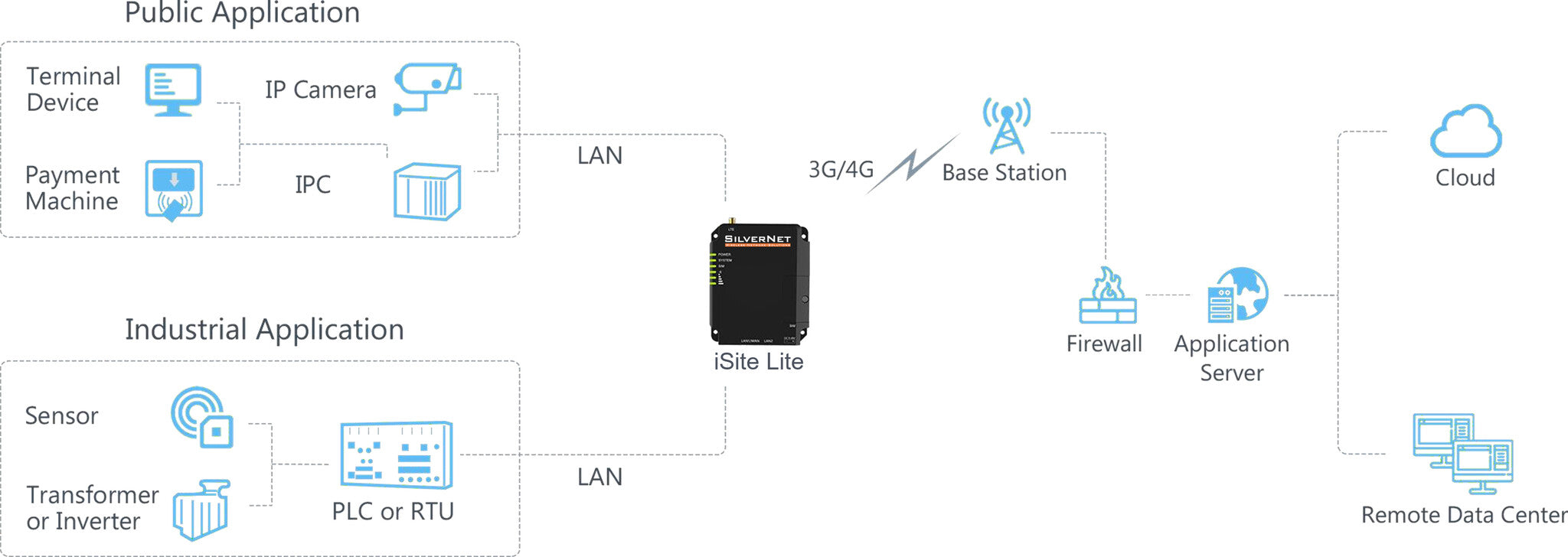

The SIL iSITE Lite is a cost effective, industrial mobile router with embedded intelligent features that are designed for diverse M2M/IoT applications.
Utilising WCDMA, 4G LTE carrier support and drop in connectivity, the iSITE range excels for operators looking to maximize uptime and reliability.
With easy deployment and comprehensive remote device management via SilverNet’s ‘iSITE Hub’, the iSite range is extremely versatile in most IoT/M2M applications.
Combining this with SilverNet's ‘iSITE VPN’, you can create secure
tunnels to your private networks.
The iSITE Lite contains Integrated watchdog and multi link failover detection. It provides stable
communications.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | Yes |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| VPN Passthrough | Yes |
| Static route | Yes |
| Policy-based routing | Yes |
| Dynamic DNS (DDNS) | Yes |
| Automatic channel selection | Yes |
| Load balancing system | Yes |
| Port forwarding | Yes |
| Multicast support | Yes |
| Flow control support | Yes |
| Auto-sensing | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| SIM card type | MicroSIM |
| Mobile network generation | 4G |
| Ports & interfaces | |
|---|---|
| Terminal block port | Yes |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 2 |
| Management features | |
|---|---|
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Bandwidth control | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| System event log | Yes |
| IP address filtering | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| DDoS protection | Yes |
| DoS attack prevention | Yes |
| Access Control List (ACL) | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
| Protocols | |
|---|---|
| Supported network protocols | IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH |
| Management protocols | Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3 |
| Routing protocols | OSPF, RIP-1, RIP-2, VRRP |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| LED indicators | Activity, LAN, Power, System, VPN, WLAN |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| Housing material | Aluminium |
| Product colour | Black |
| Product type | Portable router |
| Packaging content | |
|---|---|
| Antenna included | Yes |
| AC adapter included | Yes |
| Certificates | |
|---|---|
| Certification | CE, FCC, RCMRoHSIEC 61000-4-2 Level 3IEC 61000-4-3 Level 2IEC 61000-4-4 Level 3IEC 61000-4-5 Level 3IEC 61000-4-6 Level 3IEC 61000-4-8 Level 4IEC 61000-4-11 Level 3EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328EN62368-1 |
| Antenna | |
|---|---|
| Antennas quantity | 1 |
| Antenna connector type | RJ-SMA |
| Antenna design | External |
| Features | |
|---|---|
| Electromagnetic compatibility | EN 55032, EN 55035 |
| Firmware upgradeable | Yes |
| Watch Dog function | Yes |
| Flash memory | 128 MB |
| Internal memory | 128 MB |
| Processor frequency | 528 MHz |
| Processor architecture | ARM Cortex A7 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 1.8 W |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Isolation | 1.5 kV |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 110 mm |
| Depth | 90 mm |
| Height | 26 mm |
| Weight | 210 g |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Package type | Box |
| Package weight | 475 g |
| Package height | 65 mm |
| Package depth | 215 mm |
| Package width | 115 mm |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
| Warranty period | 2 year(s) |
