£1,570.99

Stock Available: 0
  • Ethernet WAN SFP WAN 3G/4G USB modem compatibility
  • IEEE 802.3
  • Gigabit Ethernet

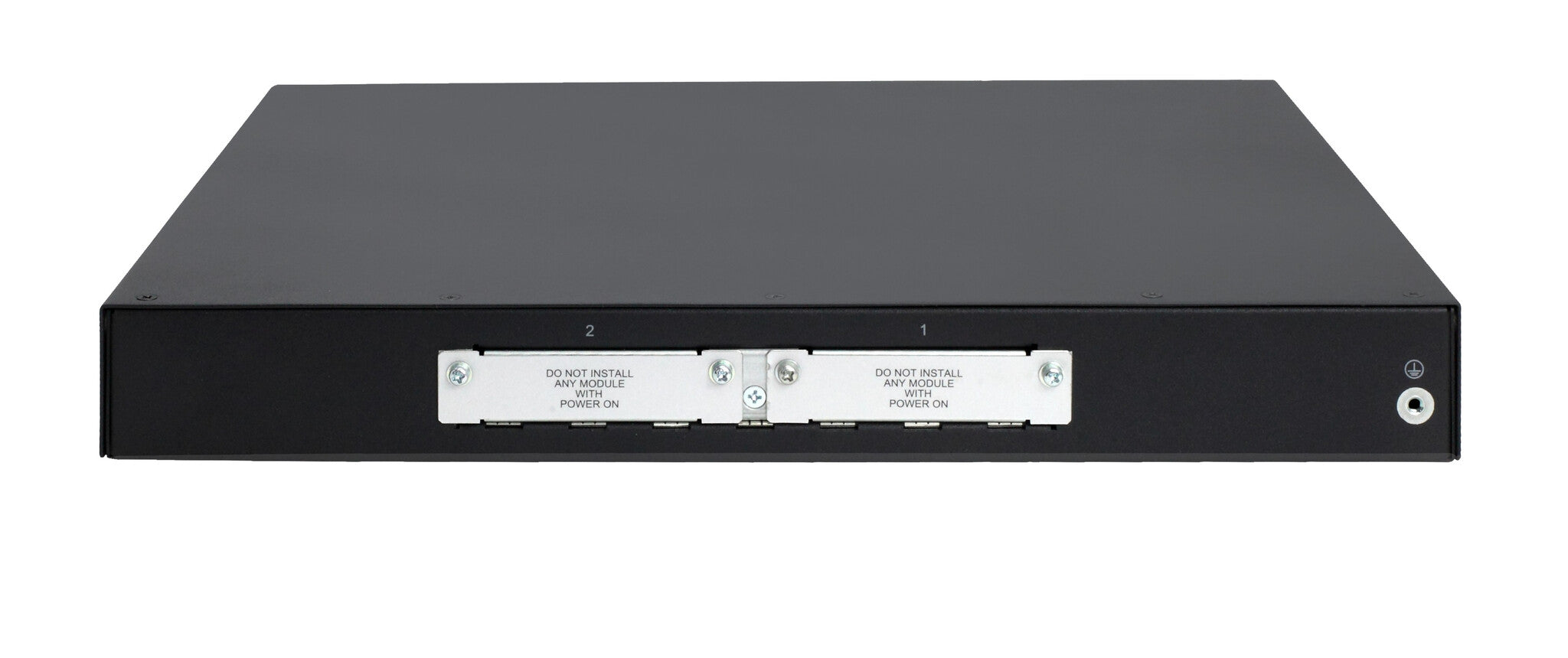

The HPE Networking Comware Router Series MSR1000 delivers high-performance, small branch routing up to 500 Kpps in a cost-optimized modular form factor. Featuring integrated routing, switching, security, and SIP with no additional licensing, you can boost your service delivery while simplifying the management of your corporate WAN. With Comware v7 and a convenient modular design, the HPE Networking Comware Router Series MSR1000 brings enhanced performance and advanced services, as well as a choice of connectivity options to provide flexible, open standards and lasting investment protection with lower CAPEX and OPEX for small-sized branches.

What is new supporting point:
Ethernet Virtual Interconnect (EVI), VXLAN and VPLS enable greater scalability of L2/L3 overlay services and multicast.
Introducing a new SKU R8V33A which is a direct replacement of JG875A.
Up to 500 Kpps IP forwarding; converged high-performance routing, switching, security, voice, and mobility.
Embedded security features with hardware-based encryption, firewall, network address translation (NAT), and VPNs.
Supports OpenFlow that enables integration with mainstream cloud platforms or a third-party controller for flexible network customization and automated management.
Supports HPE Intelligent Resilient Fabric (IRF) technology for plug-and-play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization.

WAN connection
SFP WAN Yes
3G/4G USB modem compatibility Yes
Ethernet WAN Yes
Network
Forwarding rate 0.05 Mpps
Ethernet LAN data rates 1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)
Ethernet interface type Gigabit Ethernet
Networking standards IEEE 802.3
Ports & interfaces
Smart Interface Card (SIC) slots quantity 2
WAN ports quantity 1
Ethernet LAN (RJ-45) ports 4
Security
MAC address table 90000 entries
Features
Heat dissipation 65 BTU/h
Storage media Flash
Built-in processor Yes
Design
Product colour Silver
Power
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power source type AC
Power consumption (max) 30 W
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Weight 4.85 kg
Height 44.2 mm
Depth 300 mm
Width 360 mm
