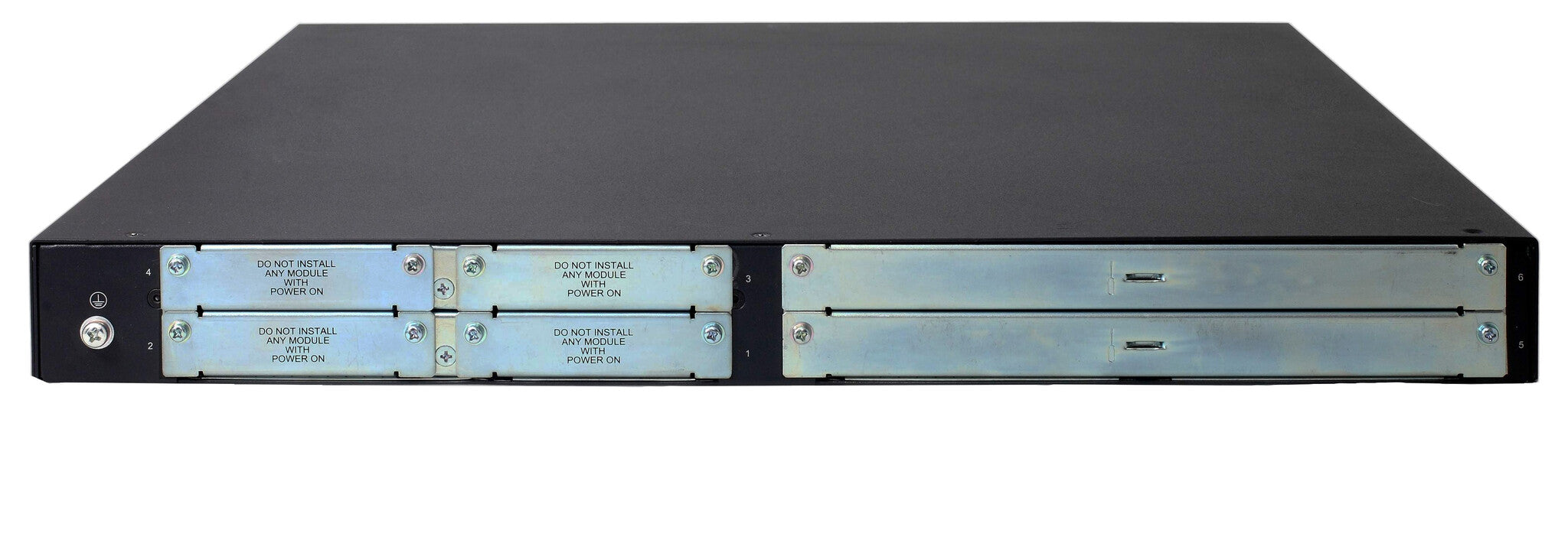

HPE FlexNetwork MSR3024 AC Router
Couldn't load pickup availability
- Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription
- WAN survivability with 4G LTE SIC modules, and flexible power options
- New Serial, GbE and Gig-T SIC modules increase configuration flexibility
- High-density voice modules and channelized POS access to cover
- Additional features such as ADVPN and hierarchical QoS
The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.
What is new supporting point:
High-density voice modules and channelized POS access to cover.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
Additional features such as ADVPN and hierarchical QoS.
| WAN connection | |
|---|---|
| SFP WAN | Yes |
| Network | |
|---|---|
| Forwarding rate | 2.6 Mpps |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3ab |
| Ports & interfaces | |
|---|---|
| Smart Interface Card (SIC) slots quantity | 4 |
| WAN ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 3 |
| Security | |
|---|---|
| MAC address table | 500000 entries |
| Features | |
|---|---|
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1 |
| Mean time between failures (MTBF) | 8760 h |
| Heat dissipation | 168 BTU/h |
| Internal memory type | DDR3 |
| Internal memory | 2048 MB |
| Flash memory | 256 MB |
| Processor frequency | 1000 MHz |
| Built-in processor | Yes |
| Design | |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 240 V |
| Power consumption (max) | 100 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 17.4 kg |
| Height | 44.2 mm |
| Depth | 480 mm |
| Width | 440 mm |
