DrayTek 2767ax VDSL 2.5G + AX3000 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
Couldn't load pickup availability
- VDSL2 or 2.5Gb Ethernet Router with Failover
- 1x 2.5 Gigabit RJ-45 switchable WAN/LAN Port
- 3x Gigabit RJ-45 LAN Ports
- In total 4 (3+1) LAN ports (1 is the WAN/LAN switchable)
- Up to 2.3Gbps Firewall Throughput
- Up to 300Mbps IPsec VPN Throughput
- 16x LAN-to-LAN & Remote Teleworker VPN Tunnels
- AX3000 – Wi-Fi 6 Dual Band Wireless (‘ax’ models)
- SPI Firewall and Content Filtering
- Compatible with VigorACS central management platform
The DrayTek Vigor 2767 is a powerful, future-ready router engineered to deliver secure, reliable, and ultra-fast internet connectivity for small offices, home offices, and SME businesses. Running on DrayOS 5, it combines modern performance with flexible configuration, making it ideal for today’s Superfast Fibre services and tomorrow’s multi-gigabit broadband. A dedicated WAN interface supports VDSL2 and ADSL2+ connection, while a 2.5 Gigabit Ethernet switchable WAN/LAN port provides versatility for FTTP services or as a backup failover. With firewall throughput up to 2.3Gbps, the Vigor 2767 handles demanding workloads such as large file transfers, 4K video streaming, cloud services, and online gaming with ease. Its design ensures smooth, responsive performance across multiple devices, delivering reliable connectivity for both work and entertainment.
| WAN connection | |
|---|---|
| WAN connection type | RJ-11, RJ-45, USB |
| 3G/4G USB modem compatibility | Yes |
| SIM card slot | No |
| DSL WAN | Yes |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| VPN support | IPsec IKEv1, IKEv2, IKEv2 EAPIPsec-XAuthOpenVPNWireGuardEasyVPN - New! |
| Internet connection backup | Yes |
| VPN Passthrough | Yes |
| VPN tunnels quantity | 16 |
| Wireless Distribution System (WDS) bridge | Yes |
| Number of guest networks (2.4 GHz) | 8 |
| Number of guest networks (5 GHz) | 8 |
| Static route | Yes |
| SSID-based VLAN assignment | Yes |
| Policy-based routing | Yes |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Multicast support | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000/2500Base-T |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| Mobile network generation | Not supported |
| DSL features | |
|---|---|
| Internal modem | Yes |
| VDSL2 | Yes |
| ADSL2+ | Yes |

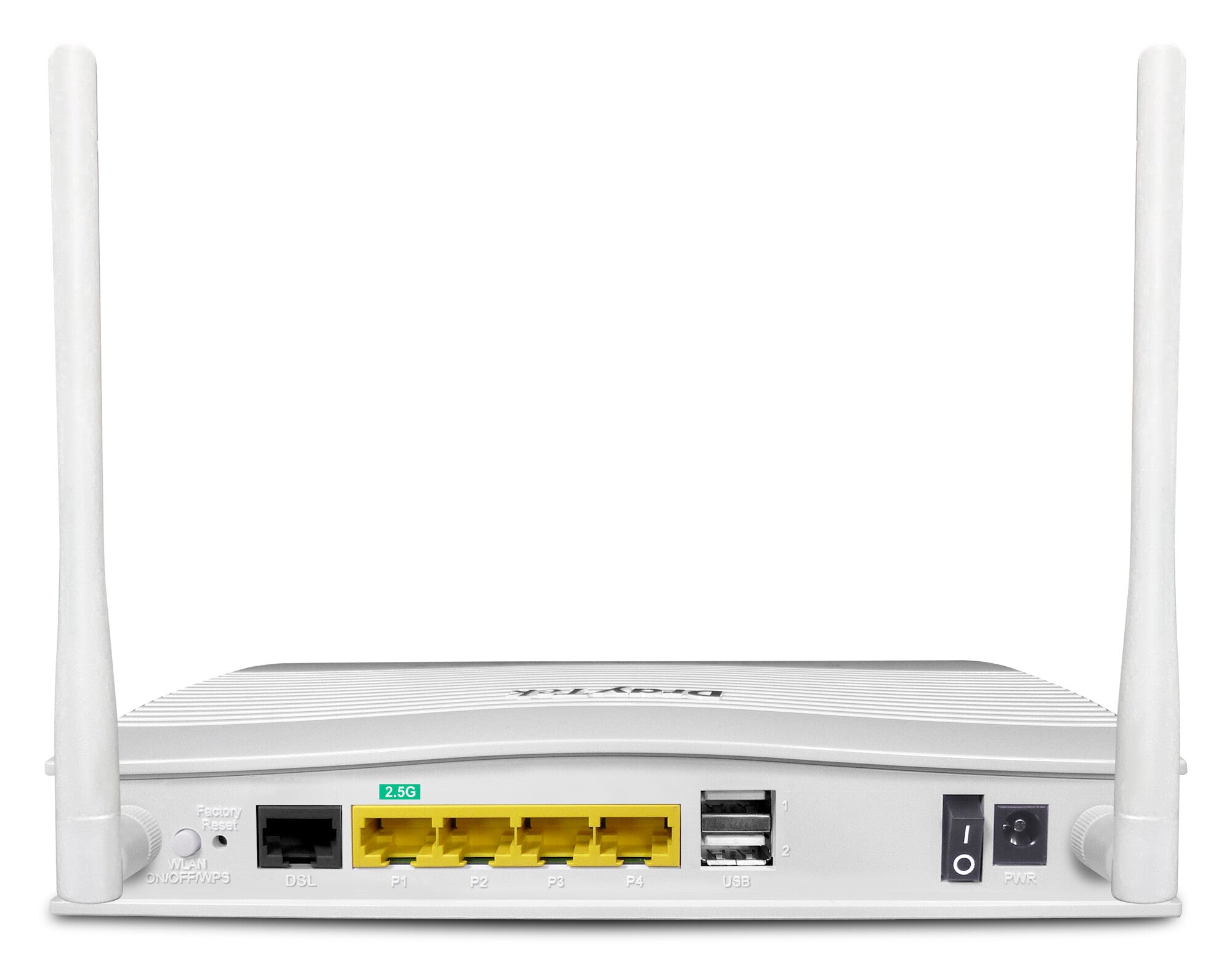

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| RJ-11 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| MU-MIMO technology | Yes |
| WPS push button | Yes |
| Intelligent Mesh technology | Yes |
| Reset button | Yes |
| Wake-on-LAN ready | Yes |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Bandwidth control | Yes |
| Web-based setup wizard | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| Network address translation (NAT) | Yes |
| DMZ support | Yes |
| IGMP snooping | Yes |
| System event log | Yes |
| URL filtering | Yes |
| IP address filtering | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| DDoS protection | Yes |
| Parental control | Yes |
| DoS attack prevention | Yes |
| Schedule access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Firewall | Yes |
| Security algorithms | 3DES, AES, SSH, HTTPS, IPSec, WPA2-Enterprise, DES, OWE, WPA2-Personal, WEP, WPA3-Enterprise, WPA3-Personal, WPA-Enterprise, WPA-Personal |
| Protocols | |
|---|---|
| Routing protocols | BGP, RIPng, RIP-1, OSPF, RIP-2 |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |

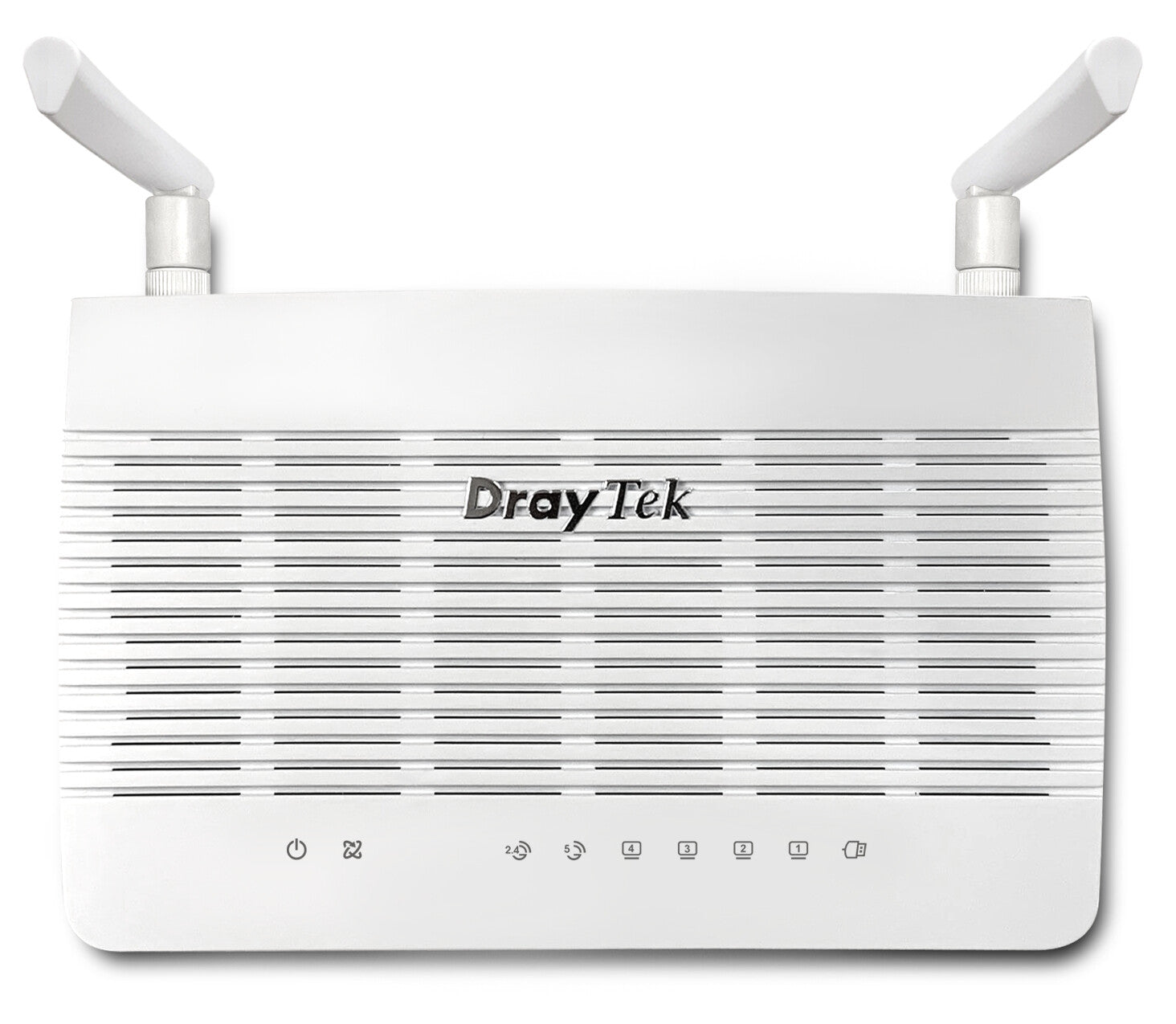

| LED indicators | DSL, LAN, Power, USB |
| Wall mountable | Yes |
| Housing material | Plastic |
| Product colour | White |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Quick installation guide | Yes |
| Antenna included | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Antenna | |
|---|---|
| Detachable antenna(s) | Yes |
| Antenna design | Internal & external |
| Features | |
|---|---|
| Firmware upgradeable | Yes |
| Operating system installed | DrayOS 5 |
| Power | |
|---|---|
| External power adapter | Yes |
| Power consumption (typical) | 21.6 W |
| Weight & dimensions | |
|---|---|
| Width | 207 mm |
| Depth | 131 mm |
| Height | 42 mm |
| Weight | 506.4 g |
| Logistics data | |
|---|---|
| Warranty period | 2 year(s) |
