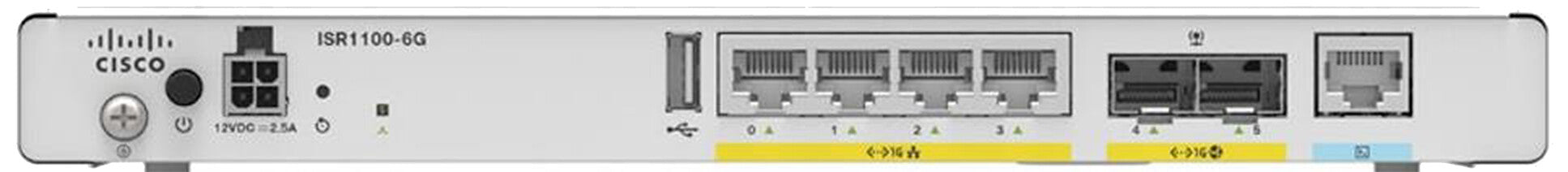

Cisco ISR1100X-6G wired router Gigabit Ethernet Grey
Couldn't load pickup availability
- Ethernet WAN
- IEEE 802.1Q
- Gigabit Ethernet
- Web-based management
- DHCP client DHCP server
- 256-bit AES, SHA-1, SHA-2
Part of the Cisco® 1000 Series Integrated Services Routers (ISR), the ISR 1100 Series and ISR 1100X Series are powered by Viptela® operating system or IOS XE SD-WAN operating system. These devices combine WAN and comprehensive security in a wired high-performance platform. The ISR 1100 Series and ISR 1100X Series combine an enterprise grade platform with best-in-class SD-WAN. The ISR 1100 Series come with 4GB DRAM, whereas the ISR 1100X Series offer 8GB DRAM
Cisco Software-Defined WAN (SD-WAN) is a cloud-first architecture that provides unparalleled visibility across your WAN, optimal connectivity for end users, and the most comprehensive security platform to protect your network. Cisco SD-WAN provides transport independence, rich network, and security services as well as endpoint flexibility.
The ISR 1100 Series and ISR 1100X Series routers are delivered as platforms that sit at the perimeter of a site, such as a remote office, branch office, campus, or data center. They participate in establishing a secure virtual overlay network over a mix of any WAN transports.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Traffic control | Yes |
| Multicast support | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1Q |
| Mobile network | |
|---|---|
| Mobile network generation | Not supported |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 1 |
| Installed SFP modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 4 |
| Protocols | |
|---|---|
| Supported protocols | IPv4, IPv6, static routes, Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast Sparse Mode (PIM SM), PIM Source-Specific Multicast (SSM), Cisco Discovery Protocol, Internet Key Exchange (IKE), Access Control Lists (ACL), Dynamic Host Configuration Protocol (DHCP), DNS, VRRP, RADIUS, Authentication, Authorization, and Accounting (AAA), IPsec, Bidirectional Forwarding Detection (BFD), AppQoE, SNMP, Software defined Application Visibility and Control (SD-AVC), Layer 3 VPN, IPv6 for transport- side, symmetric NAT, NAT pools, NAT/PAT, split DNS,TCP optimization(BBR), 802.1Q, OMP, native VLAN, DTLS/TLS, DDOS protection, control plane protection, classification, prioritization, low latency queuing, remarking, shaping, scheduling, policing, IGMP v1/v2, PIM, service advertisement and insertion policy, SNMP, NTP, DNS client, Dynamic Host Configuration Protocol (DHCP), DHCP client, DHCP relay, syslog, SSH, SCP, Cflowd |
| DHCP client | Yes |
| DHCP server | Yes |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Firewall | Yes |
| Security algorithms | 256-bit AES, SHA-1, SHA-2 |
| Features | |
|---|---|
| Internal memory type | DRAM |
| Internal memory | 4000 MB |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Grey |
| Power | |
|---|---|
| Output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Power source type | DC |
| Power supply | 30 W |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.21 kg |
| Height | 28 mm |
| Depth | 178 mm |
| Width | 259 mm |
