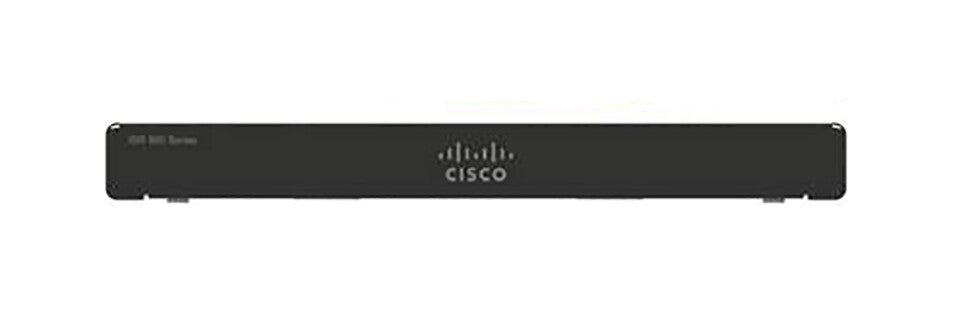

Cisco C926-4P wired router Black
Couldn't load pickup availability
- Ethernet WAN
- IEEE 802.1x
- ADSL2+ VDSL2
- DHCP client DHCP server
- 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SSL/TLS
The Cisco 900 Series ISRs deliver integrated security and threat defense, protecting networks from both known and new Internet vulnerabilities and attacks. These powerful, fixed-configuration routers provide secure broadband and Metro Ethernet connectivity. Service providers offering managed Ethernet WAN services can deploy them in customer locations as CPE. Centralized and remote management capabilities are available through web-based tools and Cisco IOS® Software for full visibility and control of network configurations at the remote site.
The 900 Series ISRs simplify the deployment of Ethernet WAN services, with end-to-end Operations, Administration, and Maintenance (OA&M), Service-Level Agreement (SLA) monitoring and verification, and configuration management.
The Cisco 900 Series ISRs come with a 4-port managed switch, providing LAN ports to connect multiple devices. Figures 1 and 2 show the C921-4P and C926-4P models.
| WAN connection | |
|---|---|
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Differentiated services (DiffServ) supported | Yes |
| Number of users | 50 user(s) |
| Auto MDI/MDI-X | Yes |
| Multicast support | Yes |
| VLAN support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| DSL features | |
|---|---|
| VDSL2 | Yes |
| ADSL2+ | Yes |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| USB version | 2.0 |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Protocols | |
|---|---|
| Routing protocols | BGP, EIGRP, OSPF |
| DHCP client | Yes |
| DHCP server | Yes |
| Security | |
|---|---|
| Network address translation (NAT) | Yes |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Firewall | Yes |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SSL/TLS |
| Features | |
|---|---|
| Safety | IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1 |
| Internal memory type | DRAM |
| Internal memory | 1024 MB |
| Flash memory | 2000 MB |
| Design | |
|---|---|
| Product colour | Black |
| Power | |
|---|---|
| Output voltage | 12 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power source type | AC |
| Power consumption (typical) | 30 W |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4570 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.2 kg |
| Height | 28 mm |
| Depth | 177.8 mm |
| Width | 259.1 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
