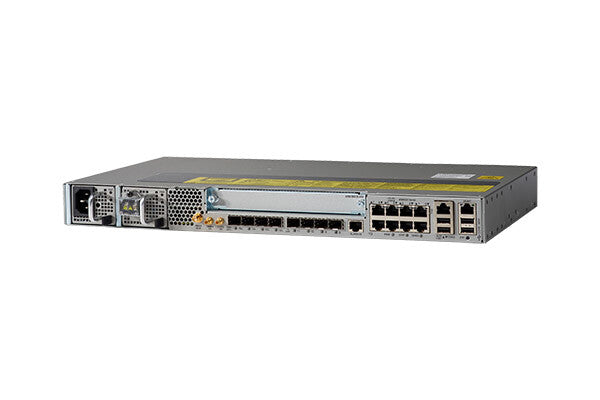

Cisco ASR 920-12SZ-IM wired router Grey
Couldn't load pickup availability
- Ethernet WAN
- IEEE 802.3x
- Web-based management
- IPSec
The Cisco® ASR 920 Series Aggregation Services Router is a full-featured converged access platform designed for the cost-effective delivery of wireline and wireless services. These temperature-hardened, high-throughput, small-form-factor,low-power-consumption routers are optimized for mobile backhaul and business applications. ASR 920 routers provide a comprehensive and scalable feature set, supporting both Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in a compact package. They also allow service providers to deploy Multiprotocol Label Switching (MPLS)-based VPN services from within the access layer.
ASR 920 series router offers key Carrier Ethernet features that simplify network operation. You can use them for premium services with enhanced service-level agreements (SLAs). And an optional service-activation model supports incremental growth and makes these routers flexible and cost-effective.
| WAN connection | |
|---|---|
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Switching capacity | 64 Gbit/s |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3x |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 2 |
| USB ports quantity | 2 |
| Number of switching fabric slots | 8 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 8 |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Security algorithms | IPSec |
| Features | |
|---|---|
| Electromagnetic compatibility | FCC CFR47 Part 15 Class A |
| Safety | UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005 |
| Mean time between failures (MTBF) | 407230 h |
| Hot-swap | Yes |
| Design | |
|---|---|
| LED indicators | Yes |
| Wall mountable | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Grey |
| Antenna | |
|---|---|
| Antenna type | Not supported |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power source type | AC, DC, PoE |
| Power consumption (typical) | 130 W |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4570 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.83 kg |
| Height | 44 mm |
| Depth | 286.5 mm |
| Width | 444.5 mm |
