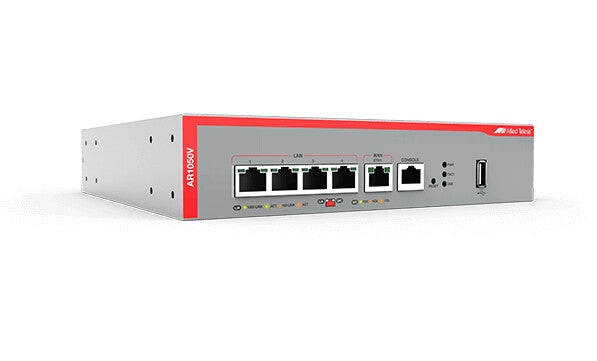

Allied Telesis AT-AR1050V-60 wired router Gigabit Ethernet Grey
Couldn't load pickup availability
- A sophisticated Intrusion Detection and Prevention System (IDS/IPS) provides monitoring, analysis and logging of suspicious events that occur on a network
- URL filtering enables HTTP or HTTPS access to particular websites to be allowed (whitelist) or blocked (blacklist) with user-defined lists
- IPSec VPNs enable secure connections between offices
- Easy-start wizards for easy Internet and VPN connectivity
- Autonomous Management Framework™ (AMF) compatibility automates device back-up for plug-and-play recovery
Allied Telesis Secure Virtual Private Network (VPN) Routers are the ideal secure gateway for modern businesses. Integrated firewall and VPN functionality is combined with routing and switching, providing an innovative solution that is easy to use and very secure.
As businesses adapt to faster paced operations, with increasing amounts of data, and the need to access company resources from outside the office, the demand for high performance VPN connectivity becomes more urgent.
The AR1050V features comprehensive security and networking capabilities, meeting the demands of distributed businesses that require multi-site VPNs.
Secure Remote VPNs
The AR1050V supports IPSec site-to-site VPNs for connecting branch offices to a central office, providing employees company-wide with consistent access to the corporate network.
Easy to manage
The AR1050V runs the advanced AlliedWare Plus™ fully featured operating system, with an industry standard CLI. The Graphical User Interface (GUI) includes wizards for easy Internet connectivity and VPN creation, while the dashboard enables monitoring of traffic throughput and security status. Configuration of security zones, networks and hosts, and rules to limit and manage traffic, provides a consistent approach to policy management.
| WAN connection | |
|---|---|
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Policy-based routing | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Management features | |
|---|---|
| Reset button | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Protocols | |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Security | |
|---|---|
| VPN tunnels quantity | 30 |
| System event log | Yes |
| Firewall | Yes |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, IPSec, SHA-1, SHA-256, SNMP, SNMPv3, SSH, SSH-2 |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Features | |
|---|---|
| Certification | UL, UL EU, CE |
| Electromagnetic compatibility | EN55032 B, FCC B, VCCI B |
| Safety | UL62368-1, EN60950-1, CAN/CSA-C22.2 No.60950-1, AS/NZS 60950-1 |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Storage media | Flash |
| Processor frequency | 1000 MHz |
| Built-in processor | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | Status |
| Product colour | Grey |
| Power | |
|---|---|
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 90 - 264 V |
| Power source type | AC |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.3 kg |
| Height | 44 mm |
| Depth | 210 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 1.9 kg |
| Package height | 109 mm |
| Package depth | 256 mm |
| Package width | 265 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
